72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 412800000 - 412999999) Fuel Line Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

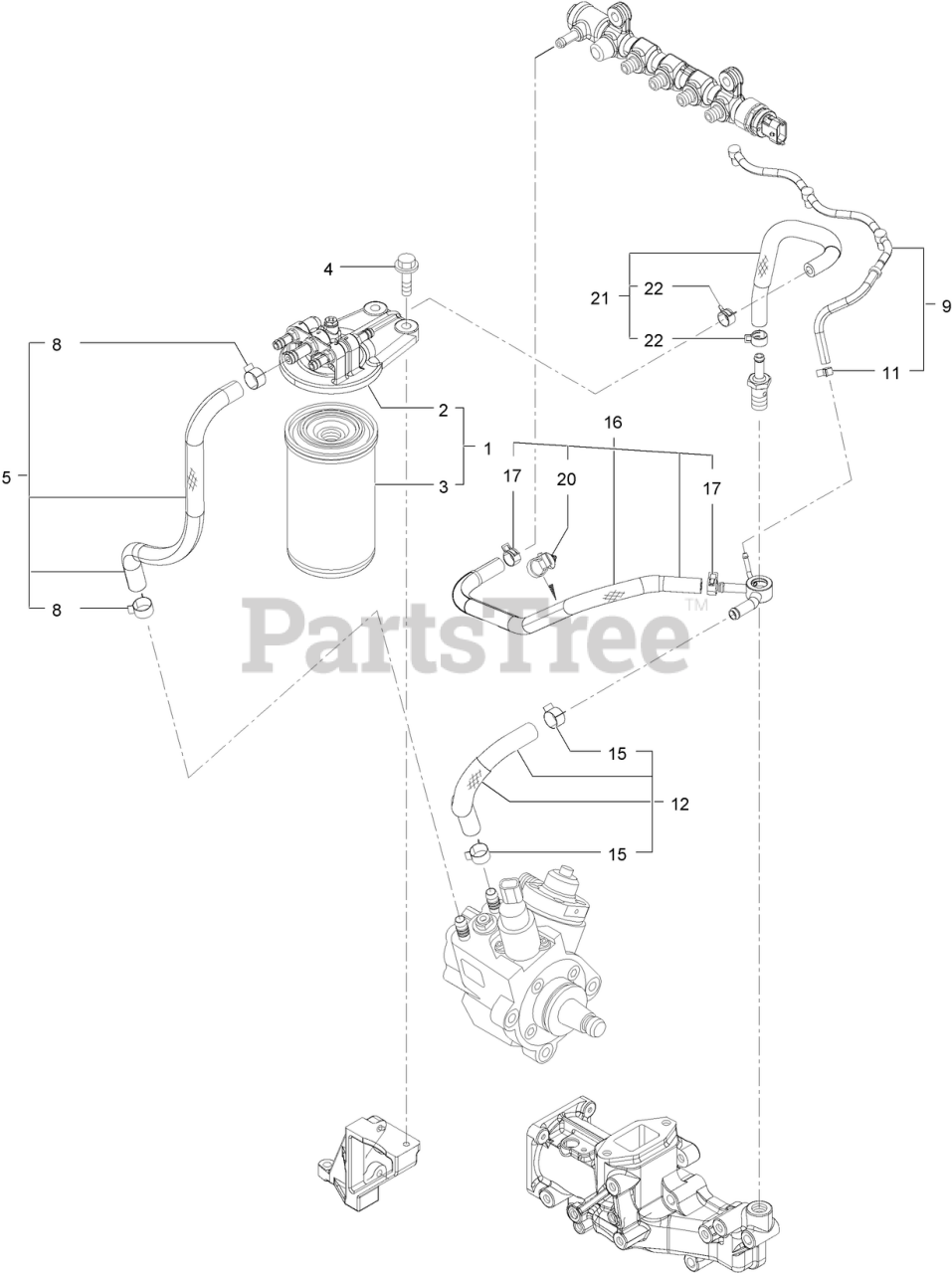

Fuel Line Assembly Parts Diagram

  • Title
1

Toro 139-6016

FUEL/OIL FILTER ASM

$159.99

$

Usually ships in 3-6 days

0

2

Toro 127-3076

FUEL/OIL FILTER BRACKET ASM

$119.99

$

Usually ships in 3-6 days

0

3

Toro 139-6017

FILTER-FUEL

$67.99

$

Usually ships in 3-6 days

0

4

$4.49

$

Usually ships in 3-6 days

0

5

Toro 127-3077

FUEL PIPE ASM

$100.99

$

Usually ships in 3-6 days

0

8

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

9

Toro 135-4023

PIPE ASM-FO RETURN

$315.99

$

Usually ships in 3-6 days

0

11

Toro 127-3172

CLAMP-HOSE

$6.99

$

Usually ships in 3-6 days

0

12

Toro 127-3078

FUEL PIPE ASM

$129.99

$

Usually ships in 3-6 days

0

15

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

16

Toro 127-3817

FUEL PIPE ASM

$165.99

$

Usually ships in 3-6 days

0

17

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0

20

Toro 127-3087

BAND-CLIP

$2.99

$

Usually ships in 3-6 days

0

21

Toro 127-3079

FUEL PIPE ASM

$94.99

$

Usually ships in 3-6 days

0

22

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0
