Toro 72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 412436443) Hydraulic Assembly Parts Lookup with Diagrams

1

Toro 142-5034

HYD RESERVOIR ASM

$957.99

$

Usually ships in 3-6 days

2

Toro 126-6776

HOSE

$25.99

$

Usually ships in 3-6 days

3

Toro 126-6767

HOSE-RETURN

$19.99

$

Usually ships in 3-6 days

4

Toro 126-6768

HOSE-RETURN

$23.99

$

Usually ships in 3-6 days

5

Toro 126-6778

HOSE

$14.99

$

Usually ships in 3-6 days

6

Toro 126-6766

HOSE

$7.49

$

Usually ships in 3-6 days

7

Toro 126-8688

TUBE ASM

$193.99

$

Usually ships in 3-6 days

8

Toro 142-5180

HOSE ASM-HYD HP

$63.99

$

Usually ships in 3-6 days

9

Toro 126-6774

HOSE-SUCTION

$25.99

$

Usually ships in 3-6 days

10

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

11

Toro 126-7547

ROD-SUPPORT, HYD TANK

$23.99

$

Usually ships in 3-6 days

12

Toro 126-7546

ROD-SUPPORT, HYD TANK

$29.99

$

Usually ships in 3-6 days

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

14

Toro 112-6365

DIPSTICK

$95.99

$

Usually ships in 3-6 days

15

Toro 94-8166

O-RING

$4.99

$

Usually ships in 3-6 days

16

Toro 93-7498

PLUG-PLASTIC

$28.99

$

In Stock, only 3 left!

17

Toro 340-155

FITTING-STRAIGHT

$32.99

$

Usually ships in 3-6 days

17:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

17:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

18

Toro 340-7

FITTING-STRAIGHT

$15.99

$

In Stock, Qty 13

18:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

18:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

19

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

19:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

19:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

20

Toro 340-105

FITTING-ELBOW, 90 DEG

$46.99

$

In Stock, only 1 left!

20:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

20:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

21

Toro 103-1912

ADAPTER-STRAIGHT

$23.99

$

Usually ships in 3-6 days

21:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

22

Toro 87-8170

FITTING-90

$51.99

$

Usually ships in 3-6 days

22:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

23

Toro 354-95

FITTING-STRAIGHT

$7.99

$

Usually ships in 3-6 days

24

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

25

Toro 68-6150

BREATHER

$30.99

$

In Stock, only 2 left!

26

Toro 126-8684

HOSE ASM

$62.99

$

In Stock, only 2 left!

27

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

27:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

27:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

28

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

29

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

30

Toro 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

31

Toro 142-5791-03

MOTOR MOUNT, L [BLACK]

$352.99

$

Usually ships in 3-6 days

32

Toro 142-5790-03

MOTOR MOUNT, R [BLACK]

$352.99

$

Usually ships in 3-6 days

33

Toro 1-513435

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

34

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 3 left!

35

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 17

36

Toro 126-7841

CYLINDER-LIFT

$580.99

$

Usually ships in 3-6 days

36:1

Toro 142-2767

KIT, CYL REPAIR

Note: Not illustrated

$120.99

$

Usually ships in 3-6 days

37

Toro 142-8862

VALVE ASM-LIFT AND FOLD

$1791.99

$

Usually ships in 3-6 days

38

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 11

39

Toro 321-28

SCREW-HH

$5.49

$

Usually ships in 3-6 days

40

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

41

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

42

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

43

Toro 126-8692

FITTING-HYD, STRAIGHT

$21.99

$

Usually ships in 3-6 days

43:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

43:2

Toro 237-21

O-RING

$0.99

$

In Stock, only 3 left!

44

Toro 126-8683

HOSE ASM

$72.99

$

Usually ships in 3-6 days

45

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 12

46

Toro 142-5548

PLANETARY ASM-11.96:1

$2372.99

$

Usually ships in 3-6 days

47

Toro 142-5691

MOTOR-HYD, PISTON, 30CC

$1620.99

$

Usually ships in 3-6 days

48

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

48:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

48:2

Toro 237-21

O-RING

$0.99

$

In Stock, only 3 left!

49

Toro 340-8

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

49:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

49:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

50

Toro 142-5611

HOSE-HP

$124.99

$

Usually ships in 3-6 days

51

Toro 142-5612

HOSE-HP

$124.99

$

Usually ships in 3-6 days

52

Toro 142-6631

HOSE ASM-HYDLPTEE

$125.99

$

Usually ships in 3-6 days

53

Toro 142-6640

HOSE ASM-HYD HP TEE

$125.99

$

Usually ships in 3-6 days

54

Toro 142-6639

HOSE ASM-HYD HP TEE

$135.99

$

Usually ships in 3-6 days

55

Toro 142-5768

HOSE ASM-HYDLP

$65.99

$

Usually ships in 3-6 days

56

Toro 142-3892

VALVE-HYD, BRK-2SPD

$577.99

$

Usually ships in 3-6 days

57

Toro 340-82

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 2 left!

57:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

57:2

Toro 237-21

O-RING

$0.99

$

In Stock, only 3 left!

58

Toro 340-137

FITTING

$48.99

$

Usually ships in 3-6 days

58:1

Toro 237-21

O-RING

$0.99

$

In Stock, only 3 left!

58:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

59

Toro 340-138

FITTING-HYD, 45 DEG

$39.99

$

Usually ships in 3-6 days

59:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

59:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

60

Toro 33106-025

SCREW-HHF

$

Not available 

61

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

61:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

61:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

62

Toro 237-166

O-RING

$11.99

$

Usually ships in 3-6 days

63

Toro AUH339762

TEE

$150.99

$

Usually ships in 3-6 days

64

Toro 142-5778

HOSE ASM-HYD HP

$71.99

$

Usually ships in 3-6 days

65

Toro 142-6632

HOSE-HP

$124.99

$

Usually ships in 3-6 days

66

Toro 142-5789

HOSE ASM-HYD HP

$50.99

$

Usually ships in 3-6 days

67

Toro 9202424

See Supercession: 920242

(Superseded to 920242) 

$6.99

$

Usually ships in 3-6 days

68

Toro 94-2702

SCREW-HH

$8.99

$

Usually ships in 3-6 days

69

Toro 340-99

FITTING-HYD, 90 DEG

$42.99

$

Usually ships in 3-6 days

69:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

69:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

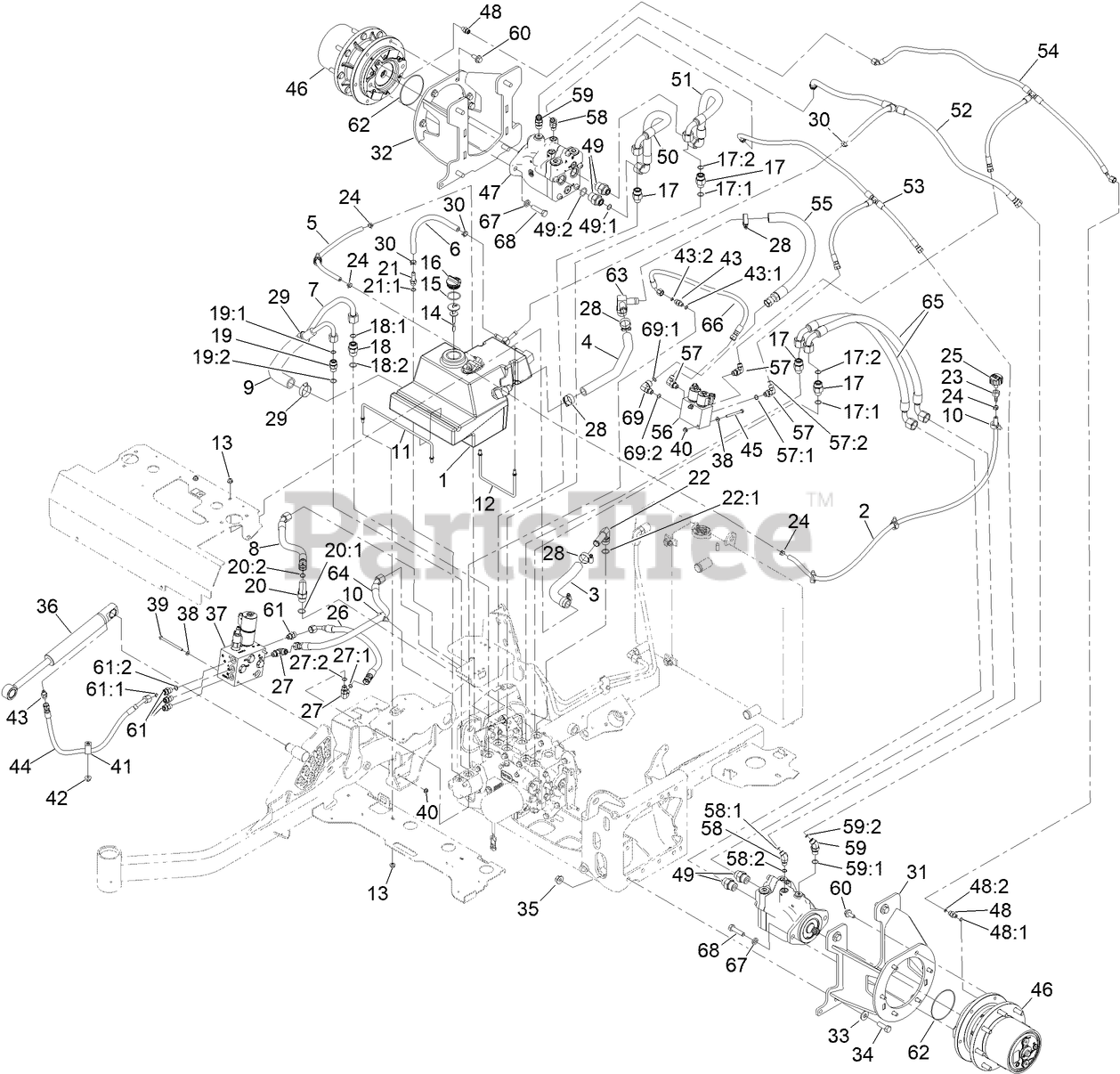

72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 412436443) Hydraulic Assembly Parts Diagram

Hydraulic Assembly Parts Diagram
