72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 412436443) Cooling Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

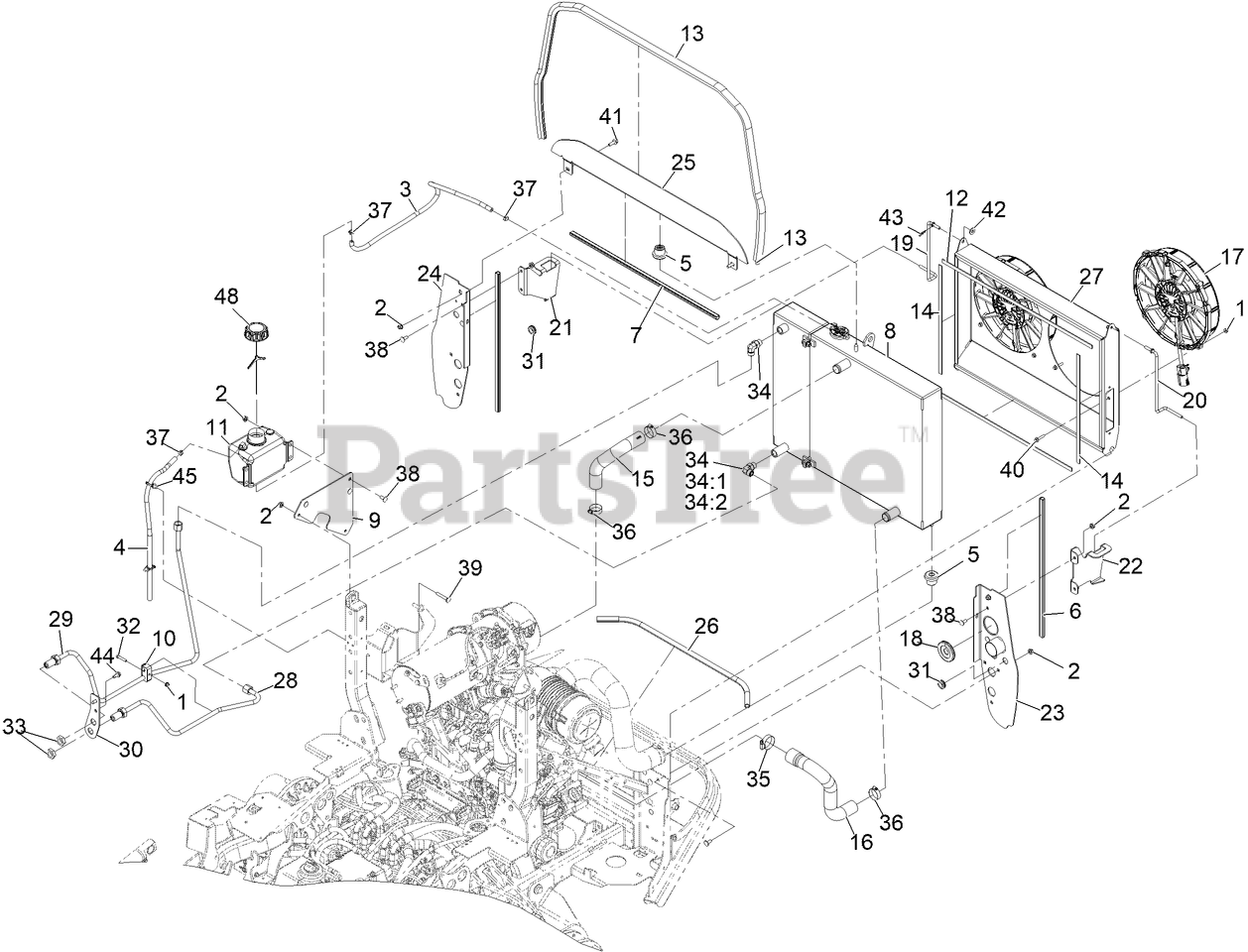

Cooling Assembly Parts Diagram

  • Title

1

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 109-0284

HOSE-FUEL

$12.99

$

Usually ships in 3-6 days

0

4

Toro 110-4103

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

5

Toro 119-1422

MOUNT-ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

6

Toro 119-1426

SEAL-BULB

$14.99

$

Usually ships in 3-6 days

0

7

Toro 119-1427

SEAL-BULB

$16.99

$

Usually ships in 3-6 days

0

8

Toro 121-3330

COOLING ASM

$2007.99

$

Usually ships in 3-6 days

0

9

Toro 126-9178-03

BRACKET-BOTTLE

$21.99

$

Usually ships in 3-6 days

0

10

Toro 142-7206

FOAM-ADHESIVE BACKED

$

$

Not available

11

Toro 135-0641

CLAMP-TWIN

$6.49

$

Usually ships in 3-6 days

0

12

Toro 135-4692

TANK-OVERFLOW, W/CAP

$84.99

$

Usually ships in 3-6 days

0

13

Toro 142-4136

SEAL-BULB

$89.99

$

Usually ships in 3-6 days

0

14

Toro 142-3191

FOAM-ADHESIVE BACKED "

$

$

Currently unavailable

15

Toro 142-3192

HOSE-RADIATOR, UPPER

$22.99

$

Usually ships in 3-6 days

0

16

Toro 142-3193

HOSE-RADIATOR, LOWER

$30.99

$

Usually ships in 3-6 days

0

17

Toro 142-3375

FAN-12", 12V, ELECTRIC, REVERSING

$811.99

$

Usually ships in 3-6 days

0

18

Toro 142-6616

GROMMET-SPLIT, 2.38 GD X 0.14 GW X 0.82

$7.99

$

Usually ships in 3-6 days

0

19

Toro 142-4154

WIRE FORM-FAN SHROUD, R

$

$

Not available

20

Toro 142-4155

WIRE FORM-FAN SHROUD, L

$

$

Not available

21

Toro 142-4156-03

BRACKET-SHROUD LATCH RIGHT

$

$

Currently unavailable

22

Toro 142-4157-03

BRACKET-SHROUD LATCH LEFT

$

$

Currently unavailable

23

Toro 142-5136-03

SUPPORT-RADIATOR, LH [BLACK]

$91.99

$

Usually ships in 0 days

0

24

Toro 142-5138-03

BRACKET-COOLING, RH

$61.99

$

Usually ships in 0 days

0

25

Toro 142-5139-03

BRACKET-COOLING, TOP

$91.99

$

Usually ships in 0 days

0

26

Toro 142-5156

SEAL-BULB

$12.99

$

Usually ships in 3-6 days

0

27

Toro 142-5161-03

FAN SHROUD

$

$

Currently unavailable

28

Toro 142-5174

HYDRAULIC TUBE ASM

$62.99

$

Usually ships in 3-6 days

0

29

Toro 142-5175

HYDRAULIC TUBE ASM

$70.99

$

Usually ships in 3-6 days

0

30

Toro 142-5181-03

BRACKET-BULKHEAD

$6.49

$

Usually ships in 0 days

0

31

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

32

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

33

Toro 340-127

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

34

Toro 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

34:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

34:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

35

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

36

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

37

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

38

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

40

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

41

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

42

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

44

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

45

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

48

Toro 135-4693

CAP-W/TETHER

$22.99

$

In Stock, only 4 left!

0
