72116 (270-HE) - Toro Lawn & Garden Tractor (SN: 230000001 - 230999999) (2003) CYLINDER BLOCK ASSEMBLY Parts Diagram

Lawn & Garden Tractor

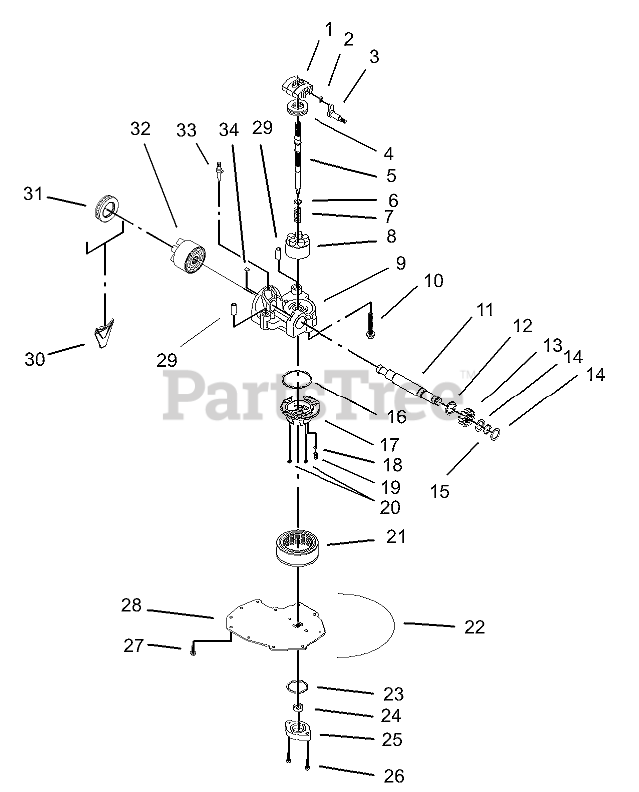

CYLINDER BLOCK ASSEMBLY Parts Diagram

  • Title
1

Toro 94-1907

SWASHPLATE-VARIABLE

$517.99

$

Usually ships in 3-6 days

0

2

Toro 94-1910

GUIDE-SLOT

$21.99

$

Usually ships in 3-6 days

0

3

Toro 104-2112

TRUNNION ASM

$306.99

$

Usually ships in 3-6 days

0

4

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

5

Toro 104-2105

SHAFT-INPUT

$

$

Not available

6

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

7

Toro 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

8

Toro 104-2106

CYLINDER BLOCK ASM
(Superseded to 103-2666)

$546.99

$

Usually ships in 3-6 days

0

9

Toro 104-2103

CENTER SECTION KIT

$

$

Not available

10

$10.99

$

Usually ships in 3-6 days

0

11

Toro 104-2107

SHAFT-OUTPUT

$

$

Not available

12

Toro 104-2109

SPACER

$

$

Not available

13

Toro 104-2110

GEAR-PINION, 16T

$

$

Not available

14

Toro 104-2150

WASHER

$

$

Not available

15

Toro 104-2151

RING-RETAINING

$

$

Not available

16

Toro 104-2185

O-RING

$

$

Not available

17

Toro 104-2156

BEARING

$118.99

$

Usually ships in 3-6 days

0

18

Toro 104-2187

BALL
(Superseded to 25-2490)

$17.99

$

Usually ships in 3-6 days

0

19

Toro 104-2186

SPRING-RELIEF

$

$

Not available

20

Toro 104-2191

O-RING

$

$

Not available

21

Toro 104-2125

FILTER

$

$

Not available

22

Toro 104-2147

SEALANT

$110.99

$

Usually ships in 3-6 days

0

23

Toro 104-2123

O-RING

$

$

Not available

24

Toro 104-2122

GEROTOR ASM

$122.99

$

Usually ships in 3-6 days

0

25

Toro 104-2124

COVER-GEROTOR

$

$

Not available

26

Toro 104-2111

CAPSCREW

$10.99

$

Usually ships in 3-6 days

0

27

$7.99

$

In Stock, only 1 left!

0

28

Toro 104-2121

COVER-LOWER

$

$

Not available

29

$25.99

$

Usually ships in 3-6 days

0

30

Toro 104-2127

RETAINER-BEARING, MOTOR

$

$

Not available

31

Toro 94-6923

BEARING-THRUST

$119.99

$

Usually ships in 3-6 days

0

32

Toro 94-1913

CYLINDER BLOCK ASM
(Superseded to 127-3867)

$226.99

$

Usually ships in 3-6 days

0

33

Toro 94-1914

ACTUATOR-BYPASS

$64.99

$

Usually ships in 3-6 days

0

34

Toro 94-6925

PLATE-BYPASS

$

$

Not available
