72116 (270-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) HOODSTAND AND FIREWALL ASSEMBLY Parts Diagram

Lawn & Garden Tractor

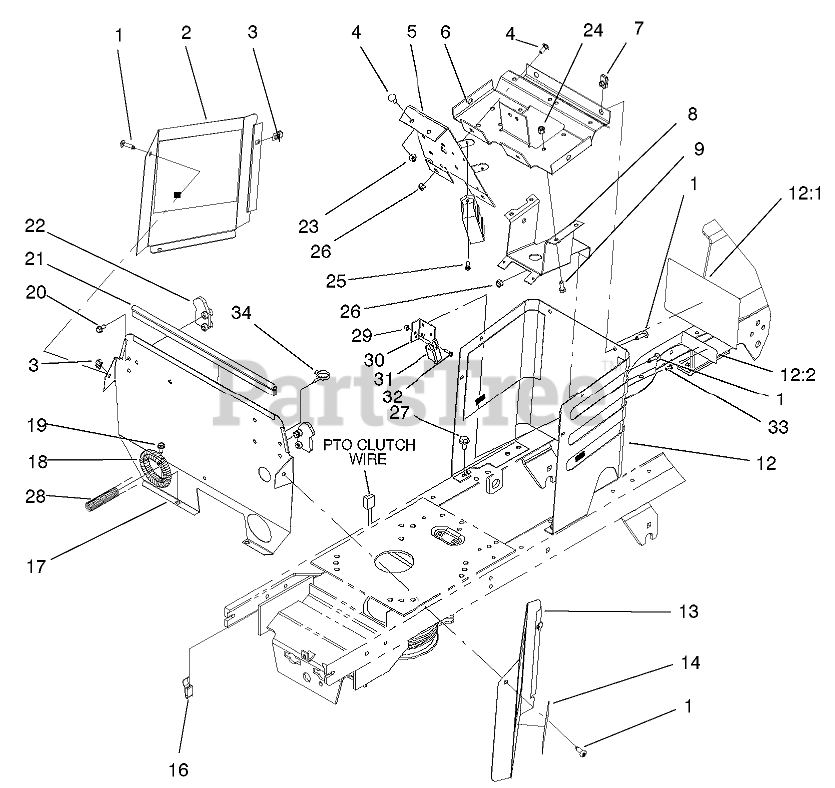

HOODSTAND AND FIREWALL ASSEMBLY Parts Diagram

  • Title
1

Toro 92-7020

SCREW-HH

$

$

Not available

2

Toro 92-6937-03

RH SIDE COVER ASM

$

$

Not available

3

$4.99

$

Usually ships in 3-6 days

0

4

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 104-5015-03

PANEL-SUPPORT, DASH

$

$

Not available

6

Toro 92-6859-03

SUPPORT-DASH

$

$

Not available

7

$2.99

$

In Stock, Qty 20+

0

8

Toro 92-6778-03

BRACKET-COLUMN, LOWER

$

$

Not available

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-5061

Hoodstand ASM (onlyon: 72108)

$

$

Not available

12

Toro 104-5062

Hoodstand ASM w/Decals (He)(only on:72116)

$

$

Not available

12:1

Toro 83-6620

DECAL-INSTRUCTION

$

$

Not available

12:2

Toro 93-0302

Decal-Danger (onlyon: 72108)

$

$

Not available

12:2

Toro 93-7313

Decal-Slope/Hydro(only on: 72116)

$

$

Not available

13

Toro 92-6936-03

LH COVER ASM

$

$

Not available

14

Toro 95-0811

DECAL - 270 HYDRO
(Superseded to 106-5841)

$

$

Not available

16

Toro 212-93

CLAMP-CASING

$4.99

$

Usually ships in 3-6 days

0

17

Toro 104-0818-03

FIREWALL

$

$

Not available

18

Toro 24-7924

COVER-SHAFT, DRIVE

$

$

Not available

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

21

Toro 93-1131

TRIM-SEAL, FIREWALL

$

$

Not available

22

Toro 92-6960

LATCH-HOOD

$

$

Not available

23

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

24

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

25

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

28

Toro 104-2455

WIRE HARNESS-LS55

$

$

Not available

29

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

30

Toro 104-0833-03

BRACKET-PARKING BRAKE

$

$

Not available

31

Toro 95-1653

SWITCH-POLE, SINGLE

$20.99

$

Usually ships in 3-6 days

0

32

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

33

Toro 32104-118

SCREW-PPH

$

$

Not available

34

$

$

Not available
