72116 (270-HE) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) TWIN CYLINDER ENGINE, MUFFLER & PTO ASSEMBLY Parts Diagram

Lawn & Garden Tractor

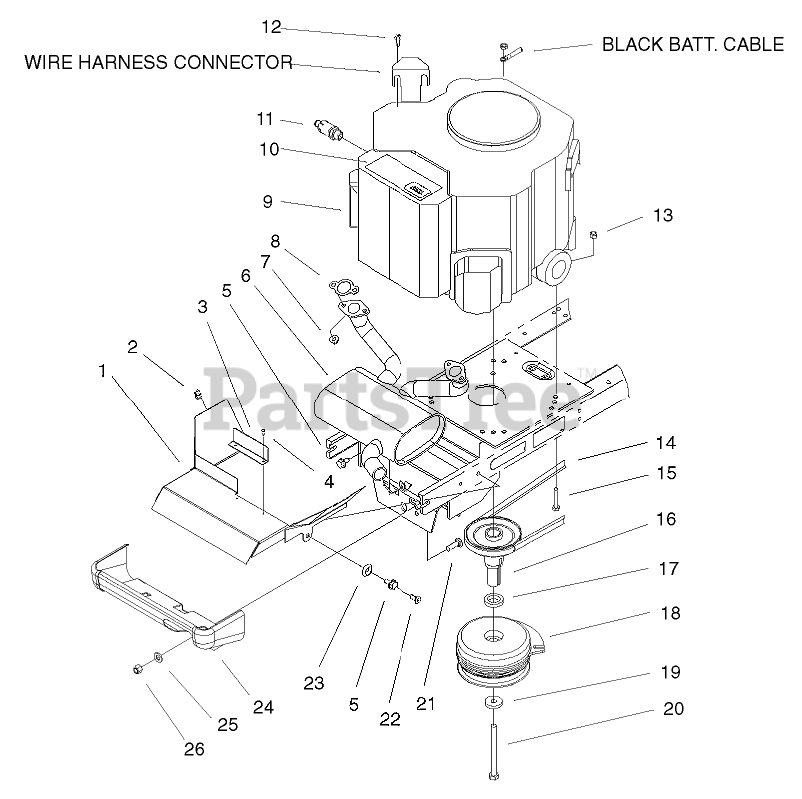

TWIN CYLINDER ENGINE, MUFFLER & PTO ASSEMBLY Parts Diagram

  • Title
1

Toro 94-6950-03

Muffler Baffle ASM
(Superseded to 94-6950)

$

$

Not available

2

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

3

Toro 99-6764-03

Guard-Throttle (only on: 72116)

$

$

Not available

4

Toro 100-1320

Screw-Panhead Torx (only on: 72116)

$

$

Not available

5

Toro 32144-14

Screw-HWH (only on: 72108)

$4.99

$

In Stock, only 3 left!

0

6

Toro 100-3543

MUFFLER-TWIN

$1447.99

$

Usually ships in 3-6 days

0

7

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

8

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

9

Toro 94-3515

Engine-Kohler 20 Int-l (only on: 72116)

$

$

Not available

9

Toro 94-3514

Engine-Kohler 20 (only on: 72108)

$7619.99

$

Usually ships in 3-6 days

0

10

Toro 94-2870

DECAL - TORO POWER + 20

$

$

Not available

11

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

12

Toro 32144-118

SCREW-PPH

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 100-3469

V-BELT

$130.99

$

In Stock, only 4 left!

0

15

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Toro 92-6888

PULLEY-ENGINE

$199.99

$

Usually ships in 3-6 days

0

17

Toro 100-1340

SPACER-CLUTCH

$23.99

$

In Stock, only 1 left!

0

18

Toro 100-6060

Clutch-Elec PTO (only on: 72116)

$

$

Not available

18

Toro 100-6059

Clutch-PTO (only on: 72108)
(Superseded to 103-9950)

$491.99

$

Usually ships in 3-6 days

0

19

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

20

Toro 9114466

SCREW-HH

$90.99

$

Usually ships in 3-6 days

0

21

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

22

Toro 100-1325

Screw-Countersunk Torx (only on: 72116)

$

$

Not available

23

Toro 100-1326

Washer-Countersunk (only on: 72116)

$

$

Not available

24

Toro 100-3541-01

MUFFLER SHIELD ASM

$

$

Not available

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0
