72115 (270-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) RANGE SHIFT Parts Diagram

Lawn & Garden Tractor

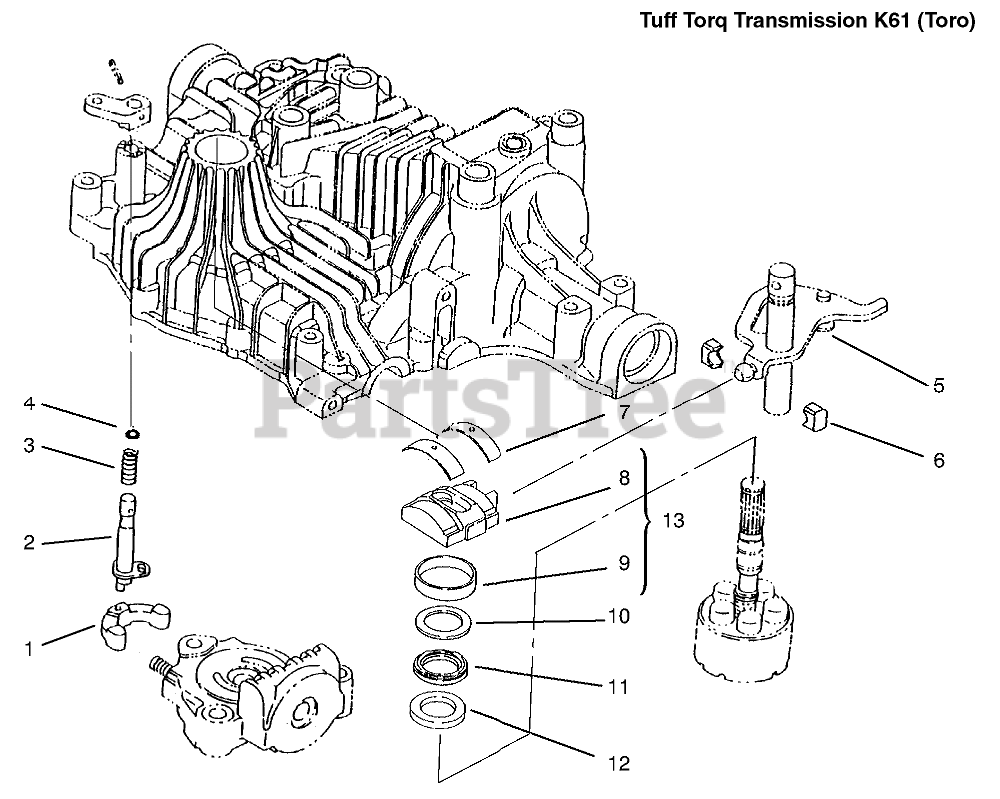

RANGE SHIFT Parts Diagram

  • Title

1

Toro 93-0395

ARM

$68.99

$

Usually ships in 3-6 days

0

2

Toro 93-0397

SHAFT-BYPASS

$

$

Not available

3

Toro 93-0396

SPRING

$11.99

$

Usually ships in 3-6 days

0

4

Toro 93-0400

O-RING

$6.99

$

In Stock, only 1 left!

0

5

Toro 93-0398

BLOCK ASM

$

$

Not available

6

Block-Shift

Note: Included in a service kit or in an assembly

$

$

Not available

7

Toro 93-0388

THRUST METAL

$

$

Not available

8

Plate-Swash

Note: Included in a service kit or in an assembly

$

$

Not available

9

Bushing-Swashplate

Note: Included in a service kit or in an assembly

$

$

Not available

10

Toro 93-0394

PLATE-THRUST

$121.99

$

Usually ships in 3-6 days

0

11

Toro 93-0392

BEARING

$

$

Not available

12

Toro 93-0393

PLATE - THRUST

$151.99

$

Usually ships in 3-6 days

0

13

Toro 93-0389

PLATE-SWASH

$

$

Not available
