72115 (270-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) FENDER & FOOTRESTS ASSEMBLY Parts Diagram

Lawn & Garden Tractor

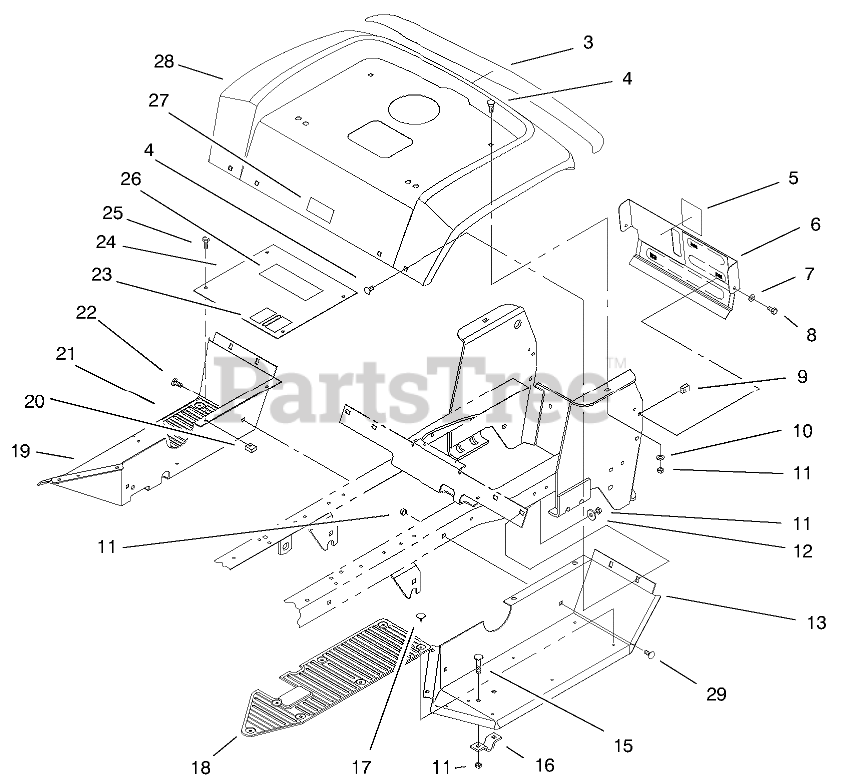

FENDER & FOOTRESTS ASSEMBLY Parts Diagram

  • Title

3

Toro 95-0802

DECAL - REAR FENDER
(Superseded to 106-5845)

$

$

Not available

4

Toro 3230-31

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

5

Toro 92-6727

DECAL-LEVEL, FUEL

$

$

Not available

6

Toro 99-6765-03

REAR PANEL ASM

$

$

Not available

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 94-2869

WASHER

$1.99

$

In Stock, Qty 5

0

13

Toro 94-1711-01

FOOTREST-LH

$

$

Not available

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

17

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

18

Toro 92-6688

FOOTPAD-LH

$

$

Not available

19

Toro 92-6747-01

FOOTREST-RH

$

$

Not available

20

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

21

Toro 92-6687

FOOTPAD-RH

$

$

Not available

22

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

23

Toro 92-7092

Decal-HOC Int-l (Only On: 72115)

$

$

Not available

23

Toro 92-6725

Decal-HOC (Only On: 72106)

$15.99

$

Usually ships in 3-6 days

0

24

Toro 93-0489-01

Plate-Footrest (Only On 72106)

$

$

Not available

24

Toro 93-4243

Plate-Footrest (Only On 72115)

$75.99

$

Usually ships in 3-6 days

0

25

Toro 92-7020

SCREW-HH

$

$

Not available

26

Toro 93-7314

Decal-Danger (Only On: 72115)

$

$

Not available

26

Toro 92-8946

Decal-Danger (Only On: 72106)

$8.49

$

Usually ships in 3-6 days

0

27

Toro 76-1340

Decal-USA (Only On: 72106)

$16.99

$

In Stock, only 1 left!

0

28

Toro 92-6795-01

FENDER

$

$

Not available

29

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
