72115 (270-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) DASH ASSEMBLY Parts Diagram

Lawn & Garden Tractor

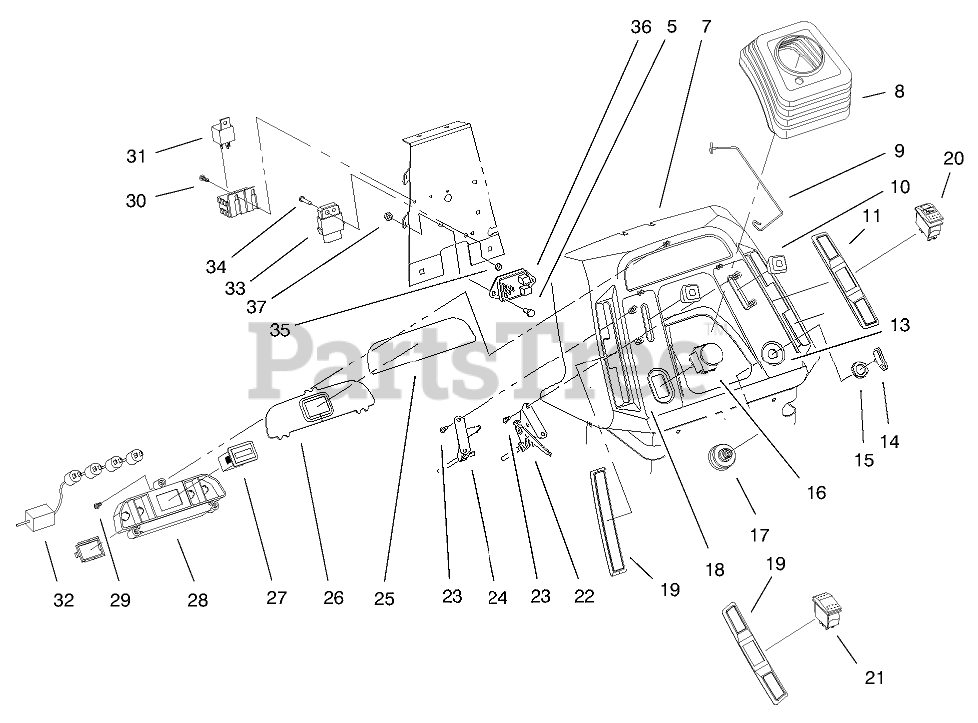

DASH ASSEMBLY Parts Diagram

  • Title

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 94-1894

DASH

$357.99

$

Usually ships in 3-6 days

0

8

Toro 92-6680

BOOT-STEERING

$

$

Not available

9

Toro 94-2966

CLIP-BOOT

$

$

Not available

10

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

11

Toro 93-0516

Cover-RH Slot (Only On: 72106)

$

$

Not available

11

Toro 93-0533

Cover-RH Slot (Only On: 72115)

$

$

Not available

13

Toro 93-7255

Decal-Dash Throt/Ign (Only On: 72115)

$28.99

$

Usually ships in 3-6 days

0

13

Toro 92-6721

Decal-Throttle/Ign (Only On: 72106)

$12.99

$

Usually ships in 3-6 days

0

14

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

15

Toro 700919

NUT

$5.99

$

In Stock, only 2 left!

0

16

Toro 93-9998

SWITCH-PTO

$45.99

$

In Stock, only 1 left!

0

17

Toro 92-6785

SWITCH-IGNITION

$86.99

$

In Stock, only 1 left!

0

18

Toro 93-7256

Decal-Dash PTO/Choke (Only On: 72115)

$

$

Not available

18

Toro 92-6720

Decal-PTO/Choke (Only On: 72106)
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

19

Toro 94-3513

Cover-Lift (Only On: 72115)

$

$

Not available

19

Toro 94-1710

Cover-Lift (Only On: 72106)

$

$

Not available

20

Toro 93-0527

SWITCH-CRUISE

$139.99

$

Usually ships in 3-6 days

0

21

Toro 94-1742

SWITCH
(Superseded to 109-4813)

$52.99

$

In Stock, only 1 left!

0

22

Toro 92-6784

CONTROL-THROTTLE (TWIN)

$125.99

$

Usually ships in 3-6 days

0

23

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

24

Toro 92-6783

CONTROL-CHOKE (TWIN)

$

$

Not available

25

Toro 99-8035

DECAL - DASH LENS

$

$

Not available

26

Toro 92-6705

LENS-DASH

$

$

Not available

27

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

28

Toro 94-1714

HOUSING-LIGHT

$

$

Not available

29

Toro 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0

30

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

31

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

32

Toro 99-8072

HARNESS-6 LAMP

$

$

Not available

33

Toro 99-1933

MODULE-LOW VOLTAGE

$

$

Not available

34

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

35

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 99-3701

MODULE-CLUTCH

$148.99

$

Usually ships in 3-6 days

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0
