72115 (270-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) CRANKCASE Parts Diagram

Lawn & Garden Tractor

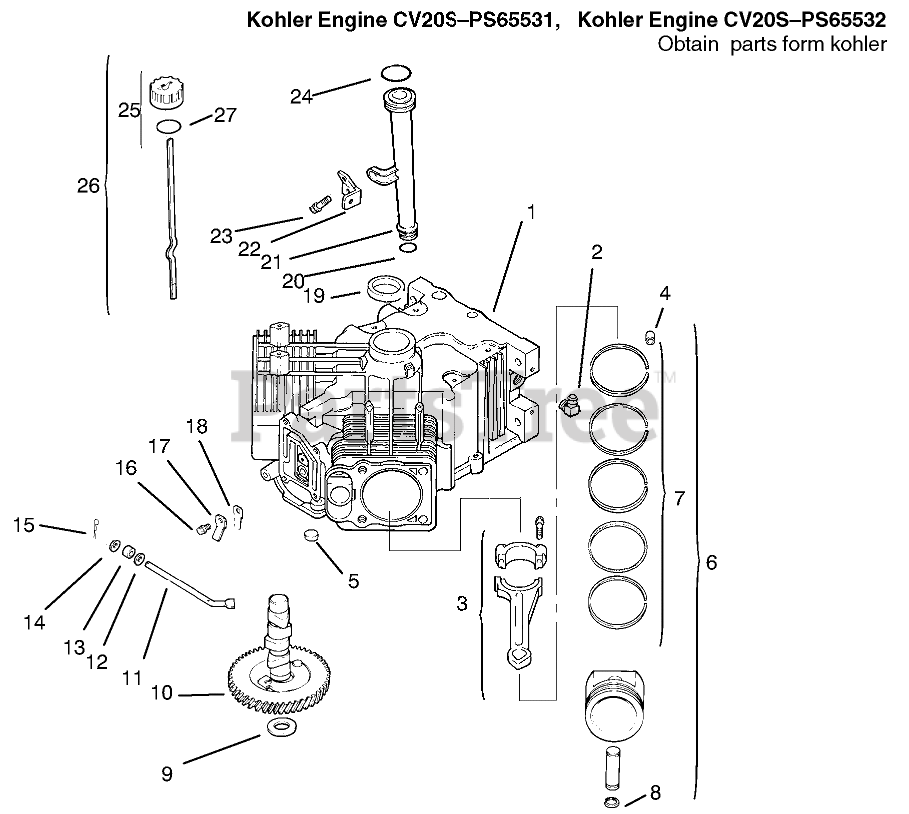

CRANKCASE Parts Diagram

  • Title

1

2452209

Short Block

$

$

Not available

2

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

3

2406701

Connecting Rod STD

$

$

Not available

3

2406702

Connecting Rod .25

$

$

Not available

4

1238003

Pin-Dowel

Note: Included in a service kit or in an assembly

$

$

Not available

5

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

$4.99

$

In Stock, only 2 left!

0

6

Kohler 24 874 01

Piston ASM STD INC4/7/8
(Superseded to 24 874 01-S)

$

$

Not available

6

2487402

Set-Piston w/Ring .25

$

$

Not available

6

Kohler 24 874 03

Piston ASM .50 INC4/7/8
(Superseded to 24 874 49-S)

$

$

Not available

7

2410801

Ring Set(Std.)

Note: Included in a service kit or in an assembly

$

$

Not available

7

2410802

Set-Ring .25

$

$

Not available

7

2410803

Set-Ring .50

$

$

Not available

8

Kohler 24 018 01

Retainer-Piston Pin
(Superseded to 24 018 01-S)

Note: Included in a service kit or in an assembly

$2.99

$

In Stock, Qty 7

0

9

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

$2.49

$

In Stock, only 2 left!

0

9

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

$2.49

$

In Stock, only 1 left!

0

9

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

$2.49

$

Usually ships in 2-5 days

0

9

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

$2.99

$

Usually ships in 2-5 days

0

9

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

$2.99

$

Usually ships in 2-5 days

0

10

2401205

Camshaft

$

$

Not available

11

2414401

Shaft-Governor Cross

$

$

Not available

12

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

13

1203201

Seal-Cross Shaft

$

$

Not available

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 5

0

15

1238004

Pin-Hitch

$

$

Not available

16

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

17

2401804

Retainer-Reed

$

$

Not available

18

2440201

Beed-Breather

$

$

Not available

19

Kohler 24 032 01

Seal-Oil
(Superseded to 24 032 01-S)

$7.49

$

In Stock, Qty 20+

0

20

1215301

"O"Ring

$

$

Not available

21

1212304

Tube-Oil Fill

$

$

Not available

22

2412619

Bracket-Oil Tube

$

$

Not available

23

Kohler M-0549016

Screw

$

$

Not available

24

1215302

"O"Ring

$

$

Not available

25

2403804

Dipstick INC 26-27

$

$

Not available

26

2575513

Kit-Oil Fill Cap

Note: Included in a service kit or in an assembly

$

$

Not available

27

1215303

"O"Ring

Note: Included in a service kit or in an assembly

$

$

Not available

2475503

Gasket Set

Note: Not illustrated

$

$

Not available
