72115 (270-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) CENTER CASE Parts Diagram

Lawn & Garden Tractor

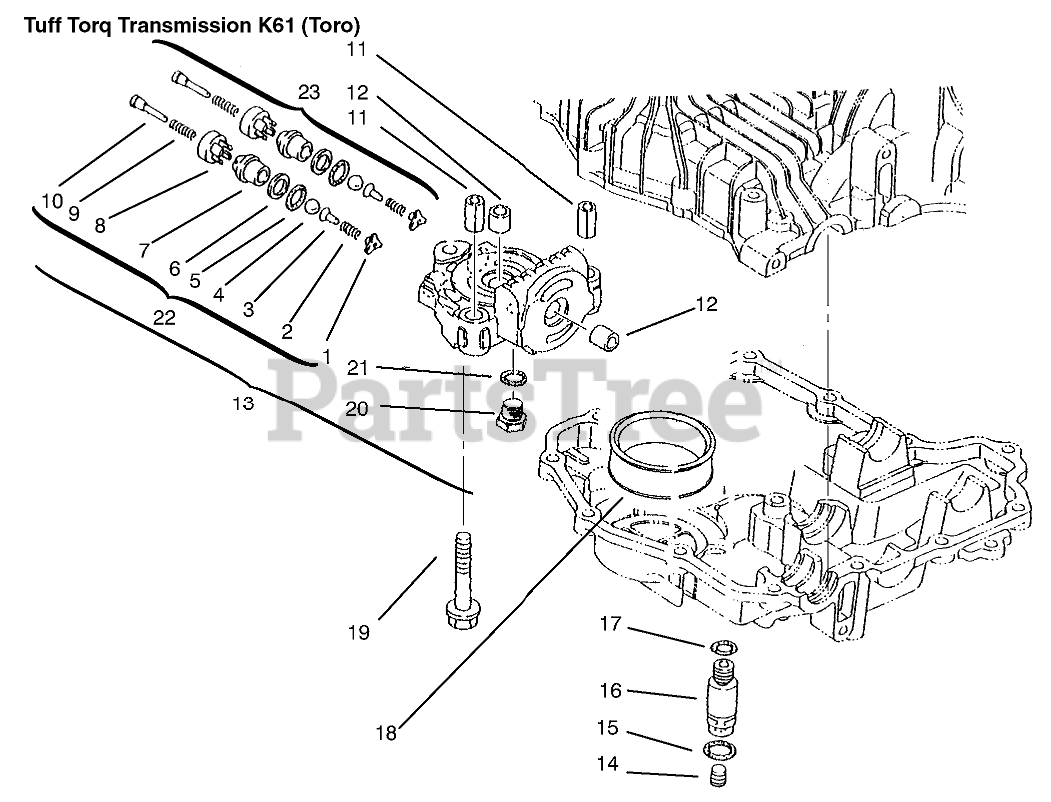

CENTER CASE Parts Diagram

  • Title

1

Toro 93-0461

Holder-Bypass
(Superseded to 93-0482)

$

$

Not available

3

Holder-Ball

Note: Included in a service kit or in an assembly

$

$

Not available

4

Ball

Note: Included in a service kit or in an assembly

$

$

Not available

5

Toro 93-0465

PACKING

Note: Included in a service kit or in an assembly

$

$

Not available

6

Toro 93-0466

RING-BACK UP

Note: Included in a service kit or in an assembly

$

$

Not available

7

Sleeve A1

Note: Included in a service kit or in an assembly

$

$

Not available

8

Valve B

Note: Included in a service kit or in an assembly

$

$

Not available

10

Pin-Push

Note: Included in a service kit or in an assembly

$

$

Not available

11

Toro 93-0471

PIN-KNOCK

Note: Included in a service kit or in an assembly

$

$

Not available

12

Toro 93-0472

BUSHING

Note: Included in a service kit or in an assembly

$

$

Not available

13

Toro 93-0484

Case INC 11-12 & 20-23
(Superseded to 99-3697)

$

$

Not available

14

Toro 93-0474

PLUG

$13.99

$

Usually ships in 3-6 days

0

15

Toro 93-0475

PACKING

$9.49

$

Usually ships in 3-6 days

0

16

Toro 93-0476

CONNECTOR

$102.99

$

Usually ships in 3-6 days

0

17

Toro 93-0481

PACKING

$10.99

$

Usually ships in 3-6 days

0

18

Toro 93-0478

FILTER

$

$

Not available

19

Toro 93-0479

BOLT

$11.99

$

Usually ships in 3-6 days

0

20

Toro 93-0480

PLUG

$

$

Not available

21

Toro 93-0481

PACKING

$10.99

$

Usually ships in 3-6 days

0

22

Toro 93-0482

ASM - VALVE A1 INC 1-10

$

$

Not available

23

Toro 93-0483

ASM - VALVE A2

$

$

Not available
