72115 (270-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) AIR INTAKE / FILTRATION Parts Diagram

Lawn & Garden Tractor

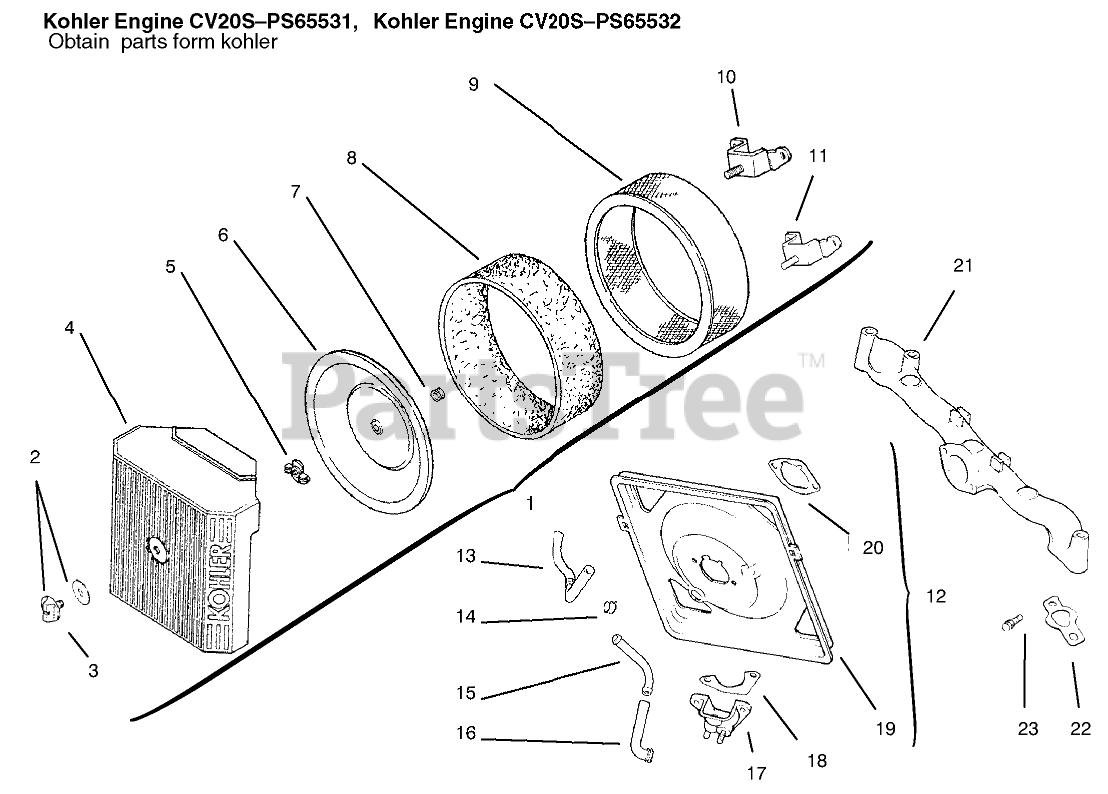

AIR INTAKE / FILTRATION Parts Diagram

  • Title

1

2474301

Kit-A/C Cover INC 2-4

$

$

Not available

2

2408904

Spring-Latch

Note: Included in a service kit or in an assembly

$

$

Not available

3

2434401

Latch-Lever

Note: Included in a service kit or in an assembly

$

$

Not available

4

2438003

Pin-Latch Lever

Note: Included in a service kit or in an assembly

$

$

Not available

5

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

$3.99

$

In Stock, only 1 left!

0

6

2403203

Seal, insert

$

$

Not available

7

Kohler 24 096 01

Cover-Inner AirCleaner
(Superseded to 24 096 01-S)

$16.99

$

In Stock, only 1 left!

0

8

2408302

Bement-Precleaner

$

$

Not available

9

4708303

Bement-Air Cleaner

$

$

Not available

10

2410901

Cup-Fuel Spitback

$

$

Not available

11

2404113

Gasket-Fuel Spitback

$

$

Not available

12

2409402

Base-Air Cleaner

$

$

Not available

13

2404114

Gasket-A/C Base

$

$

Not available

14

2416406

Manifold-Intake

$

$

Not available

15

Kohler 24 041 01

Gasket-Intake, Manifold
(Superseded to 24 041 01-S)

$2.99

$

In Stock, Qty 7

0

16

Kohler M-0639055

Screw
(Superseded to M-639055)

$2.49

$

In Stock, Qty 20+

0
