72110 (270-H) - Toro Lawn & Garden Tractor (SN: 089000600 - 089099999) (1998) SEAT Parts Diagram

Lawn & Garden Tractor

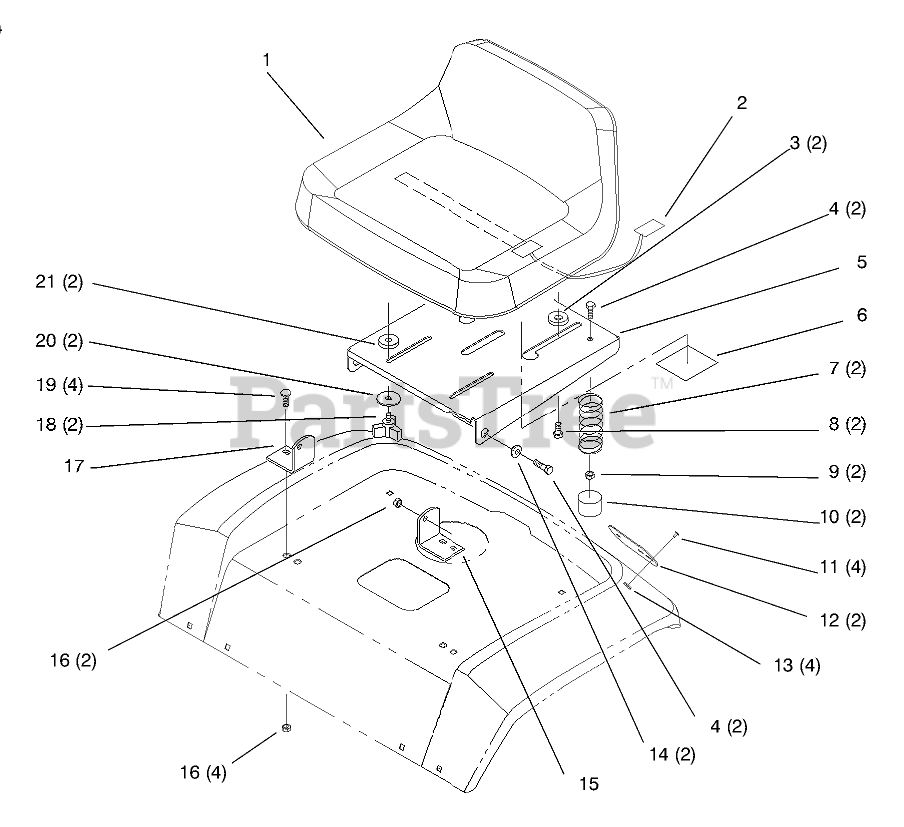

SEAT Parts Diagram

  • Title

1

Toro 92-6511

SEAT-V-511

$

$

Not available

1:1

Toro 94-4909

TRIM - SEAT

$

$

Not available

2

Toro 38-1420

SWITCH-SEAT

$

$

Not available

3

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 92-6972-03

SUPPORT - SEAT (BLACK)

$

$

Not available

6

Toro 114621

DECAL-EUROPE
(Superseded to 105-2699)

$33.99

$

Usually ships in 3-6 days

0

7

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

8

Toro 92-6986

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

10

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

11

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

12

Toro 106557

REFLECTOR-STICK ON

$

$

Not available

13

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 79-0970-03

BRACKET-PIVOT, LH

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 79-0950-03

BRACKET-PIVOT, RH

$

$

Not available

18

Toro 700806

KNOB

$20.99

$

In Stock, Qty 5

0

19

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

20

Toro 94-2869

WASHER

$1.99

$

In Stock, Qty 5

0

21

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0
