72110 (270-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) OIL PAN/LUBRICATION Parts Diagram

Lawn & Garden Tractor

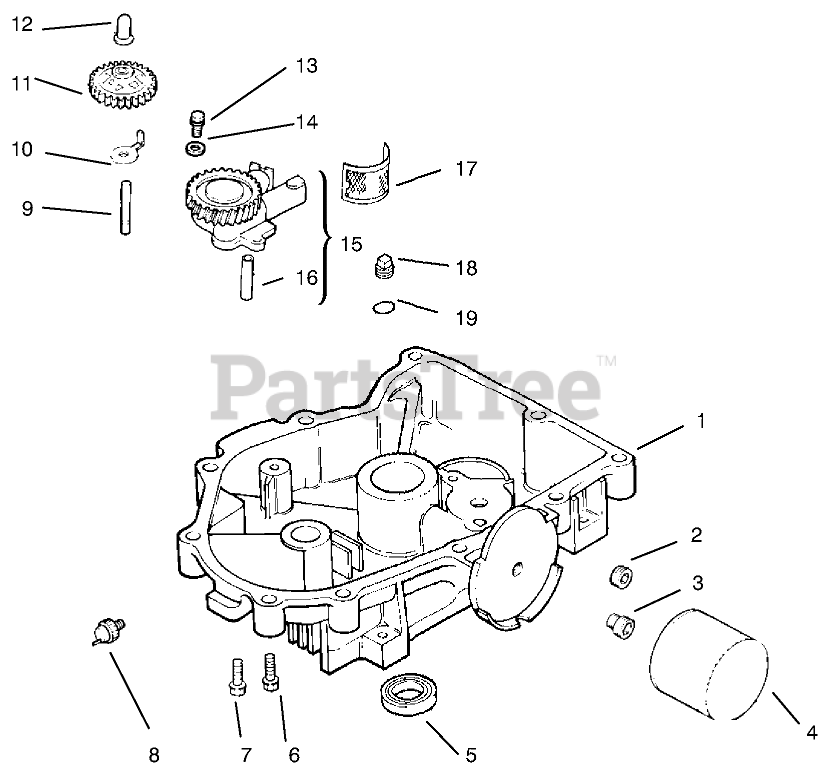

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

2419901

Oil Pan

$

$

Not available

2

Kohler X-75-32

Plug-Hex
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

3

Kohler 24 136 01

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

4

Kohler 12 050 01

Filter-Oil
(Superseded to 12 050 01-S)

$13.99

$

In Stock, Qty 20+

0

5

Kohler 52 032 08

Seal-Oil
(Superseded to 52 032 08-S)

$10.99

$

In Stock, Qty 20+

0

6

Kohler 24 086 17

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 7

0

7

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 7

0

8

5209906

Switch, pressure

$

$

Not available

9

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

$4.49

$

In Stock, Qty 8

0

10

Kohler 52 448 02

Tab-Locking
(Superseded to 52 448 02-S)

$2.49

$

In Stock, only 2 left!

0

11

2404311

Governor Gear ASM

$

$

Not available

12

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

$3.49

$

In Stock, Qty 8

0

13

Kohler M-0645025

Screw
(Superseded to M-645025)

$2.49

$

In Stock, only 2 left!

0

14

Kohler SM-0631005

Washer

$

$

Not available

15

2439305

Oil Pump ASM INC 16

$

$

Not available

16

2412305

Tube-Oil Pickup

Note: Included in a service kit or in an assembly

$

$

Not available

17

1216202

Screen-Oil Pickup

$

$

Not available

18

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

19

Kohler 24 153 08

O Ring
(Superseded to 24 153 08-S)

$6.99

$

In Stock, only 2 left!

0

2511305

Decal-Oil Sentry

Note: Not illustrated

$

$

Not available
