72110 (270-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) HYDRO CONTROL Parts Diagram

Lawn & Garden Tractor

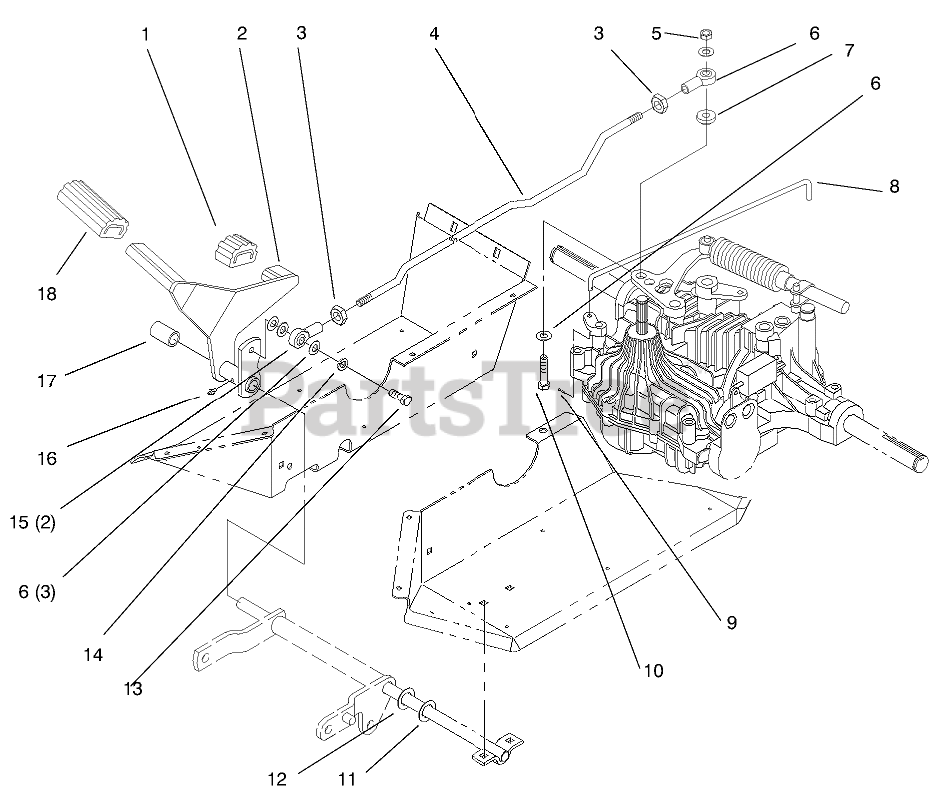

HYDRO CONTROL Parts Diagram

  • Title

1

Toro 92-6903

PAD-PEDAL

$7.99

$

Usually ships in 3-6 days

0

2

Toro 92-6913-03

PEDAL-HYDRO WA

$

$

Not available

3

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

4

Toro 92-7018

ROD - HYDRO

$

$

Not available

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 92-6962

BUSHING

$

$

Not available

8

Toro 92-6970

ROD - BYPASS

$

$

Not available

9

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

10

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 94-6875

WASHER

$10.99

$

Usually ships in 3-6 days

0

12

Toro 94-4945

SPACER

$9.49

$

Usually ships in 3-6 days

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

15

Toro 92-7008

END-ROD, FEMALE

$52.99

$

Usually ships in 3-6 days

0

16

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

17

Toro 92-6966

SPACER

$

$

Not available

18

Toro 92-6902

PAD-PEDAL

$

$

Not available
