72110 (270-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) AXLE SHAFT Parts Diagram

Lawn & Garden Tractor

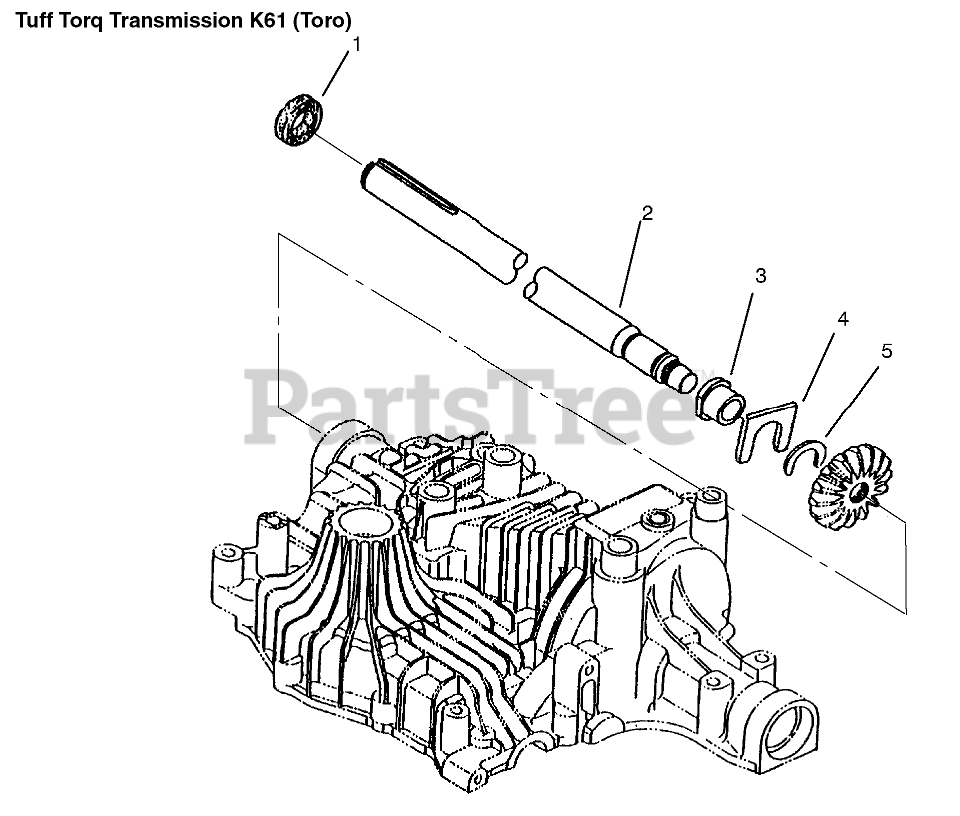

AXLE SHAFT Parts Diagram

  • Title
1

$

$

Not available

2

Toro 93-0452

Shaft-Axle Right
(Superseded to 99-3699)

$293.99

$

Usually ships in 3-6 days

0

3

Toro 93-0454

BUSHING

$

$

Not available

4

Toro 93-0455

WASHER - THRUST

$

$

Not available

5

$

$

Not available

Toro 93-0453

Shaft-Axle Left
(Superseded to 99-3698)

Note: Not illustrated

$293.99

$

Usually ships in 3-6 days

0
