72108 (270-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) IGNITION/ELECTRICAL-KOHLER CV20S-PS65531 AND PS65532 Parts Diagram

Lawn & Garden Tractor

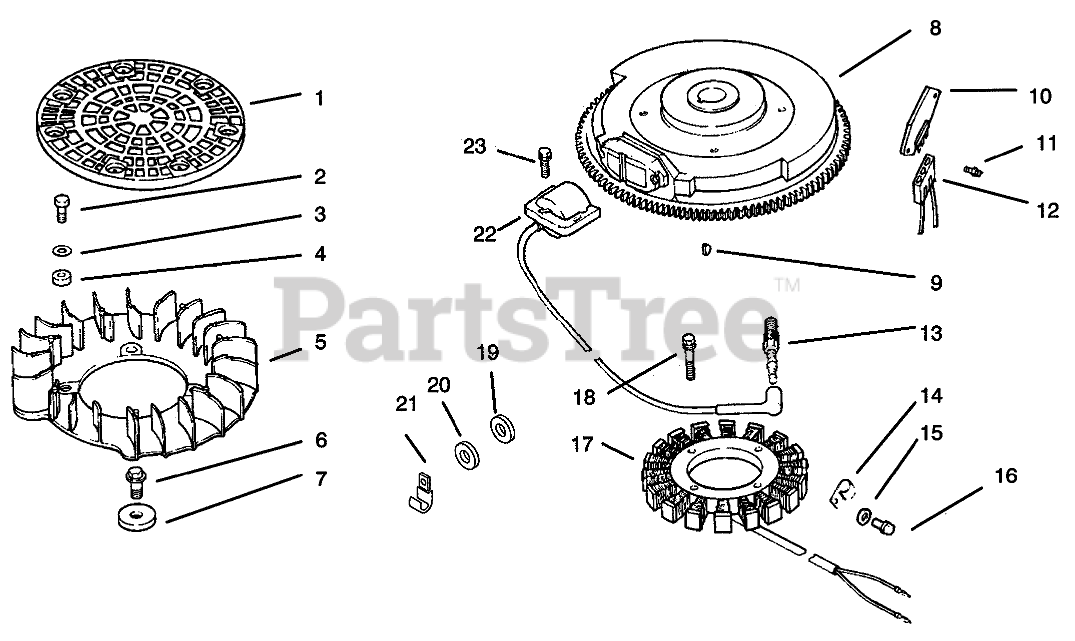

IGNITION/ELECTRICAL-KOHLER CV20S-PS65531 AND PS65532 Parts Diagram

  • Title

1

Toro 2416217

Screen-Grass

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

Toro M-0401025

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

3

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

4

2411204

Spacer-Fan

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

2415703

Fan

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler M-0639016

Screw
(Superseded to M-639016)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

7

1211201

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

2402504

Flywheel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 6

0

10

Kohler 25 403 03

Rectifier-Regulator
(Superseded to 25 403 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

Kohler 24 086 06

Screw
(Superseded to 24 086 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

12

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

13

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 20+

0

14

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

Usually ships in 2-5 days

0

15

Kohler 12 468 03

Washer
(Superseded to 25 468 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 2 left!

0

16

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 12

0

17

2408501

Stator-15 Amp

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

18

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

19

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

20

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

21

Kohler 235173

Clip
(Superseded to 235173-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

Usually ships in 2-5 days

0

22

Kohler 24 584 01

Module-Ignition
(Superseded to 24 584 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

23

Kohler M-0545020

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2411318

Decal Grass Screen

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2411318

Decal Grass Screen

Note: Not illustrated

$

$

Not available

2417606

Harness-Wire

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2417606

Harness-Wire

Note: Not illustrated

$

$

Not available

2451804

Lead-Green

Note: Not illustrated

$

$

Not available

2451804

Lead-Green

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
