72108 (270-H) - Toro Lawn & Garden Tractor (SN: 210000001 - 210999999) (2001) FUEL TANK ASSEMBLY Parts Diagram

Lawn & Garden Tractor

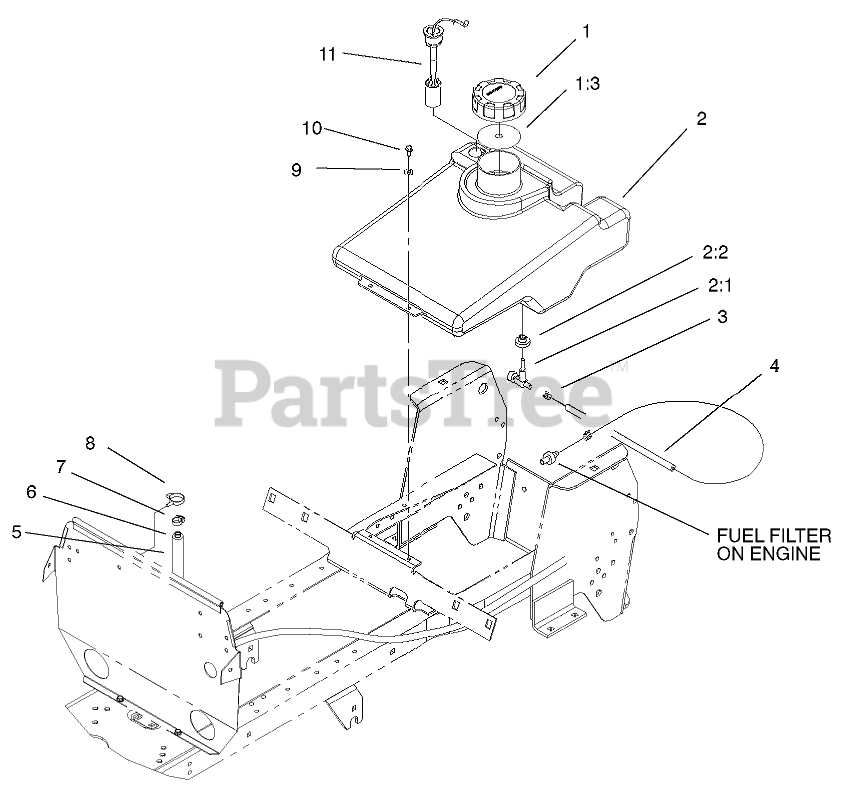

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

1:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 1 left!

0

2

Toro 94-6927

TANK-FUEL

$

$

Not available

2:1

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

2:2

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 93-1627

HOSE - FUEL LINE TWIN

$

$

Not available

5

Toro 100-6072

HOSE-BREATHER

$

$

Not available

6

Toro 93-3817

FITTING-VENT

$18.99

$

Usually ships in 3-6 days

0

7

Toro 2412-119

CLAMP-HOSE, WORM DRIVE

$2.49

$

Usually ships in 3-6 days

0

8

Toro 104-2490

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0

11

Toro 94-1716

SENSOR-FUEL, LOW

$189.99

$

Usually ships in 3-6 days

0
