72107 (268-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) FUEL SYSTEM ASSEMBLY KOHLER CV18S-PS-61528 AND CV18S-PS-61529 Parts Diagram

Lawn & Garden Tractor

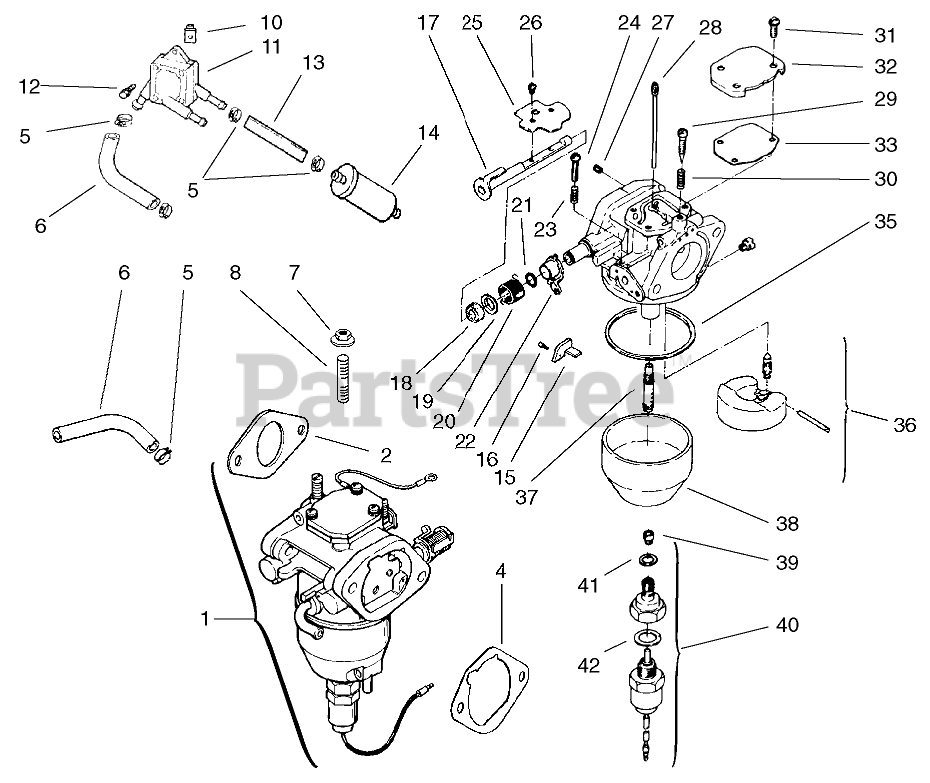

FUEL SYSTEM ASSEMBLY KOHLER CV18S-PS-61528 AND CV18S-PS-61529 Parts Diagram

  • Title

2

2404115

Kit-Carburetor

Note: Included in a service kit or in an assembly.

$

$

Not available

4

2404114

Gasket-A/C Base

Note: Included in a service kit or in an assembly.

$

$

Not available

5

Toro X-426-9

Clamp

$

$

Currently unavailable

6

2435303

Line-Fuel

$

$

Not available

7

Toro M-0641060

Nut

$

$

Currently unavailable

8

Toro M-0629095

Stud

$

$

Currently unavailable

10

24 100 01

Nut

$

$

Not available

11

2439304

Pump-Fuel

$

$

Not available

12

2408612

Screw

$

$

Not available

13

2535315

Line-Fuel

$

$

Not available

14

2505002

Filter-Fuel

$

$

Not available

15

2412629

Bracket-Throttle Stop

Note: Included in a service kit or in an assembly.

$

$

Not available

16

Toro M-0259006

Screw

Note: Included in a service kit or in an assembly.

$

$

Currently unavailable

17

2414415

Shaft-Choke

Note: Included in a service kit or in an assembly.

$

$

Not available

18

2446805

Washer

Note: Included in a service kit or in an assembly.

$

$

Not available

19

2424101

Collar-Coke

Note: Included in a service kit or in an assembly.

$

$

Not available

20

2408922

Spring-Choke Return

Note: Included in a service kit or in an assembly.

$

$

Not available

21

2414104

Ring-Choke Lever

Note: Included in a service kit or in an assembly.

$

$

Not available

22

2409010

Lever-Choke

Note: Included in a service kit or in an assembly.

$

$

Not available

23

2408924

Sprin-Throttle Screw

Note: Included in a service kit or in an assembly.

$

$

Not available

24

2408619

Screw-Throttle Adjust

Note: Included in a service kit or in an assembly.

$

$

Not available

25

2414613

Valve-Choke

$

$

Not available

26

2408620

Screw

Note: Included in a service kit or in an assembly.

$

$

Not available

27

2433727

Jet-Air Bleed

Note: Included in a service kit or in an assembly.

$

$

Not available

28

2433711

Jet-Slow

Note: Included in a service kit or in an assembly.

$

$

Not available

29

2408622

Screw

Note: Included in a service kit or in an assembly.

$

$

Not available

30

2408923

Spring-idler Screw

Note: Included in a service kit or in an assembly.

$

$

Not available

31

2408621

Screw

Note: Included in a service kit or in an assembly.

$

$

Not available

32

2409613

Cover-Passage

Note: Included in a service kit or in an assembly.

$

$

Not available

33

Toro 24 041 18

Gasket-PassageCover

Note: Included in a service kit or in an assembly.

$

$

Currently unavailable

35

24 041 19

Gasket-FloatChamber

Note: Included in a service kit or in an assembly.

$

$

Not available

36

2475705

Kit-Float Repair

Note: Included in a service kit or in an assembly.

$

$

Not available

37

2436901

Nozzle-Main

Note: Included in a service kit or in an assembly.

$

$

Not available

38

2423401

Chamber-Float

Note: Included in a service kit or in an assembly.

$

$

Not available

39

2433720

Jet-Main

Note: Included in a service kit or in an assembly.

$

$

Not available

40

Toro 24 755 15

Kit-Solenoid INC41-42

Note: Included in a service kit or in an assembly.

$

$

Currently unavailable

41

24 041 21

Gasket-ChamberScrew

Note: Included in a service kit or in an assembly.

$

$

Not available

42

2404120

Gasket-Solenoid

Note: Included in a service kit or in an assembly.

$

$

Not available

2404115

Kit-Carburetor

Note: Not illustrated. Obtain parts from Kohler

$

$

Not available

2406322

Baffle-Carburetor

Note: Not illustrated. Obtain parts from Kohler

$

$

Not available

24 755 25

Kit-Hi Alt 1500-3000M

Note: Not illustrated. Obtain parts from Kohler

$

$

Not available

Toro 24 755 26

Kit-Hi Alt Over 3000M

Note: Not illustrated. Obtain parts from Kohler

$

$

Currently unavailable

2475706

Kit-Carburetor Repair

Note: Not illustrated. Obtain parts from Kohler

$

$

Not available
