72107 (268-HE) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) FENDER AND FOOTREST ASSEMBLY Parts Diagram

Lawn & Garden Tractor

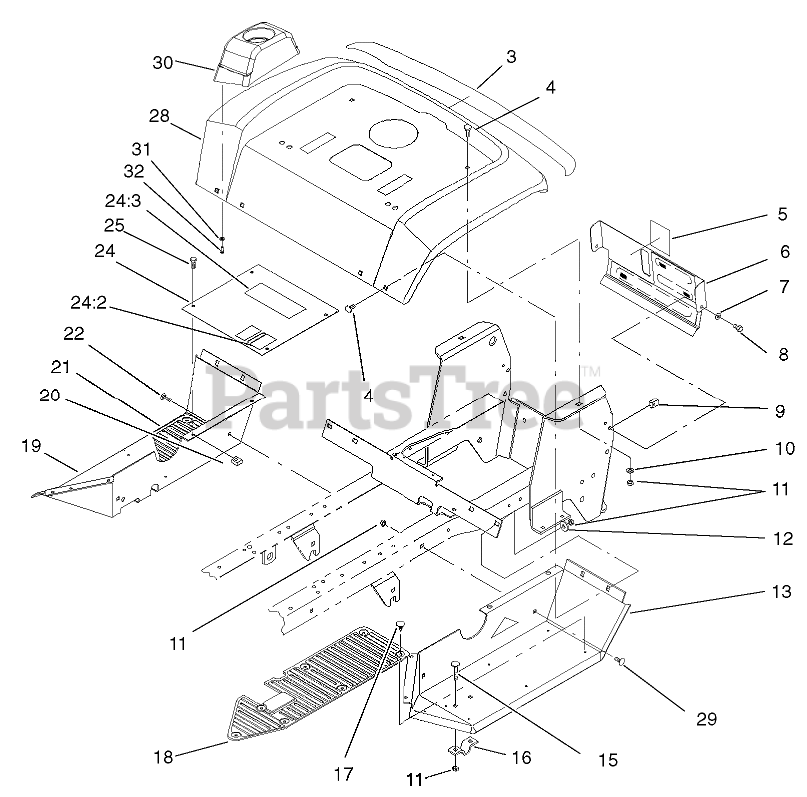

FENDER AND FOOTREST ASSEMBLY Parts Diagram

  • Title
3

Toro 95-0802

DECAL - REAR FENDER
(Superseded to 106-5845)

$

$

Not available

4

Toro 3230-31

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

5

Toro 92-6727

DECAL-LEVEL, FUEL

$

$

Not available

6

Toro 99-6765-03

REAR PANEL ASM

$

$

Not available

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 94-2869

WASHER

$1.99

$

In Stock, Qty 5

0

13

Toro 92-6746-01

FOOTREST-LH

$

$

Not available

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

17

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

18

Toro 92-6688

FOOTPAD-LH

$

$

Not available

19

Toro 92-6747-01

FOOTREST-RH

$

$

Not available

20

$2.99

$

In Stock, Qty 20+

0

21

Toro 92-6687

FOOTPAD-RH

$

$

Not available

22

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 94-4243

Plate-Footrest W/Decals (only on: 72107)

$

$

Not available

24

Toro 93-0489

Plate-Footrest (only on: 72087)
(Superseded to 93-0489-01)

$

$

Not available

24:2

Toro 92-6725

Decal-HOC (only on: 72087)

$15.99

$

Usually ships in 3-6 days

0

24:2

Toro 92-7092

Decal-HOC (only on: 72107)

$

$

Not available

24:3

Toro 93-7314

Decal-Danger (only on: 72107)

$

$

Not available

24:3

Toro 92-8946

Decal-Danger (only on: 72087)

$8.49

$

Usually ships in 3-6 days

0

25

Toro 92-7020

SCREW-HH

$

$

Not available

28

Toro 104-5030-01

FENDER ASM

$

$

Not available

29

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

30

Toro 104-0838

HOLDER-CUP

$

$

Not available

31

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

32

Toro 32144-20

SCREW-HHFTF

$2.99

$

In Stock, only 4 left!

0
