72106 (270-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) MOTOR SHAFT Parts Diagram

Lawn & Garden Tractor

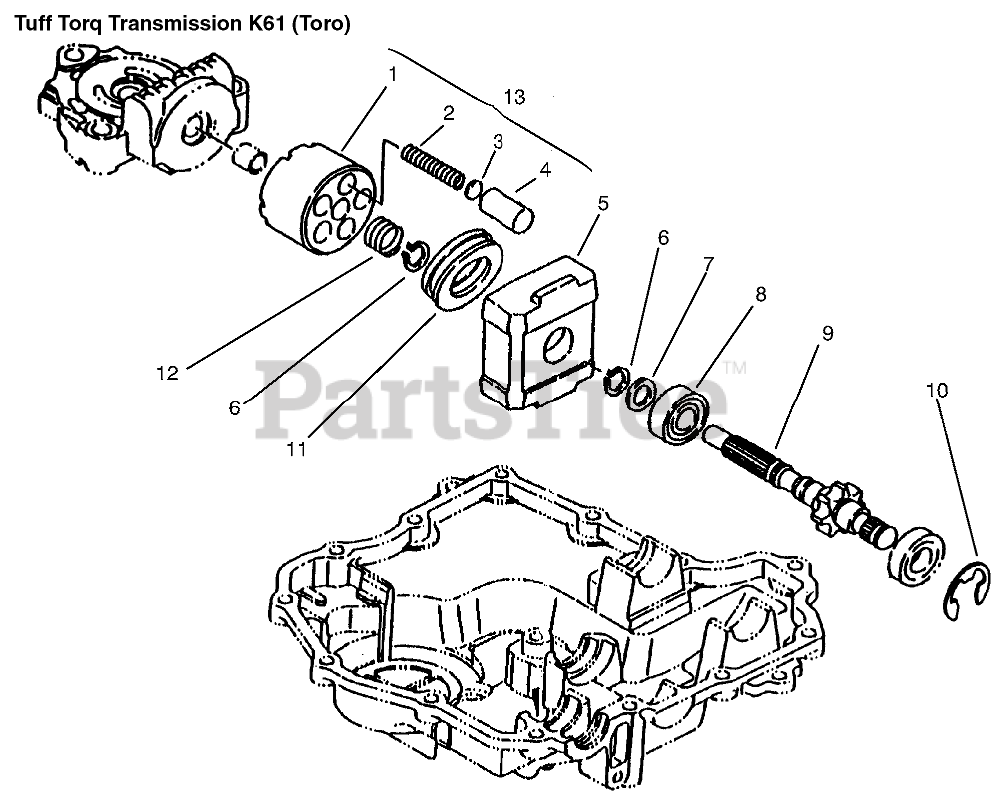

MOTOR SHAFT Parts Diagram

  • Title
1

Block-Cylinder

$

$

Not available

3

Washer

$

$

Not available

5

Toro 93-0375

HOUSING

$

$

Not available

6

Toro 93-0373

RING-SNAP

$12.99

$

Usually ships in 3-6 days

0

7

Toro 93-0371

WASHER

$

$

Not available

8

Toro 93-0374

BEARING-BALL

$58.99

$

Usually ships in 3-6 days

0

9

Toro 93-0386

SHAFT - MOTOR

$

$

Not available

10

Toro 93-0387

E-RING
(Superseded to 92-0761)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 93-0376

BEARING-THRUST

$

$

Not available

13

Toro 93-0365

ASM - CYCLINDER INC 6-9

$

$

Not available
