72106 (270-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) FUEL TANK & HYDRO RESERVOIR ASSEMBLY Parts Diagram

Lawn & Garden Tractor

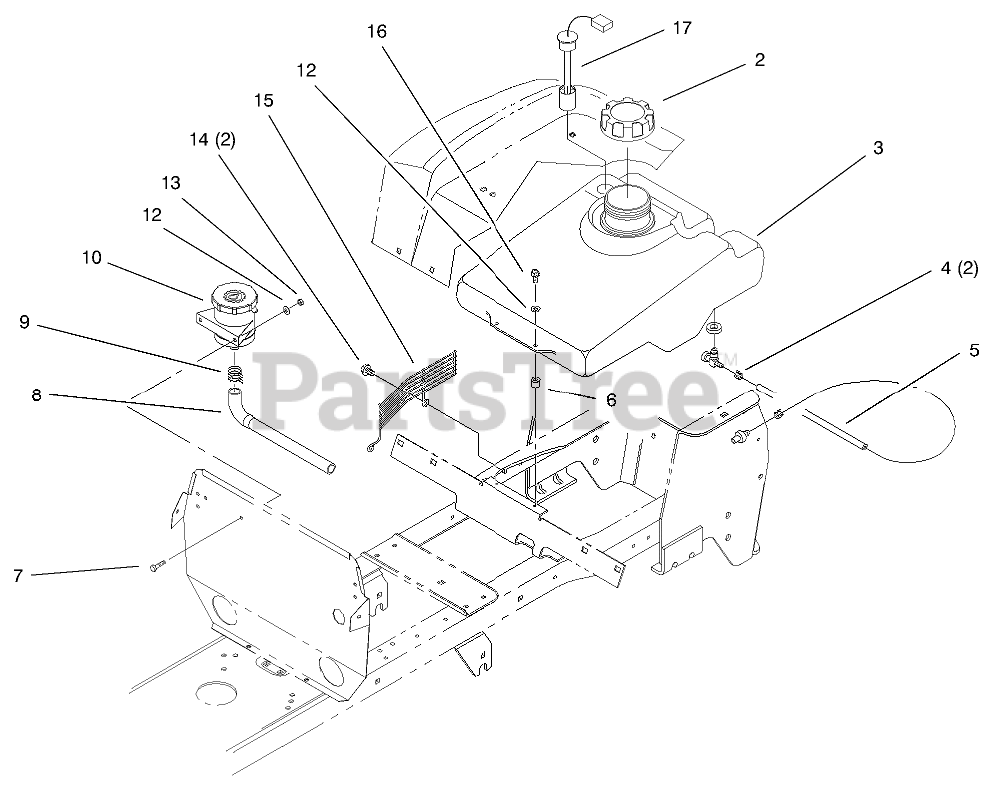

FUEL TANK & HYDRO RESERVOIR ASSEMBLY Parts Diagram

  • Title

2

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 16

0

3

Toro 94-6927

TANK-FUEL

$

$

Not available

4

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

5

Toro 93-1627

HOSE - FUEL LINE TWIN

$

$

Not available

6

Toro 93-1144

SPACER - FUEL TANK

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 92-6737

HOSE - HYDRO

$209.99

$

Usually ships in 3-6 days

0

9

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

10

Toro 79-3500

ASS'Y-RESERVOIR

$

$

Not available

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 32144-14

Screw-HWH (Only On: 72115)

$4.99

$

In Stock, only 3 left!

0

15

Toro 93-9275

Guard-Fan (Only On: 72115)

$

$

Not available

16

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0

17

Toro 94-1716

SENSOR-FUEL, LOW

$

$

Not available
