72105 (268-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) AIR INTAKE / FILTRATION Parts Diagram

Lawn & Garden Tractor

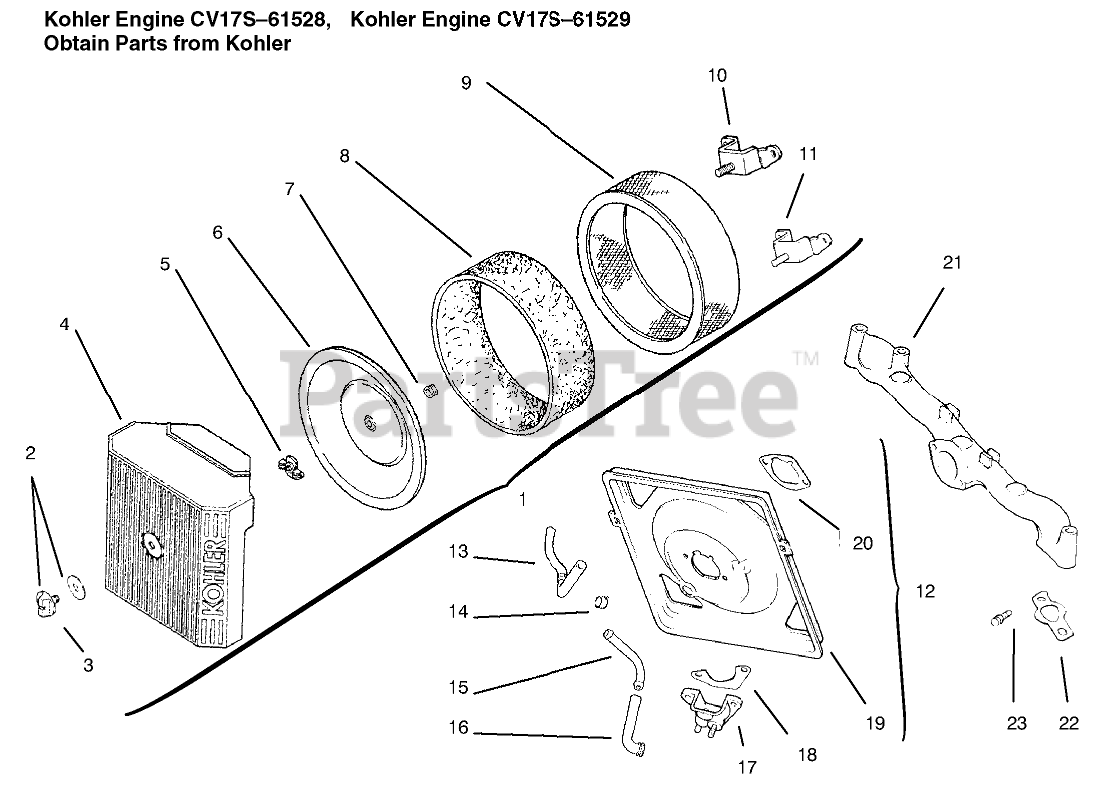

AIR INTAKE / FILTRATION Parts Diagram

  • Title

1

2474305

Kit-Air Cleaner Cover

$

$

Not available

2

2475591

Kit-Knob w/Gasket

$

$

Not available

3

2534102

Knob-Cover

$

$

Not available

4

2409624

Cover-Air Cleaner

$

$

Not available

5

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

$3.99

$

In Stock, only 2 left!

0

6

Kohler 24 096 01

Cover-Inner AirCleaner
(Superseded to 24 096 01-S)

$16.99

$

In Stock, only 1 left!

0

7

2403203

Seal, insert

$

$

Not available

8

2408302

Bement-Precleaner

$

$

Not available

9

4708303

Bement-Air Cleaner

$

$

Not available

10

2412621

Bracket-Air Cleaner

$

$

Not available

11

2412643

Bracket-Air Cleaner

$

$

Not available

12

2475586

Kit-Air Cleaner Base

$

$

Not available

13

2432613

Hose-Breather

$

$

Not available

14

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

15

2429406

Fitting

$

$

Not available

16

2432614

Hose-Breather

$

$

Not available

17

2410906

Cup-Fuel Spitback

$

$

Not available

18

2404113

Gasket-Fuel Spitback

$

$

Not available

19

2409414

Base-Air Cleaner

$

$

Not available

20

2404114

Gasket-A/C Base

$

$

Not available

21

2416406

Manifold-Intake

$

$

Not available

22

Kohler 24 041 01

Gasket-Intake, Manifold
(Superseded to 24 041 01-S)

$2.99

$

In Stock, Qty 7

0

23

Kohler M-0651055

Screw
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0
