72104 (267-H) - Toro Lawn & Garden Tractor (SN: 089000001 - 089000599) (1998) STEERING WHEEL AND TILT Parts Diagram

Lawn & Garden Tractor

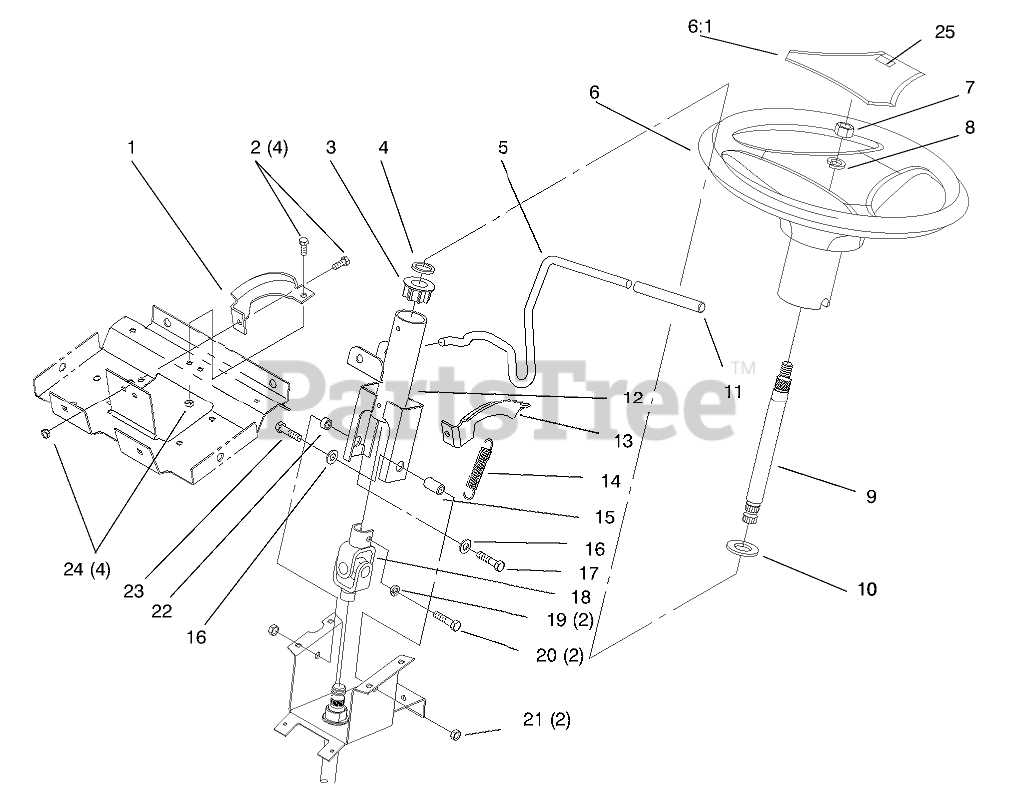

STEERING WHEEL AND TILT Parts Diagram

  • Title

1

Toro 92-6777-03

BRACKET-SUPPORT, COLUMN

$

$

Not available

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 93-1146

BUSHING-STEERING, UPPER

$11.99

$

In Stock, only 1 left!

0

4

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

5

Toro 92-6971

LEVER-TILT

$40.99

$

In Stock, only 2 left!

0

6

Toro 98-1472

WHEEL-STEERING

$

$

Not available

6:1

Toro 98-1468

COVER-WHEEL, STEERING

$18.99

$

In Stock, only 1 left!

0

7

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

8

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

9

Toro 94-2874

SHAFT-SHORT, STEERING

$55.99

$

In Stock, only 1 left!

0

10

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

11

Toro 92-6798

CAP-ROD, TILT

$4.99

$

In Stock, only 2 left!

0

12

Toro 93-1148-03

COLUMN ASM

$

$

Not available

13

Toro 92-6776

BRACKET-DETENT

$

$

Not available

14

Toro 93-1357

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0

15

Toro 92-6999

SPACER-YOKE

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

18

Toro 92-6717

U-JOINT, STEERING

$381.99

$

Usually ships in 3-6 days

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 92-6998

SPACER-YOKE, RIGHT

$29.99

$

Usually ships in 3-6 days

0

23

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

24

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

25

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0
