72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) IGNITION/ELECTRICAL (KOHLER ENGINE CV14S-PS1472) Parts Diagram

Yard Tractor

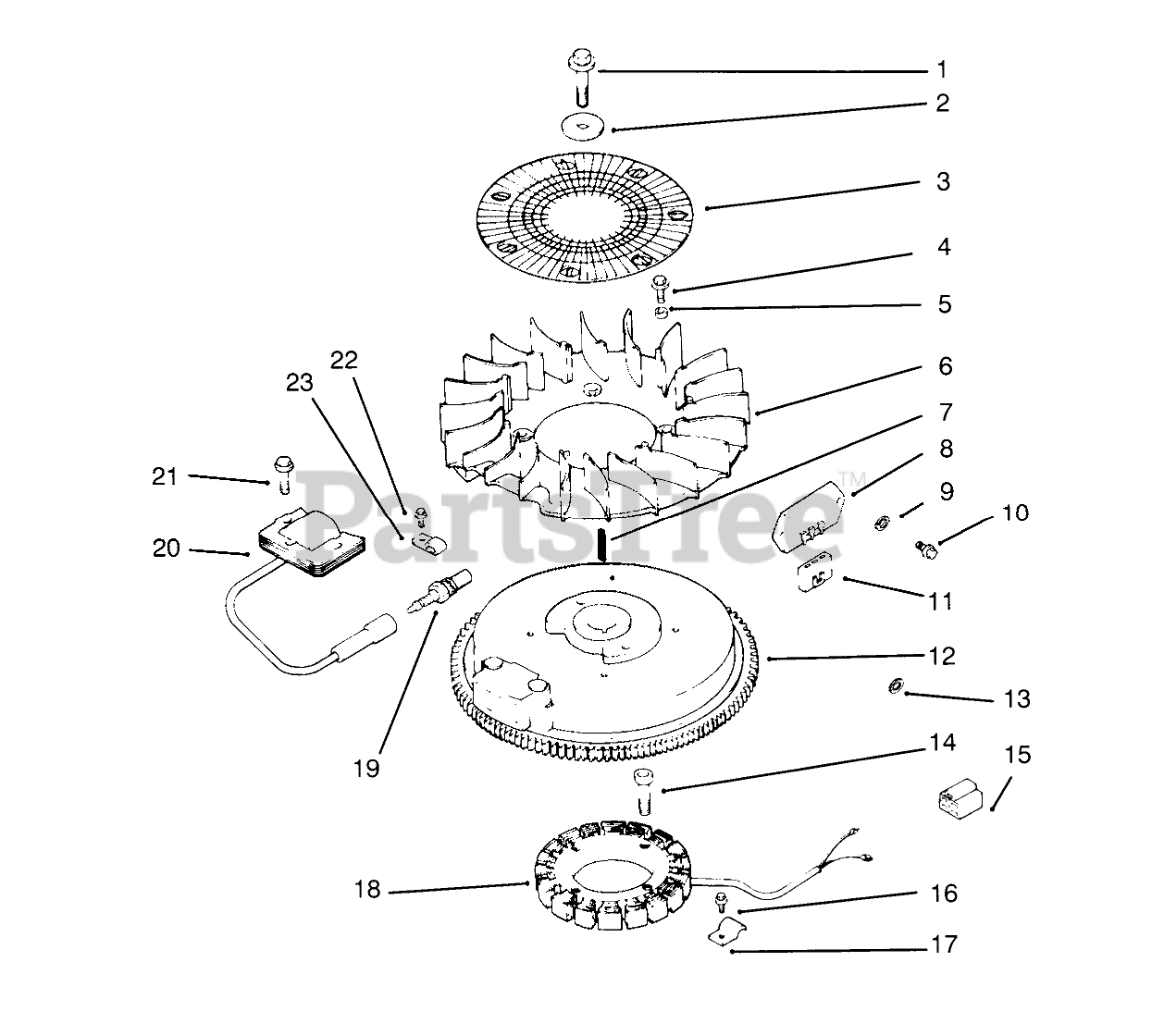

IGNITION/ELECTRICAL (KOHLER ENGINE CV14S-PS1472) Parts Diagram

  • Title

1

12_086_14

Screw-Flywheel Mounting (Only On: 72042,72043,72062,72063)

$

$

Not available

2

Toro 12_468_03

Washer-Flywheel Screw (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

3

24_162_03

Screen-Grass (Only On: 72042,72043,72062,72063)

$

$

Not available

4

Kohler M-0639016

Screw M6x1.0x16 (Only On: 72042,72043,72062,72063)
(Superseded to M-639016)

$2.49

$

Usually ships in 2-5 days

0

5

12_112_01

Spacer-Fan (Only On: 72042,72043,72062,72063)

$

$

Not available

6

12_157_02

Fan (Only On: 72042,72043,72062,72063)

$

$

Not available

7

Kohler X-42-15

Key (Only On: 72042,72043,72062,72063)
(Superseded to X-42-15-S)

$2.99

$

In Stock, Qty 9

0

8

Toro 41_403_09

Rectifier-Regulator (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

9

Kohler X-22-11

Washer-Lock (Only On: 72042,72043,72062,72063)
(Superseded to X-22-11-S)

$2.49

$

In Stock, only 3 left!

0

10

Kohler M-0639016

Screw M6x1.0x16 (Only On: 72042,72043,72062,72063)
(Superseded to M-639016)

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 236602

Connector-Regulator (Only On: 72042,72043,72062,72063)
(Superseded to 236602-S)

$7.99

$

In Stock, only 1 left!

0

12

12_025_16

Flywheel ASM (Only On: 72042,72043,72062,72063)

$

$

Not available

13

Kohler X-25-5

Washer-Flat (Only On: 72042,72043,72062,72063)
(Superseded to X-25-5-S)

$2.49

$

Usually ships in 2-5 days

0

14

Kohler M-0548025

Screw M5x0.8x25 (Only On: 72042,72043,72062,72063)
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

15

48_155_01

Connector-5 Contact (Only On: 72042,72043,72062,72063)

$

$

Not available

16

Kohler M-0545010

Screw M5x0.8x10 (Only On: 72042,72043,72062,72063)
(Superseded to M-545010)

$4.49

$

In Stock, only 3 left!

0

17

12_154_02

Clip-Stator Harness (Only On: 72042,72043,72062,72063)

$

$

Not available

18

Toro 24_085_01

Stator-15 Amp (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

19

12_132_02

Spark Plug (Only On: 72042,72043,72062,72063)

$

$

Not available

20

Toro 12_584_01

Module-Ignition (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

21

Kohler SM-0545020

Screw M5x0.8x20 (Only On: 72042,72043,72062,72063)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

22

Kohler M-0545010

Screw M5x0.8x10 (Only On: 72042,72043,72062,72063)
(Superseded to M-545010)

$4.49

$

In Stock, only 3 left!

0

23

Kohler X-728-1

Clip-Kill Lead (Only On: 72042,72043,72062,72063)
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

Toro 12_518_01

Lead-White (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable

15_518_09

Lead-Green (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Not available

Toro 25_518_05

Lead-Black (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable
