72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) HYDRO TRANSAXLE Parts Diagram

Yard Tractor

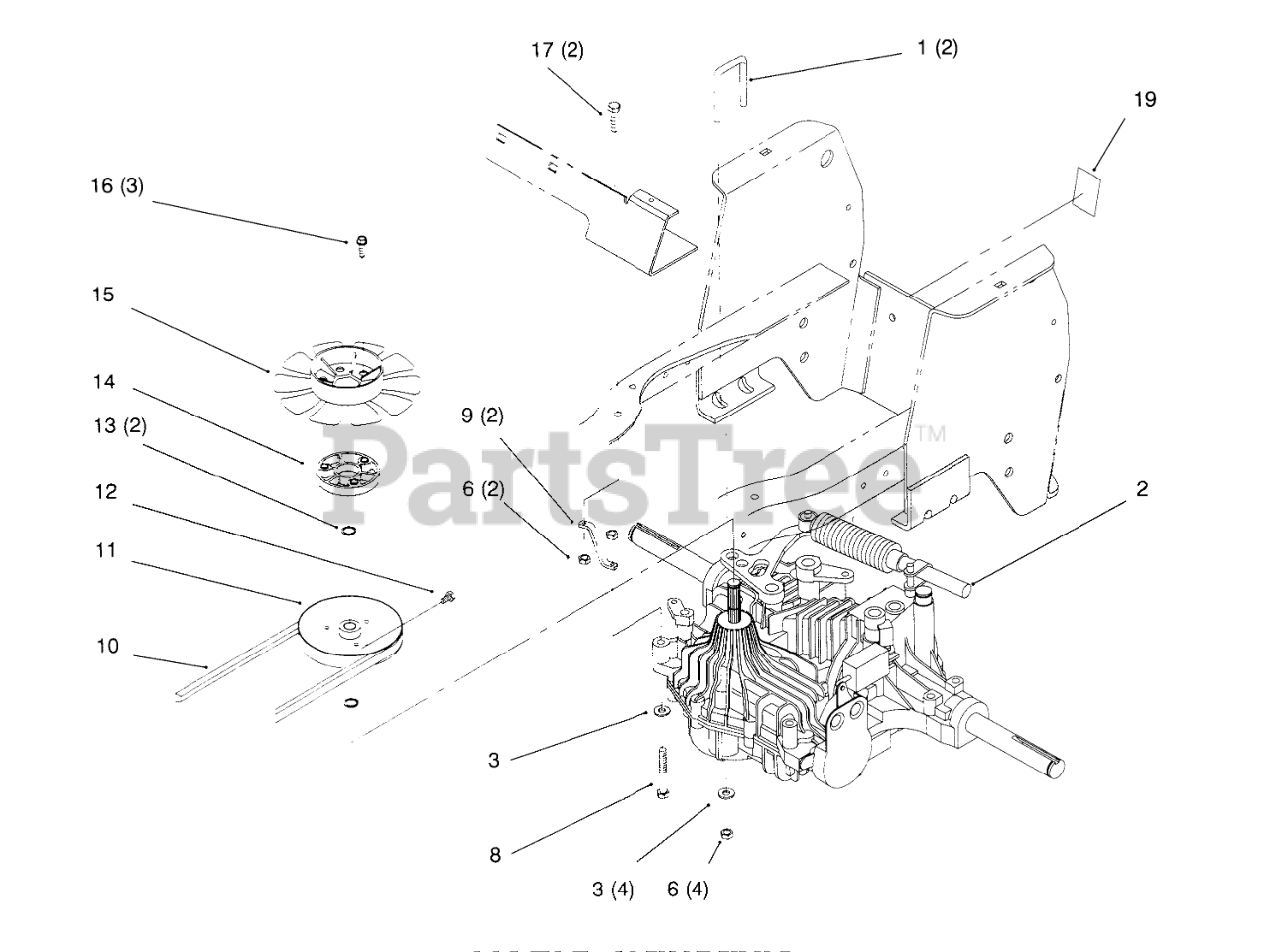

HYDRO TRANSAXLE Parts Diagram

  • Title

1

Toro 92-6769

U-Bolt (Only On: 72043,72063,72103)

$18.99

$

Usually ships in 3-6 days

0

2

Toro 92-6762

Transaxle-Tuff Torq K61 (Only On: 72043,72063,72103)
(Superseded to 105-1383)

$

$

Not available

3

Toro 3256-23

Washer-Flat (Only On: 72043,72063,72103)

$2.49

$

In Stock, Qty 20+

0

6

Toro 3296-29

Nut-Lock (Only On: 72043,72063,72103)

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-12

Screw HH (Only On: 72043,72063,72103)
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

9

Toro 93-0525-03

Strap-Torque (Only On: 72043,72063,72103)

$

$

Currently unavailable

10

Toro 92-6718

Belt-Hydro (Only On: 72043,72063,72103)
(Superseded to 92-6954)

$63.99

$

In Stock, only 2 left!

0

11

Toro 92-6686

Pulley (Only On: 72043,72063,72103)

$94.99

$

In Stock, only 1 left!

0

12

Toro 3245-32

Screw-Set (Only On: 72043,72063,72103)

$5.49

$

In Stock, only 3 left!

0

13

Toro 936118

Snap Ring (Only On: 72043,72063,72103)

$3.99

$

In Stock, only 2 left!

0

14

Toro 92-6943

Spacer-Fan (Only On: 72043,72063,72103)

$

$

Not available

15

Toro 92-6742

Fan (Only On: 72043,72063,72103)

$41.99

$

In Stock, only 1 left!

0

16

Toro 49-2040

Screw-HH (Only On: 72043,72063,72103)

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-6

Screw-HH (Only On: 72043,72063,72103)

$4.49

$

In Stock, Qty 20+

0

19

Toro 92-6726

Decal-Hydro Valve (Only On: 72043)

$

$

Not available

19

Toro 92-7090

Decal-Bypass (Only On: 72063,72103)

$

$

Not available
