72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) HEAD/VALVE/BREATHER (KOHLER ENGINE CV16S-PS61514) Parts Diagram

Yard Tractor

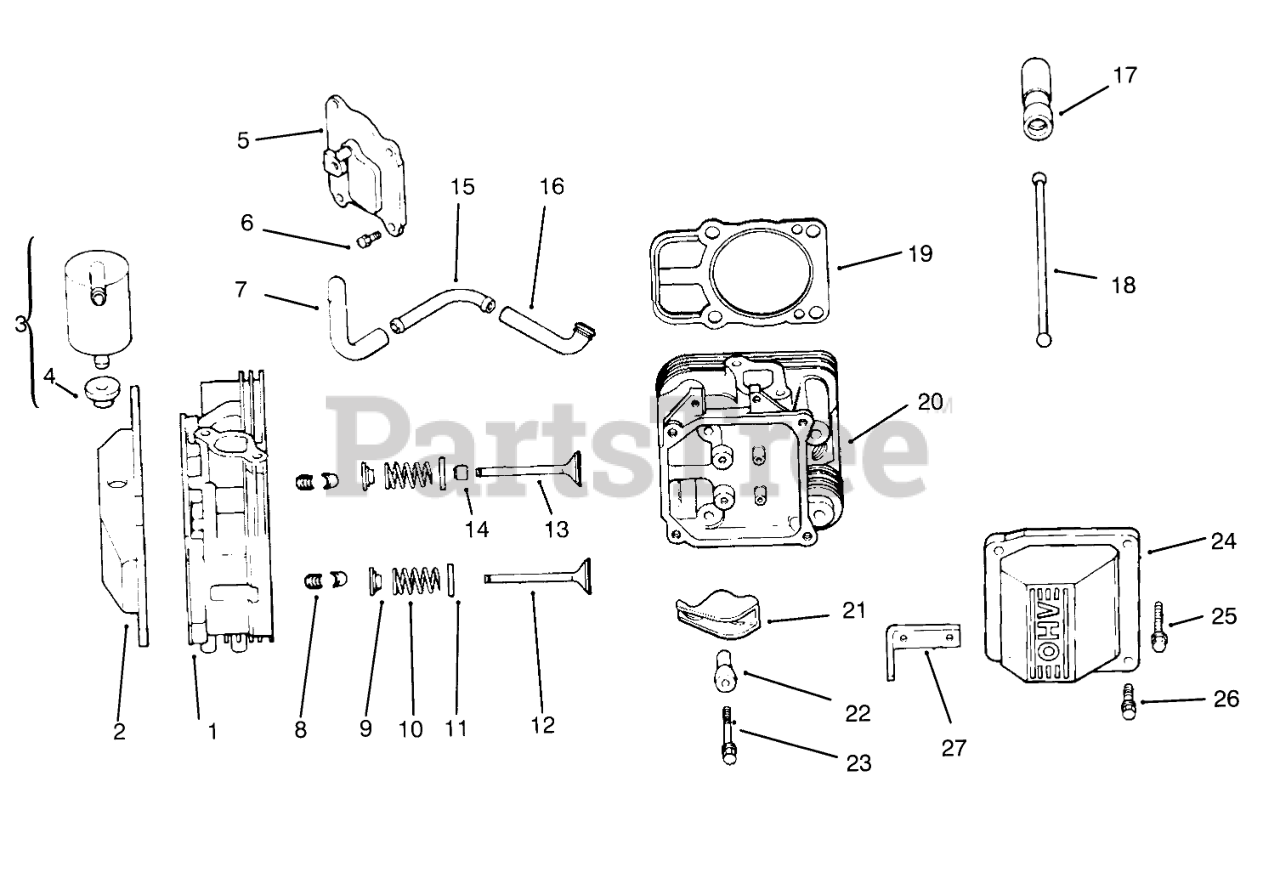

HEAD/VALVE/BREATHER (KOHLER ENGINE CV16S-PS61514) Parts Diagram

  • Title
1

24_318_11

Head ASM-#1 Cylinder (Only On: 72103)

$

$

Not available

2

Toro 24_096_16

Cover-Rocker (Only On: 72103)

$

$

Currently unavailable

3

Toro 24_755_20

Kit-Breather INCL 4 (Only On: 72103)

$

$

Currently unavailable

4

Toro 25_313_02

Grommet-Rubber (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro 24_096_15

Cover-Breather (Only On: 72103)

$

$

Currently unavailable

6

Kohler SM-0645020

Screw M6x1.0x20 (Only On: 72103)
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

7

Toro 24_326_05

Hose-Breather (Only On: 72103)

$

$

Currently unavailable

8

Toro 12_755_03

Kit-Retainer (Only On: 72103)

$

$

Currently unavailable

9

Toro 12_173_01

Cap-Valve Spring (Only On: 72103)

$

$

Currently unavailable

10

Toro 24_089_02

Spring-Valve (Only On: 72103)

$

$

Currently unavailable

11

Toro 52_018_01

Retainer-Spring (Only On: 72103)

$

$

Currently unavailable

12

Toro 24_016_01

Valve-Exhaust (Only On: 72103)

$

$

Currently unavailable

13

Toro 24_017_01

Valve-Intake (Only On: 72103)

$

$

Currently unavailable

14

Toro 24_032_05

Seal-Valve Stem (Only On: 72103)

$

$

Currently unavailable

15

Toro 24_294_02

Fitting (Only On: 72103)

$

$

Currently unavailable

16

Toro 24_326_04

Hose-Breather (Only On: 72103)

$

$

Currently unavailable

17

Toro 12_351_01

Lifter-Valve (Only On: 72103)

$

$

Currently unavailable

18

24_411_02

Rod-Push (Only On: 72103)

$

$

Not available

19

Toro 24_041_08

Gasket-Cylinder Head (Only On: 72103)

$

$

Currently unavailable

20

24_318_12

Head ASM-#2 Cylinder (Only On: 72103)

$

$

Not available

21

24_186_02

Arm-Rocker (Only On: 72103)

$

$

Not available

22

Toro 24_194_01

Ball-Rocker Pivot (Only On: 72103)

$

$

Currently unavailable

23

Kohler M-0640034

Screw M6x1.0x34 (Only On: 72103)

$

$

Not available

24

Toro 24_096_12

Cover-Rocker (Only On: 72103)

$

$

Currently unavailable

25

12_086_16

Screw M10x1.5x91 (Only On: 72103)

$

$

Not available

26

Kohler M-0651030

Screw M6x1.0x30 (Only On: 72103)
(Superseded to M-651030-S)

$

$

Not available

27

Toro 24_445_01

Strap-Lifting (Only On: 721 03)

$

$

Currently unavailable
