72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) GEAR SHIFT LINKAGE Parts Diagram

Yard Tractor

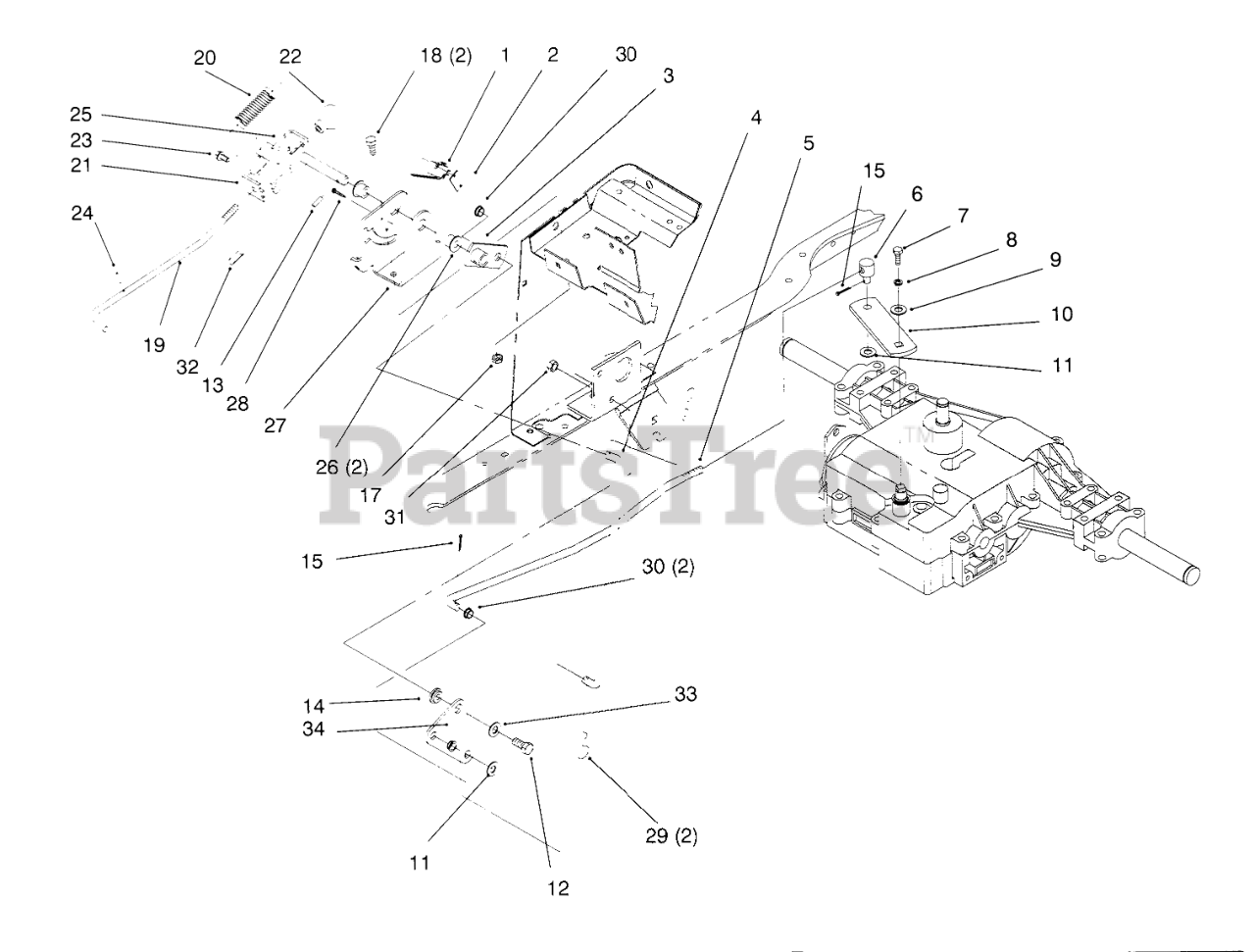

GEAR SHIFT LINKAGE Parts Diagram

  • Title

1

Toro 115230

Switch-Clutch (Only On: 72042,72062)

Note: Refer to Lawn/Yard Tractor Service Bulletin for early models with black switches (P/N, Removal, Installation).

$34.99

$

Usually ships in 3-6 days

0

2

Toro 3290-354

Nut-Speed (Only On: 72042,72062)

$10.99

$

Usually ships in 3-6 days

0

3

Toro 92-6926

Tube-Linkage (Only On: 72042,72062)
(Superseded to 92-6926-03)

$

$

Not available

4

Toro 92-7005

Rod (Only On: 72042,72062)

$

$

Not available

5

Toro 92-6896

Rod-Shift Transaxle (Only On: 72042,72062)

$

$

Not available

6

Toro 110656

Trunnion (Only On: 72042,72062)
(Superseded to 101161)

$

$

Not available

7

Toro 329-23

Screw (Only On: 72042,72062)

$5.99

$

Usually ships in 3-6 days

0

8

Toro 3253-3

Washer-Lock (Only On: 72042,72062)

$0.99

$

In Stock, Qty 20+

0

9

Toro 7-5461

Spacer-Transmission (Only On: 72042,72062)

$2.99

$

Usually ships in 3-6 days

0

10

Toro 92-6886

Arm-Shift (Only On: 72042,72062)

$

$

Not available

11

Toro 3256-24

Washer-Flat (Only On: 72042,72062)

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-5

Screw-H H (Only On: 72042,72062)

$0.99

$

In Stock, Qty 20+

0

13

Toro 32121-4

Pin-Roll (Only On: 72042,72062)

$3.99

$

Usually ships in 3-6 days

0

14

Toro 105503

Bushing (Only On: 72042,72062)

$1.49

$

In Stock, Qty 7

0

15

Toro 3272-6

Pin-Cotter (Only On: 72042,72062)

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

Nut-Lock (Only On: 72042,72062)

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-3

Screw-HH (Only On: 72042,72062)

$0.99

$

In Stock, Qty 16

0

19

Toro 92-6920

Rod-Shift (Only On: 72042,72062)

$80.99

$

In Stock, only 1 left!

0

20

Toro 3624

Spring-Compression (Only On: 72042,72062)

$4.99

$

Usually ships in 3-6 days

0

21

Toro 92-6921

Bracket-Shaft (Only On: 72042,72062)

$

$

Not available

22

Toro 233-42

Knob (Only On: 72042,72062)

$13.99

$

In Stock, only 4 left!

0

23

Toro 32144-4

Screw-TAP (Only On: 72042,72062)

$1.49

$

In Stock, Qty 20+

0

24

Toro 32121-97

Pin-Roll (Only On: 72042,72062)

$0.99

$

Usually ships in 3-6 days

0

25

Toro 92-6919

Pivot-Shift (Only On: 72042,72062)

$

$

Not available

26

Toro 256-219

Bushing (Only On: 72042,72062)

$9.49

$

In Stock, only 1 left!

0

27

Toro 93-0503-03

Bracket-Pivot Mount (Only On: 72042,72062)

$

$

Not available

28

Toro 147665

Screw (Only On: 72042,72062)
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

29

Toro 3290-307

Pin-Cotter (Only On: 72042,72062)
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

30

Toro 92-6875

Bearing-Shift Link (Only On: 72042,72062)
(Superseded to 5979)

$3.49

$

In Stock, Qty 9

0

31

Toro 3296-29

Nut-Lock (Only On: 72042,72062)

$2.49

$

In Stock, Qty 20+

0

32

Toro 93-3141

Decal-Reverse Shift (Only On: 72042)

$

$

Not available

32

Toro 93-3144

Decal-Reverse Shift (Only On: 72062)

$

$

Not available

33

Toro 3256-71

Washer-Flat (Only On: 72042,72062)

$1.49

$

In Stock, Qty 7

0

34

Toro 93-0524

Bracket-Pivot (Only On: 72042,72062)

$

$

Not available
