72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) ENGINE CONTROLS (KOHLER ENGINE CV16S-PS61514) Parts Diagram

Yard Tractor

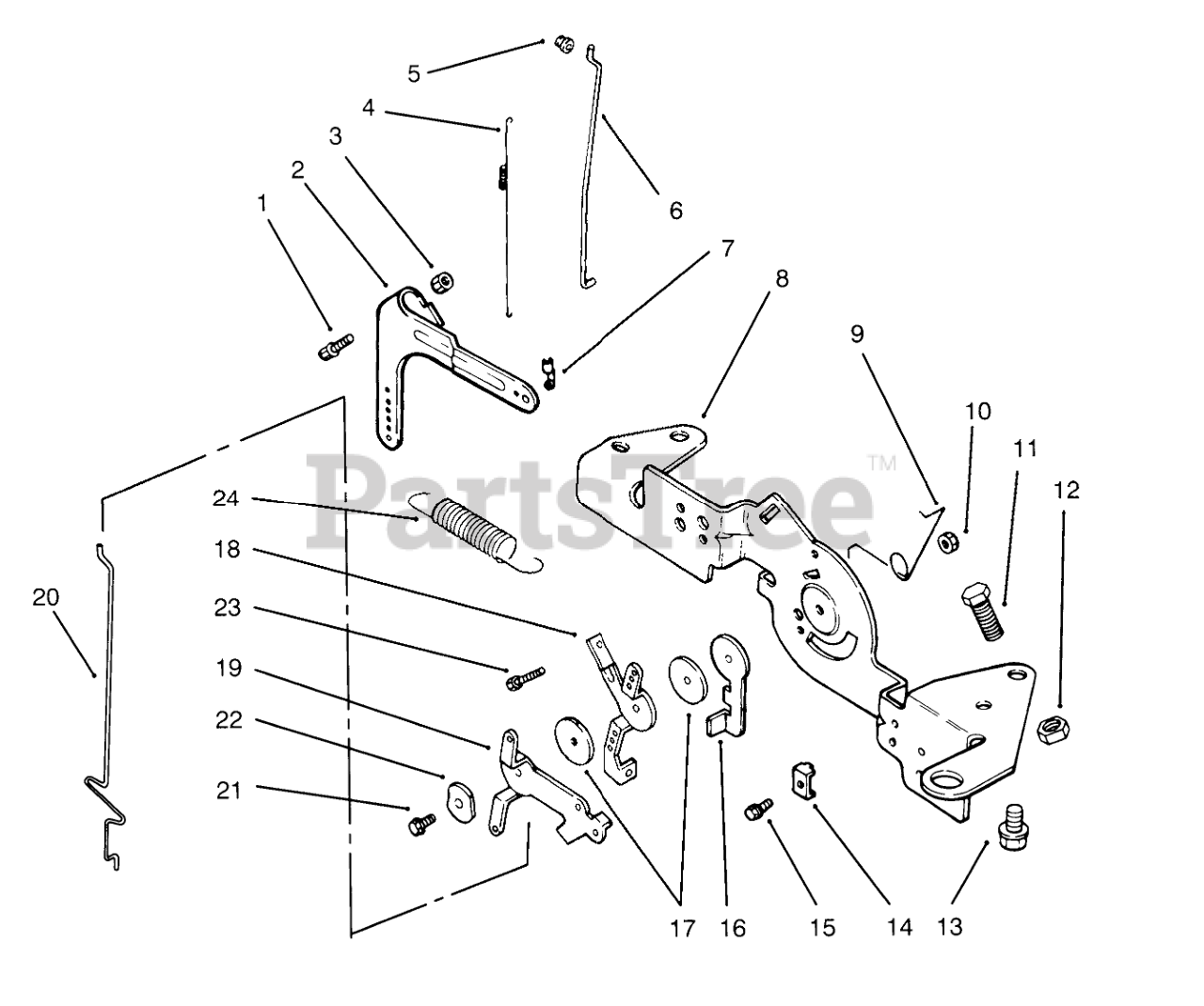

ENGINE CONTROLS (KOHLER ENGINE CV16S-PS61514) Parts Diagram

  • Title
1

Kohler SM-0642025

Screw M6x1.0x25 (Only On: 72103)
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

2

Toro 24_090_11

Lever-Governor (Only On: 72103)

$

$

Currently unavailable

3

Kohler SM-0641060

Nut M6x1.0 (Only On: 72103)

$

$

Not available

4

Toro 24_089_01

Spring-Linkage (Only On: 72103)

$

$

Currently unavailable

5

Toro 25_158_08

Bushing-Linkage (Only On: 72103)

$

$

Currently unavailable

6

Toro 24_079_04

Linkage-Throttle (Only On: 72103)

$

$

Currently unavailable

7

Toro 25_158_11

Bushing-Linkage (Only On: 72103)

$

$

Currently unavailable

8

Toro 24_126_13

Bracket-Control (Only On: 72103)

$

$

Currently unavailable

9

Toro 24_089_03

Spring-Choke Return (Only On: 72103)

$

$

Currently unavailable

10

Kohler M-0547050

Nut M5x0.8 (Only On: 72103)
(Superseded to M-547050-S)

$2.49

$

In Stock, only 2 left!

0

11

Kohler SM-0545016

Screw M5x0.8x16 (Only On: 72103)
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

12

Kohler M-0446030

Nut-Hex M4x0.7 (Only On: 72103)
(Superseded to M-446030-S)

$2.49

$

In Stock, Qty 5

0

13

Kohler SM-0645016

Screw M6x1.0x16 (Only On: 72103)
(Superseded to SM-645016)

$3.99

$

In Stock, Qty 15

0

14

Toro 12_237_01

Clamp-Cable (Only On: 72103)

$

$

Currently unavailable

15

Kohler SM-0545016

Screw M5x0.8x16 (Only On: 72103)
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

16

Toro 24_090_07

Lever-Throttle Actuator (Only On: 72103)

$

$

Currently unavailable

17

Toro 24_468_01

Washer (Only On: 72103)

$

$

Currently unavailable

18

Toro 24_090_03

Lever-Throttle Control (Only On: 72103)

$

$

Currently unavailable

19

Toro 24_090_05

Lever-Choke (Only On: 72103)

$

$

Currently unavailable

20

24_079_05

Linkage-Choke (Only On: 72103)

$

$

Not available

21

Kohler M-0545020

Screw M5x0.8x20 (Only On: 72103)

$

$

Not available

22

Toro 41_468_03

Washer-Wave (Only On: 72103)

$

$

Currently unavailable

23

Toro M-0401025

Screw M4x0.7x24 (Only On: 72103)

$

$

Currently unavailable

24

Toro 24_089_18

Spring-Governor (Only On: 72103)

$

$

Currently unavailable
