72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) CYLINDER HEAD/VALVE/BREATHER (KOHLER ENGINE CV14S-PS1472) Parts Diagram

Yard Tractor

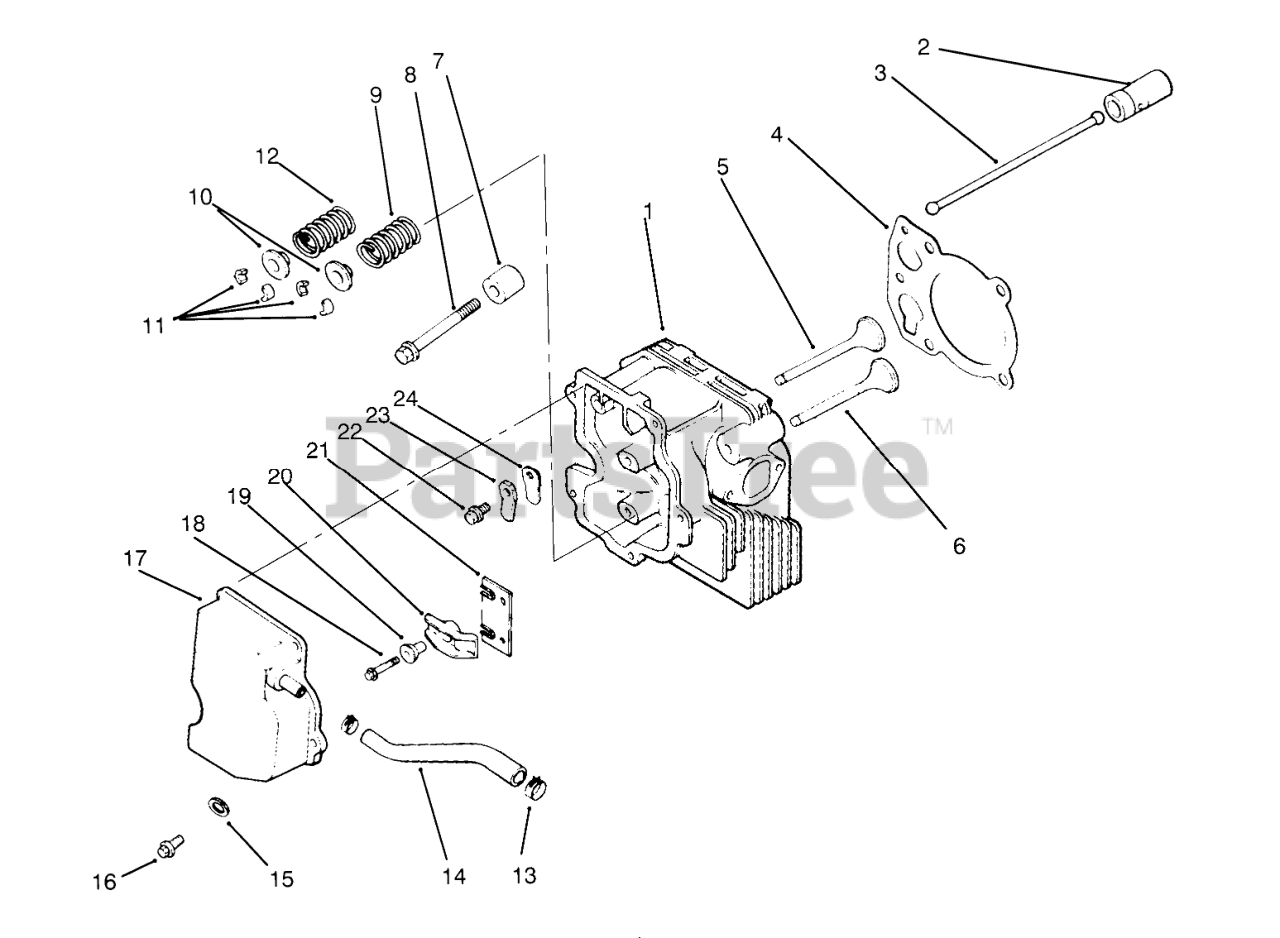

CYLINDER HEAD/VALVE/BREATHER (KOHLER ENGINE CV14S-PS1472) Parts Diagram

  • Title

1

Toro 12_318_02

Cylinder Head (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

2

Toro 12_351_01

Lifter-Valve (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

3

Toro 12_411_01

Rod-Push (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

4

12_041_08

Gasket-Cylinder Head (Only On: 72042,72043,72062,72063)

$

$

Not available

5

12_017_01

Valve-Intake STD (Only On: 72042,72043,72062,72063)

$

$

Not available

5

12_017_02

Valve-Intake .25 (Only On: 72042,72043,72062,72063)

$

$

Not available

6

12_016_01

Valve-Exhaust STD (Only On: 72042,72043,72062,72063)

$

$

Not available

6

12_016_02

Valve-Exhaust .25 (Only On: 72042,72043,72062,72063)

$

$

Not available

7

12_112_13

Spacer-Head Bolt Exhaust (Only On: 72042,72043,72062,72063)

$

$

Not available

8

12_086_15

Screw M10x1.5x80 (Only On: 72042,72043,72062,72063)

$

$

Not available

9

12_089_15

Spring-Valve Exhaust (Only On: 72042,72043,72062,72063)

$

$

Not available

10

Toro 12_173_01

Cap-Valve Spring (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

11

Toro 12_755_03

Kit-Retainer (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

12

12_089_01

Spring-Valve Intake (Only On: 72042,72043,72062,72063)

$

$

Not available

13

Kohler X-426-9

Clamp-Hose (Only On: 72042,72043,72062,72063)
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

14

12_326_03

Hose-Breather (Only On: 72042,72043,72062,72063)

$

$

Not available

15

12_468_05

Washer-Flat (Only On: 72042,72043,72062,72063)

$

$

Not available

16

Kohler SM-0645020

Screw M6x1.0x20 (Only On: 72042,72043,72062,72063)
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

17

12_096_07

Cover-Valve W/Nipple (Only On: 72042,72043,72062,72063)

$

$

Not available

18

Kohler M-0640034

Screw M6x1.0x34 (Only On: 72042,72043,72062,72063)

$

$

Not available

19

Toro 24_194_01

Ball-Rocker Pivot (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

20

Toro 24_186_01

Arm-Rocker (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

21

12_146_13

Plate-Guide (Only On: 72042,72043,72062,72063)

$

$

Not available

22

Kohler M-0545010

Screw M5x0.8x10 (Only On: 72042,72043,72062,72063)
(Superseded to M-545010)

$4.49

$

In Stock, only 3 left!

0

23

12_018_01

Retainer-Breather Reed (Only On: 72042,72043,72062,72063)

$

$

Not available

24

Toro 24_402_03

Reed-Breather (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable
