72103 (268-H) - Toro Yard Tractor (SN: 059000001 - 059000600) (1995) BATTERY Parts Diagram

Yard Tractor

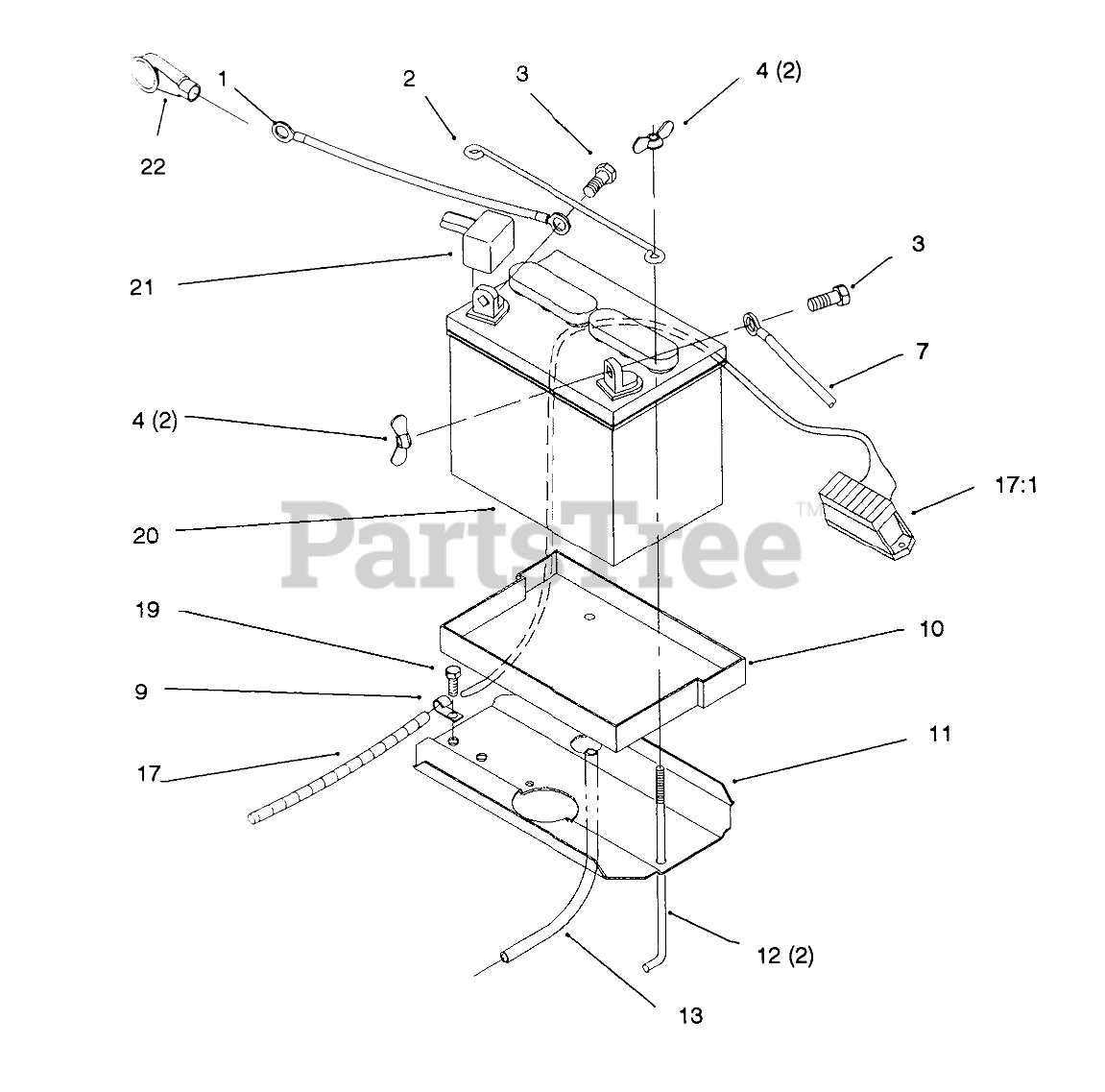

BATTERY Parts Diagram

  • Title

1

Toro 92-6989

Cable-Battery Red (Only On: 72103)

$27.99

$

Usually ships in 3-6 days

0

1

Toro 92-6990

Cable-Battery Red (Only On: 72042,72043,72062,72063)

$37.99

$

Usually ships in 3-6 days

0

2

Toro 117316

ROD-BATTERY HOLD DWN

$29.99

$

In Stock, only 1 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

7

Toro 111078

Cable-Battery Black (Only On: 72042,72043,72062,72063)

$27.99

$

Usually ships in 3-6 days

0

7

Toro 93-0324

Cable-Battery Black (Only On: 72103)

$

$

Not available

9

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

10

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 2 left!

0

11

Toro 78-68203

Plate-Battery

$

$

Currently unavailable

12

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

13

Toro 114720

TUBE-21" BATTERY DRAIN

$7.99

$

Usually ships in 3-6 days

0

17

Toro 92-6904

Harness-Wire (Only On: 72103)

$885.99

$

Usually ships in 3-6 days

0

17

Toro 92-6905

Harness-Wire (Only On: 72043,72063)

$

$

Not available

17

Toro 92-6907

Harness-Wire (Only On: 72042,72062)

$

$

Not available

17:1

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

19

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

20

Toro 105842

Battery (Only On: 72042,72043,72062,72063)
(Superseded to 104-8162)

$

$

Not available

20

Toro 115877

Battery (Only On: 72103)
(Superseded to 104-8162)

$

$

Not available

20

Toro 93-4134

Battery (Only On: 72042,72062)
(Superseded to 105-1692)

$

$

Not available

21

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

22

Toro 93-3190

Boot-Terminal Insulator (Only On: 72103)

$7.99

$

Usually ships in 3-6 days

0
