72103 (268-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) PUMP SHAFT Parts Diagram

Yard Tractor

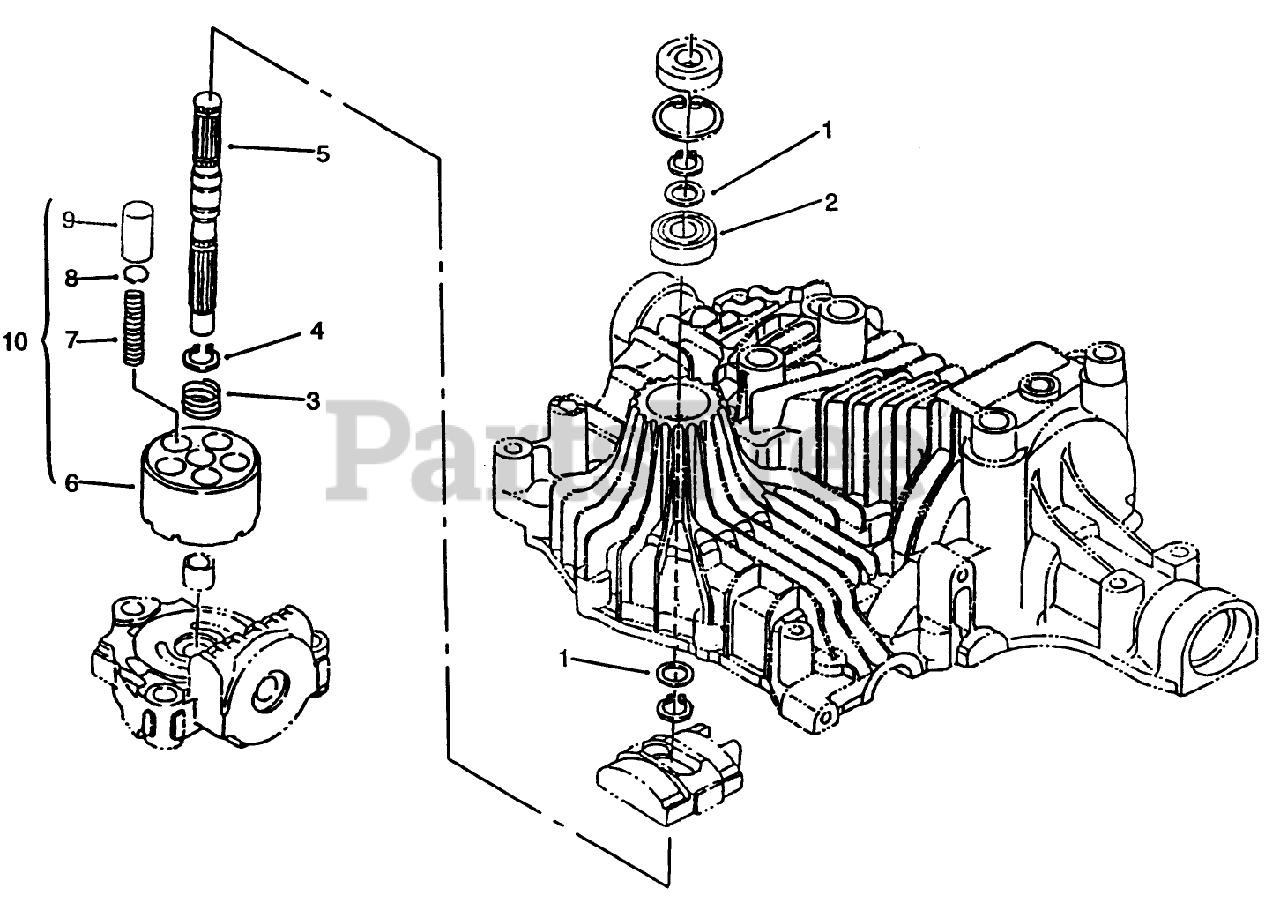

PUMP SHAFT Parts Diagram

  • Title
1

Toro 93-0371

Washer (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

2

Toro 93-0374

Bearing-Ball (Only On: 72083, 72043, 72103, 72063)

$58.99

$

Usually ships in 3-6 days

0

3

Toro 93-0370

Spring (Only On: 72083,72043,72103,72063)

$

$

Not available

4

Toro 93-0373

Ring-Snap (Only On: 72083,72043,72103, 72063)

$12.99

$

Usually ships in 3-6 days

0

5

Toro 93-0372

Shaft-Pump (Only On: 72083,72043,72103, 72063)

$

$

Not available

6

Block-Cylinder (Only On: 72083, 72043,72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

7

Spring (Only On: 72083, 72043,72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

Washer (Only On: 72083,72043,72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

9

Piston (Only On: 72083,72043,72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

10

Toro 93-0365

Cylinder ASM INC 6-9 (Only On: 72083,72043, 72103, 72063)

$

$

Not available
