72103 (268-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) HYDRO TRANSAXLE Parts Diagram

Yard Tractor

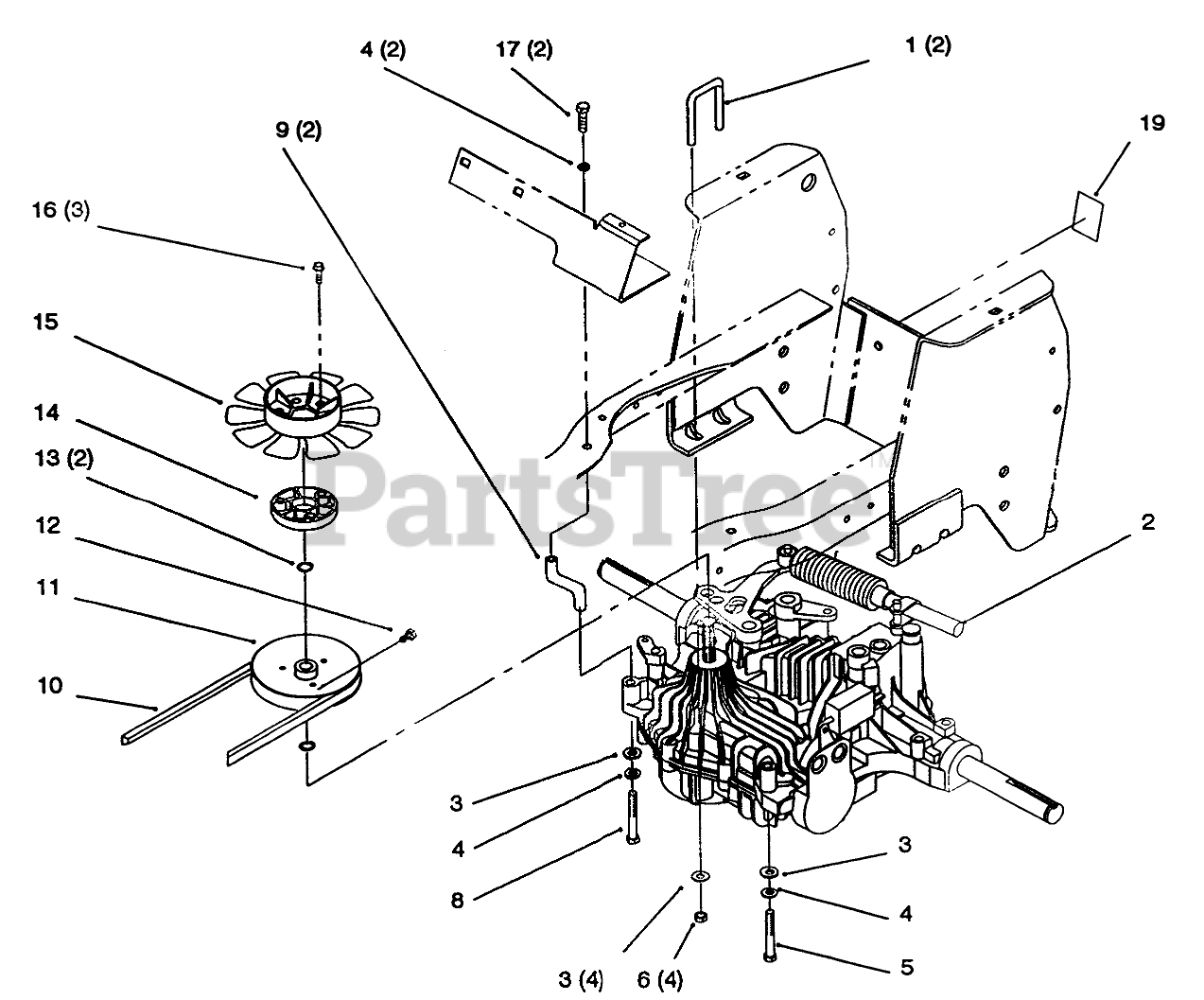

HYDRO TRANSAXLE Parts Diagram

  • Title

1

Toro 92-6769

U-Bolt (Only On: 72043,72103,7 72063, 72083)

$18.99

$

Usually ships in 3-6 days

0

2

Toro 92-6762

Transaxle-Tuff Torq K61 (Only On: 72043, 72103, 72063,72083)
(Superseded to 105-1383)

$

$

Not available

3

Toro 3256-23

Washer-Flat (Only On: 72103,72063,72083,72043)

$2.49

$

In Stock, Qty 20+

0

4

Toro 3253-4

Washer-Lock (Only On: 72043,72103,72063,72083)

$0.99

$

In Stock, Qty 20+

0

5

Toro 322-12

Screw HH (Only On: 72043,72103,72063,72083)
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

6

Toro 3296-29

Nut-Hex Lock (Only On: 72103,72063,72083,72043)

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-11

Screw-HH (Only On: 72043,72103,72063,72083)
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

9

Toro 92-6899

Strap-Torque (Only On: 72043,72103,72063,72083)

$112.99

$

Usually ships in 3-6 days

0

10

Toro 92-6718

Belt-Hydro (Only On: 72043, 72063, 72083, 72103)
(Superseded to 92-6954)

$55.99

$

In Stock, only 4 left!

0

11

Toro 92-6686

Pulley (Only On: 72043,72103,72063,72083)

$94.99

$

In Stock, only 1 left!

0

12

Toro 3245-32

Screw-Set (Only On: 72043,72103,72063,72083)

$5.49

$

In Stock, only 3 left!

0

13

Toro 936118

Snap Ring (Only On: 72043, 72103, 72063, 72083)

$3.99

$

In Stock, only 2 left!

0

14

Toro 92-6943

Spacer-Fan (Only On: 72043,72103,72063,72083)

$

$

Not available

15

Toro 92-6742

Fan (Only On: 72043,72103,72063,72083)

$41.99

$

In Stock, only 1 left!

0

16

Toro 49-2040

Screw-HH (Only On: 72043,72103,72063,72083)

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-5

Screw-HH (Only On: 72043,72103,72063,72083)

$0.99

$

In Stock, Qty 20+

0

19

Toro 92-6726

Decal-Hydro Valve (Only On: 72043,72083)

$

$

Not available

19

Toro 92-7090

Decal-Bypass (Only On: 72063,72103)

$

$

Not available
