72103 (268-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) FRAME Parts Diagram

Yard Tractor

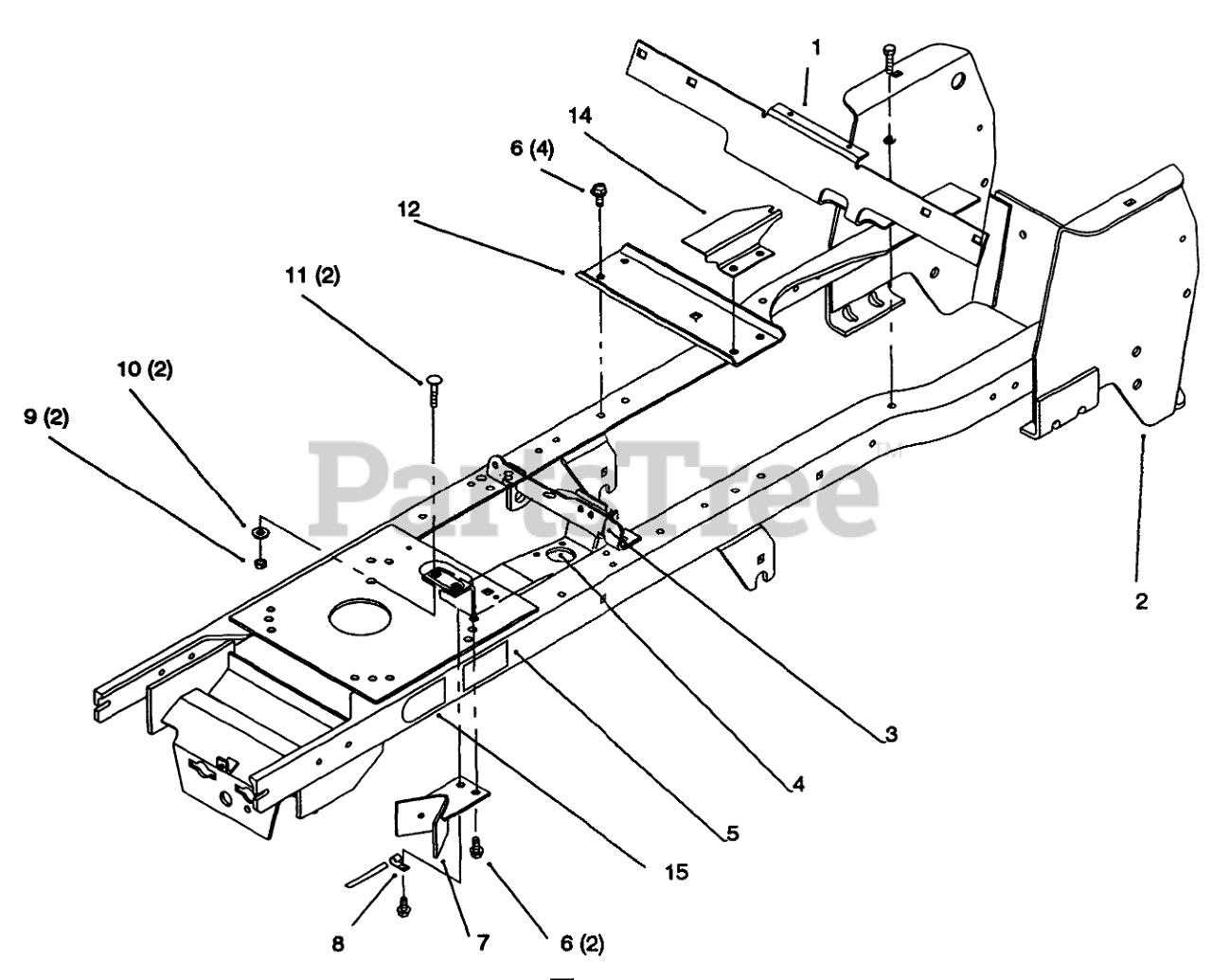

FRAME Parts Diagram

  • Title

1

Toro 92-6674-03

SUPPORT - FENDER
(Superseded to 100-1341-03)

$

$

Not available

2

Toro 92-6660-03

FRAME WA BLACK
(Superseded to 99-6772-03)

$1496.99

$

Usually ships in 3-6 days

0

3

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

4

Toro 92-6992-03

STEERING BRKT WA

$

$

Not available

5

Toro 79-6730

Decal-Belt Install (Only On: 72042, 72043, 72083)

$

$

Not available

5

Toro 79-7020

Decal-Belt Install (Only On: 72103, 72063, 72062)
(Superseded to 93-7324)

$

$

Not available

6

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

7

Toro 78-2491-03

WLDMT-PTO STOP

$46.99

$

Usually ships in 3-6 days

0

8

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

12

Toro 92-6868-03

BRACKET-IDLER PLATE

$38.99

$

Usually ships in 3-6 days

0

14

Toro 92-6964-03

BRACKET-HOC GAGE

$

$

Not available

15

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.49

$

In Stock, only 1 left!

0
