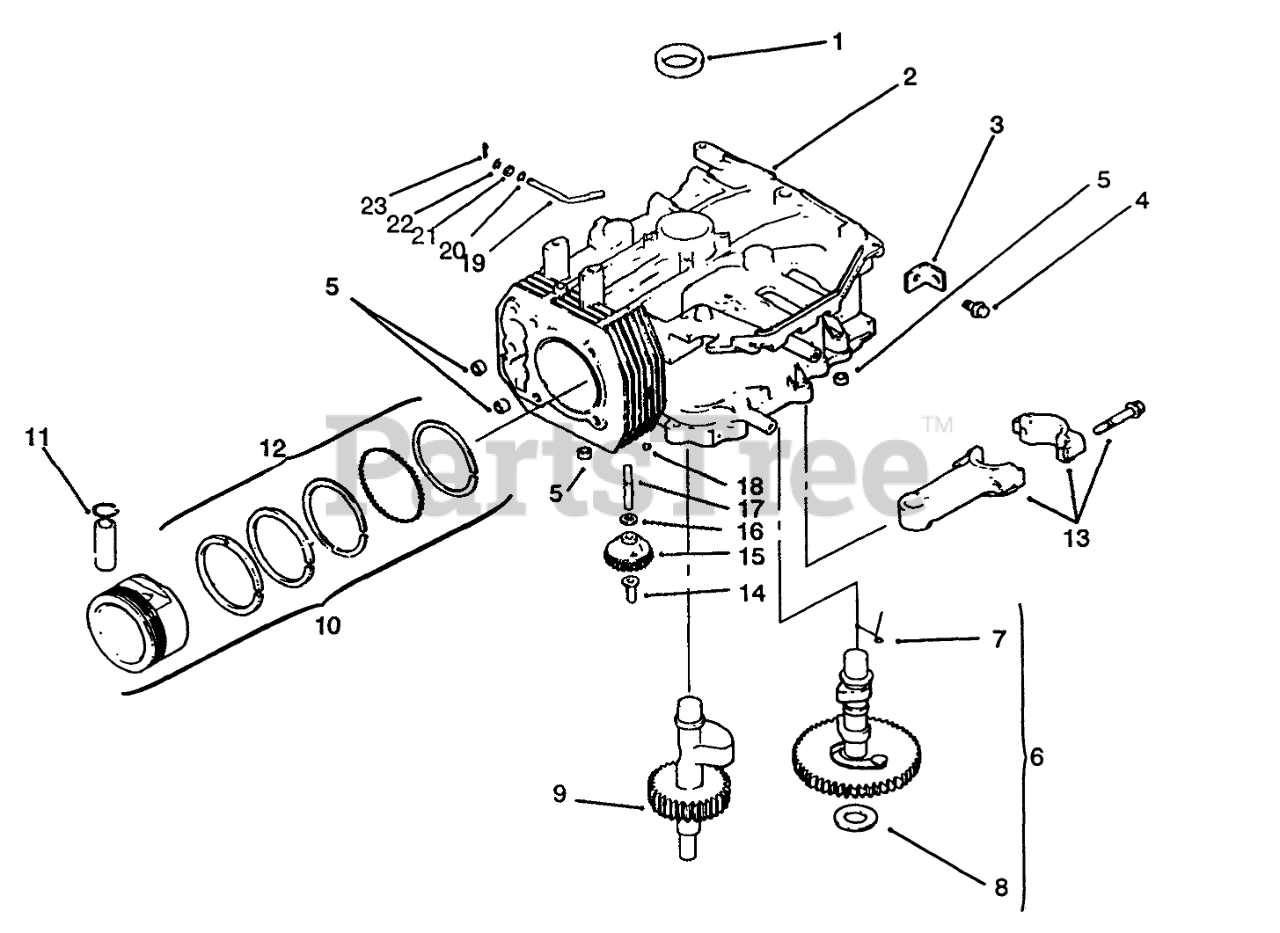

72103 (268-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) CRANKCASE Parts Diagram

Yard Tractor

CRANKCASE Parts Diagram

  • Title
1

1203203

Seal-Crankshaft (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

2

Kohler 12 522 01

Block-Short (Only On: 72042,72063, 72062, 72043)
(Superseded to 12 522 21)

Note: Not illustrated

$

$

Not available

3

1244502

Strap-lifting (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

4

Kohler M-0839025

Screw M8x1.25x22 (Only On: 72042, 72063, 72062, 72043)
(Superseded to M-839025)

$2.49

$

Usually ships in 2-5 days

0

5

1238003

Dowel-Locating (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

6

1275549

Kit-Camshaft INC 7-8 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

7

1208918

Spring-Actuating (Only On: 72042, 72063, 72062, 72043)

Note: Included in a service kit or in an assembly

$

$

Not available

8

Kohler 12 422 07

Shim-Camshaft A/R (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 422 07-S)

$4.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 08

Shim-Camshaft A/R (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 422 08-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 2 left!

0

8

Kohler 12 422 09

Shim-Camshaft A/R (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 422 09-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 10

Shim-Camshaft A/R (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 422 10-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 11

Shim-Camshaft A/R (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 422 11-S)

Note: Included in a service kit or in an assembly

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 12

Shim-Camshaft A/R (Only On: 72042, 72063, 72062 72043)
(Superseded to 12 422 12-S)

Note: Included in a service kit or in an assembly

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 12 422 13

Shim-Camshaft A/R (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 422 13-S)

Note: Included in a service kit or in an assembly

$2.99

$

Usually ships in 2-5 days

0

9

1214419

Shaft-Balance (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

10

1287401

Piston ASM STD INC 11-12 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

10

1287402

Piston ASM .25 INC 11-12 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

10

1287403

Piston ASM .50 INC 11-12 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

11

1201802

Retainer-Piston Pin (Only On: 72043, 72042, 72063, 72062)

Note: Included in a service kit or in an assembly

$

$

Not available

12

1210801

Ring Set STD (Only On: 72042, 72063, 72062, 72043)

Note: Included in a service kit or in an assembly

$

$

Not available

12

1210802

Ring Set .25 (Only On: 72043, 72042, 72063, 72062)

Note: Included in a service kit or in an assembly

$

$

Not available

12

1210803

Ring Set .50 (Only On: 72042, 72063, 72062, 72043)

Note: Included in a service kit or in an assembly

$

$

Not available

13

1206701

Connecting Rod STD (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

13

1206702

Connecting Rod .25 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

14

Kohler 12 380 01

Pin-Governor Regulating (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 380 01-S)

$3.49

$

In Stock, Qty 9

0

15

1204305

Gear-Governor ASM (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

16

Kohler SM-0631005

Washer-Governor (Only On 72042, 72063 72062, 72043)

$

$

Not available

17

Kohler 12 144 02

Shaft-Governor Gear (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 144 02-S)

$4.49

$

In Stock, Qty 8

0

18

Kohler 52 139 09

Plug-Cup (Only On: 72042, 72063, 72062, 72043)
(Superseded to 52 139 09-S)

$4.99

$

In Stock, only 2 left!

0

19

1214401

Shaft-Governor Cross (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

20

Kohler SM-0631015

Washer-Governor Shaft (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

21

1203201

Seal-Governor Shaft (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

22

X-25-10212

Washer-Flat (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

23

1238004

Pin-Governor Hitch (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

1272201

Gasket Set (Only On: 72042, 72063, 72062, 72043)

Note: Not illustrated

$

$

Not available
