72102 (269-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) DASH Parts Diagram

Lawn & Garden Tractor

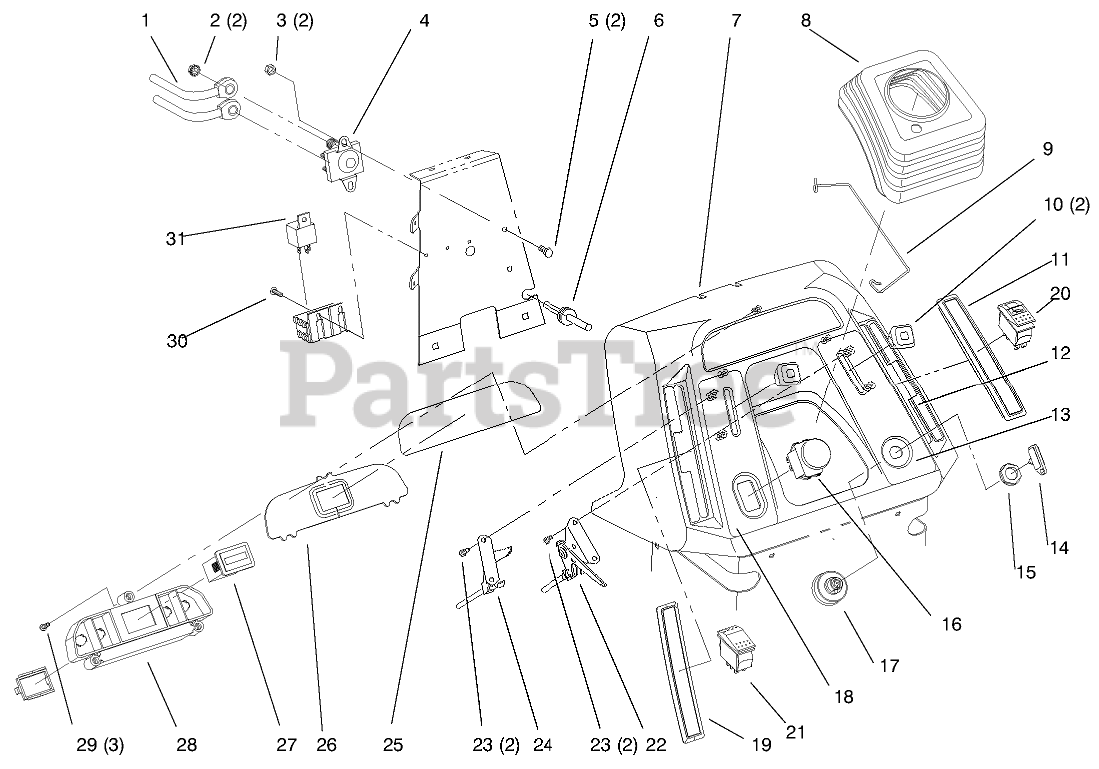

DASH Parts Diagram

  • Title

7

Toro 94-1894

DASH

$379.99

$

Usually ships in 3-6 days

0

8

Toro 92-6680

BOOT-STEERING

$

$

Not available

9

Toro 94-2966

CLIP-BOOT

$

$

Not available

10

Toro 66-0120

KNOB

$6.49

$

In Stock, only 2 left!

0

11

Toro 93-0516

COVER-SLOT, RH

$

$

Not available

13

Toro 92-6721

DECAL-THROTTLE, IGNITION

$

$

Not available

14

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 15

0

15

Toro 700919

NUT

$6.49

$

In Stock, only 2 left!

0

16

Toro 93-9998

SWITCH-PTO

$47.99

$

In Stock, Qty 15

0

17

Toro 92-6785

SWITCH-IGNITION

$91.99

$

In Stock, only 2 left!

0

18

Toro 92-6720

DECAL-PTO / CHOKE
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

19

Toro 94-1710

COVER-LIFT

$

$

Not available

20

Toro 93-0527

SWITCH-CRUISE

$147.99

$

Usually ships in 3-6 days

0

21

Toro 94-1742

SWITCH
(Superseded to 109-4813)

$62.99

$

In Stock, only 1 left!

0

22

Toro 92-6784

CONTROL-THROTTLE (TWIN)

$133.99

$

Usually ships in 3-6 days

0

23

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

24

Toro 92-6783

CONTROL-CHOKE (TWIN)

$

$

Not available

25

Toro 93-7308

DECAL - DASH LENS

$33.99

$

Usually ships in 3-6 days

0

26

Toro 92-6705

LENS-DASH

$

$

Not available

27

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$74.99

$

In Stock, Qty 5

0

28

Toro 93-8452

6 LIGHT HOUSING

$760.99

$

Usually ships in 3-6 days

0

29

Toro 94-6961

SCREW

$1.49

$

In Stock, Qty 20+

0

30

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

31

Toro 116397

RELAY

$42.99

$

In Stock, only 2 left!

0

Toro 94-1714

HOUSING-LIGHT

$

$

Not available
