72102 (269-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) BLOWER HOUSING & BAFFLES Parts Diagram

Lawn & Garden Tractor

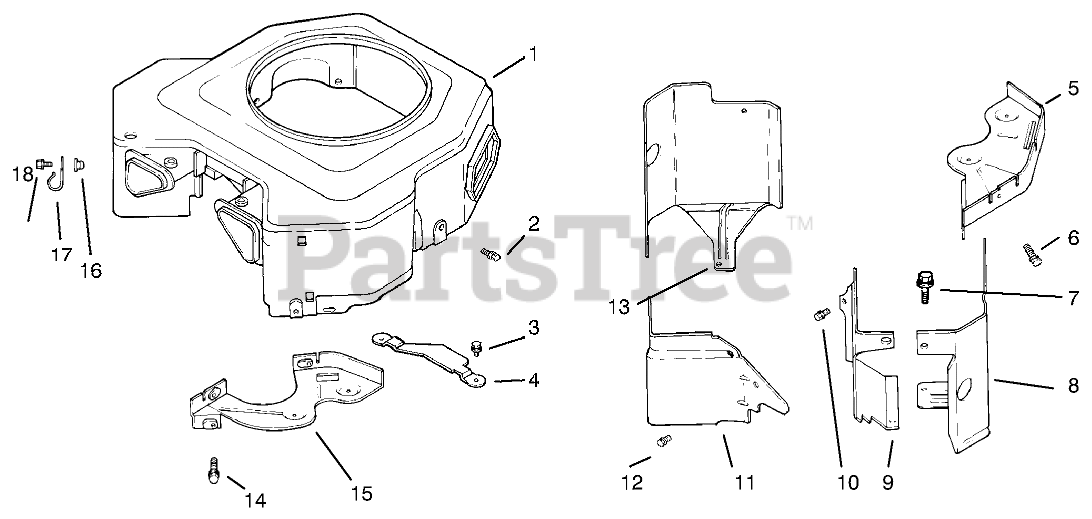

BLOWER HOUSING & BAFFLES Parts Diagram

  • Title

1

Kohler 24 027 20

Blower Housing ASM
(Superseded to 24 027 477-S)

$111.99

$

Usually ships in 2-5 days

0

2

Kohler M-0549016

Screw

$

$

Not available

3

Kohler M-0645016

Screw
(Superseded to M-645016)

$3.99

$

In Stock, Qty 13

0

4

Toro 2431405

Guard-Flywheel

$

$

Currently unavailable

5

2414602

Plate-Backing #2 Side

$

$

Not available

6

Kohler M-0545020

Screw

$

$

Not available

7

Kohler M-0551016

Screw
(Superseded to M-551016-S)

$2.49

$

In Stock, only 2 left!

0

8

Kohler 24 063 20

Baffle-Cylinder, #2
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

9

2406323

Baffle-Valley #1 Side

$

$

Not available

10

Kohler M-0549010

Screw
(Superseded to M-545010-S)

$4.49

$

In Stock, only 3 left!

0

11

2406314

Baffle-Valley #2 Side

$

$

Not available

12

Kohler M-0549016

Screw

$

$

Not available

13

2406330

Baffle-Cyl. #1 Side

$

$

Not available

14

Kohler M-0649016

Screw
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

15

2414608

Plate-Backing #1

$

$

Not available

16

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

17

Kohler 47 154 01

Clamp
(Superseded to 47 154 01-S)

$5.49

$

In Stock, only 4 left!

0

18

2408612

Screw

$

$

Not available

Kohler 24 100 02

Nut-Plastic
(Superseded to 24 100 02-S)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

2411310

Decal-Horsepower

Note: Not illustrated

$

$

Not available

24411301

Decal-Horsepower

Note: Not illustrated

$

$

Not available

Kohler 25 139 16

Plug-Button
(Superseded to 25 139 16-S)

Note: Not illustrated

$4.49

$

Usually ships in 2-5 days

0
