72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) TWIN CYLINDER ENGINE, MUFFLER, AND P.T.O. Parts Diagram

Lawn & Garden Tractor

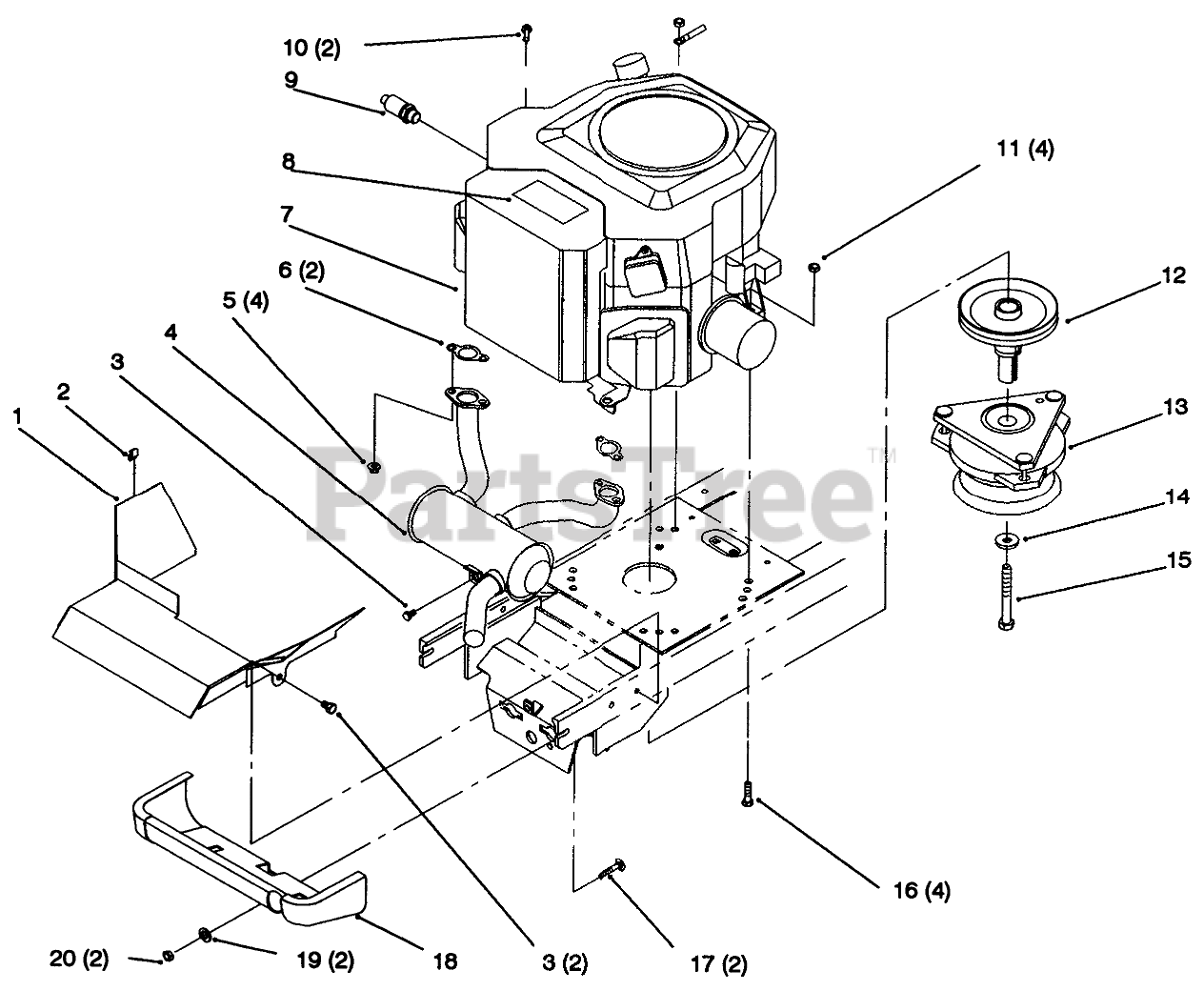

TWIN CYLINDER ENGINE, MUFFLER, AND P.T.O. Parts Diagram

  • Title

1

Toro 94-6950-04

Muffler Baffle ASM

$

$

Currently unavailable

2

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

3

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

4

Toro 92-6861

Muffler
(Superseded to 98-9003)

$

$

Not available

5

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

6

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

7

Toro 94-3514

ENGINE - KOHLER 20

$7619.99

$

Usually ships in 3-6 days

0

8

Toro 94-3389

Decal-Toro Power Plus 19

$

$

Currently unavailable

9

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

10

Toro 32144-118

SCREW-PPH

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 92-6888

PULLEY-ENGINE

$199.99

$

Usually ships in 3-6 days

0

13

Toro 94-2514

CLUTCH - PTO

$1065.99

$

Usually ships in 3-6 days

0

14

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

15

Toro 9114466

SCREW-HH

$90.99

$

Usually ships in 3-6 days

0

16

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

17

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

18

Toro 92-6867-01

Shield-Muffler
(Superseded to 100-3541-01)

$

$

Not available

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0
