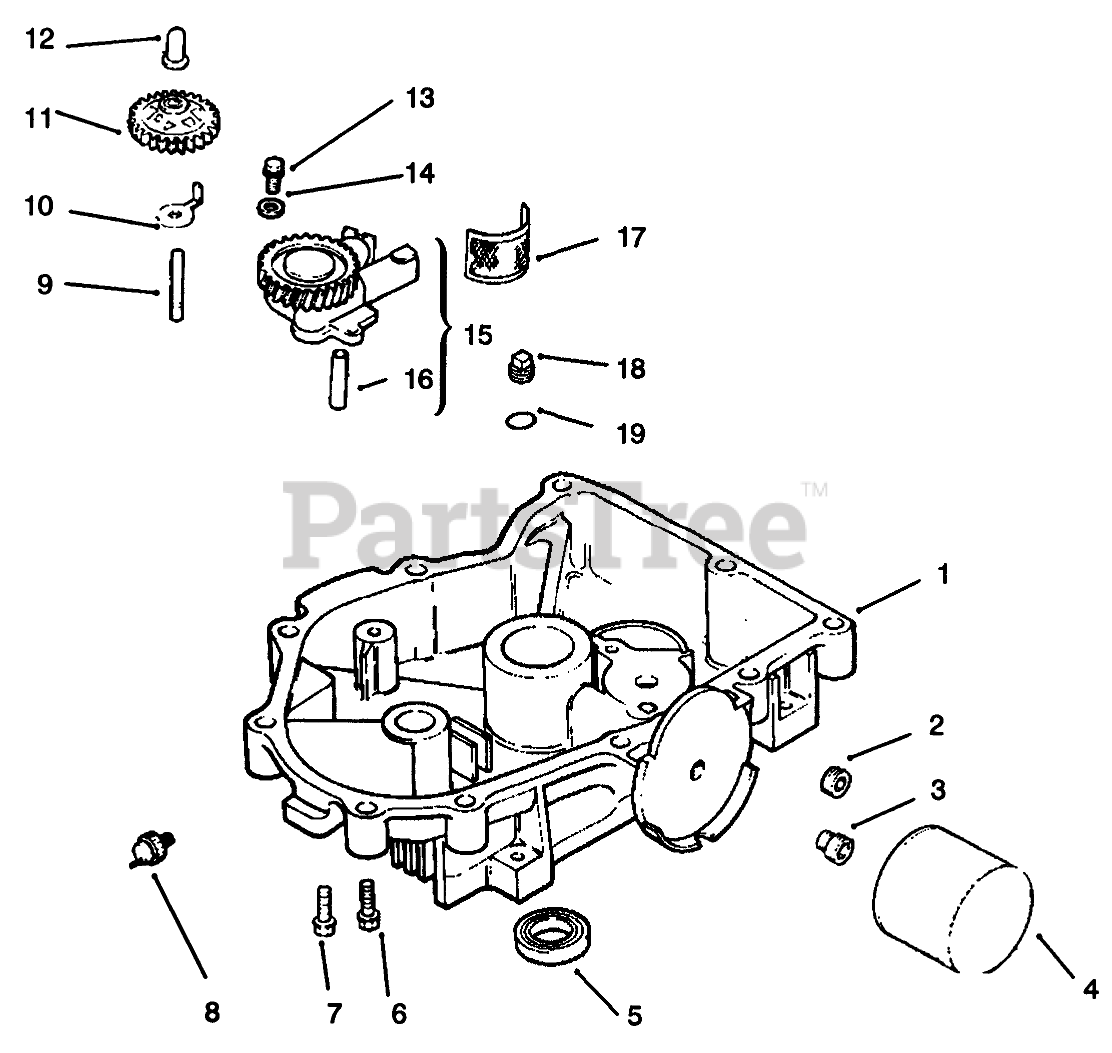

72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) OIL PAN/LUBRICATION Parts Diagram

Lawn & Garden Tractor

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

24_199_07

Oil Pan

$

$

Not available

2

Kohler X-75-32

Plug-Hex
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

3

Toro 24_136_01

Nipple-Oil Filter

$

$

Currently unavailable

4

12_050_01

Filter-Oil

$

$

Not available

5

Toro 52_032_08

Seal-Oil

$

$

Currently unavailable

6

24_086_17

Screw M8 x 1.25 x 45

$

$

Not available

7

Toro 24_086_16

Screw

$

$

Currently unavailable

8

Toro 52_099_06

Switch-Oil Pressure

$

$

Currently unavailable

9

12_144_02

Shaft-Govenor Gear

$

$

Not available

10

Toro 52_448_02

Tab-Locking

$

$

Currently unavailable

11

Toro 24_043_12

Governor Gear ASM

$

$

Currently unavailable

12

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

13

Toro M4645025

Screw-Valve Cover

$

$

Currently unavailable

14

Toro M0631005

Washer-Governor

$

$

Currently unavailable

15

24_393_08

Oil Pump ASM INC 16

$

$

Not available

16

24_123_05

Tube-Oil Pickup

Note: Included in a service kit or in an assembly

$

$

Not available

17

12_162_07

Screen-Oil Pickup

$

$

Not available

18

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

19

Toro 24_153_08

O Ring

$

$

Currently unavailable

25_113_05

Decal-Oil Sentry

Note: Not illustrated

$

$

Not available
