72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) HYDRO BRAKE Parts Diagram

Lawn & Garden Tractor

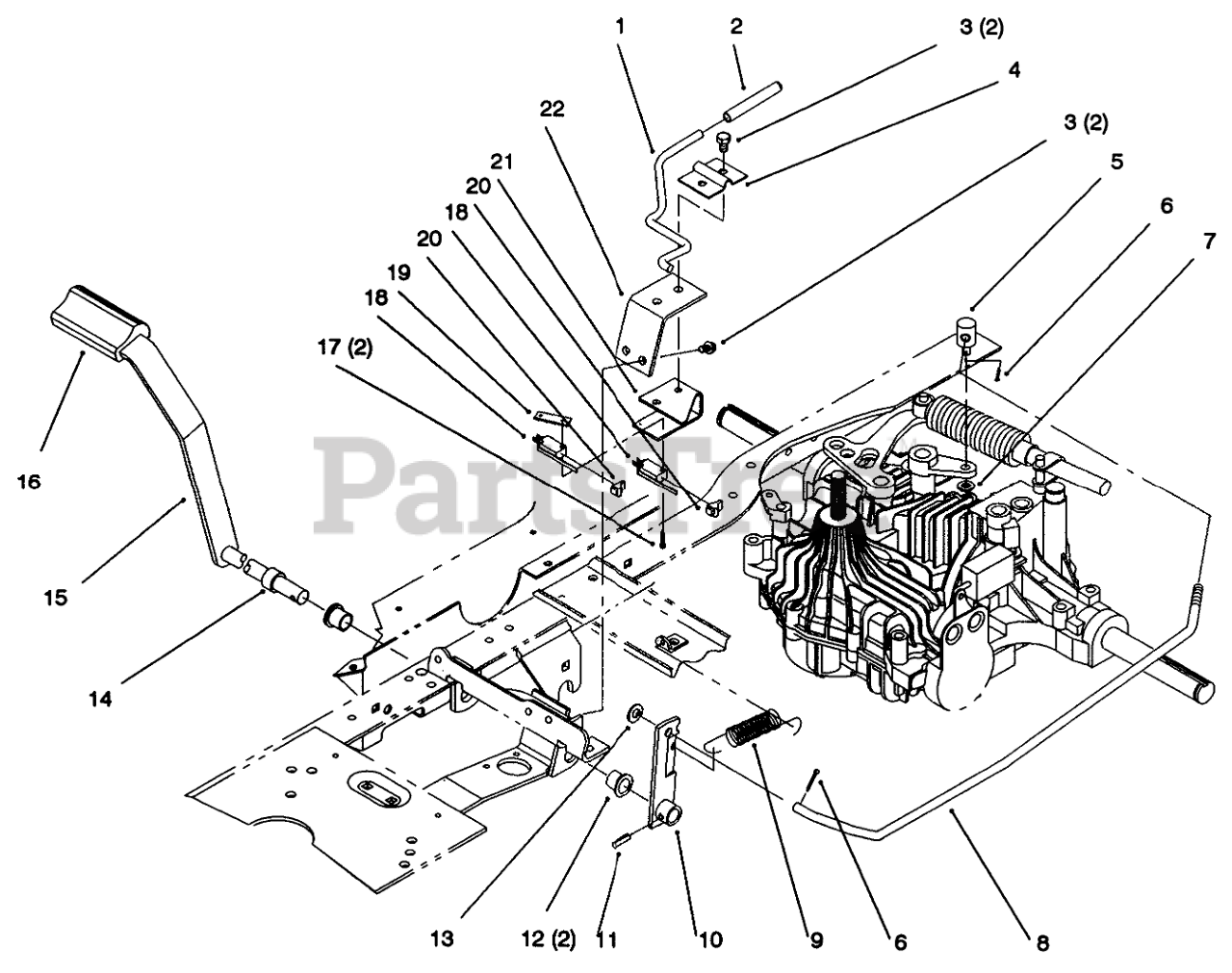

HYDRO BRAKE Parts Diagram

  • Title

1

Toro 93-3167

ROD - PARKING BRAKE

$

$

Not available

2

Toro 92-7009

GRIP - PARKING BRAKE

$

$

Not available

3

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

4

Toro 92-7000-04

Bracket-Park Brake

$

$

Currently unavailable

5

Toro 92-6968

TRUNNION - BRAKE

$46.99

$

Usually ships in 3-6 days

0

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 92-6988

ROD - BRAKE

$

$

Not available

9

Toro 93-0540

SPRING-EXTENSION

$

$

Not available

10

Toro 94-1722-04

Lever-Brake

$

$

Currently unavailable

11

Toro 32121-69

PIN-SPRING

$2.49

$

In Stock, Qty 5

0

12

Toro 256-90

BUSHING-FLANGE

$4.49

$

In Stock, only 3 left!

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 92-6982

SPACER-BRAKE

$

$

Not available

15

Toro 94-4233-04

Brake Pedal Wa

$

$

Currently unavailable

16

Toro 65-2920

PAD-PEDAL

$42.99

$

Usually ships in 3-6 days

0

16

Toro 92-6949

Tube-Brake

$27.99

$

Usually ships in 3-6 days

0

16

Toro 94-1720

Lever-Brake
(Superseded to 94-1722-03)

$

$

Not available

17

Toro 93-0539

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

18

Toro 88-9932

SWITCH-MICRO

$39.99

$

In Stock, only 2 left!

0

19

Toro 3290-354

NUT-SPEED

$11.99

$

Usually ships in 3-6 days

0

20

Toro 93-3240

PLUNGER-SEAL

$

$

Not available

21

Toro 93-0520-04

Bracket-Micro Sw

$

$

Currently unavailable

22

Toro 92-7004-04

Support-Park Brake

$

$

Currently unavailable
