72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) FUEL SYSTEM Parts Diagram

Lawn & Garden Tractor

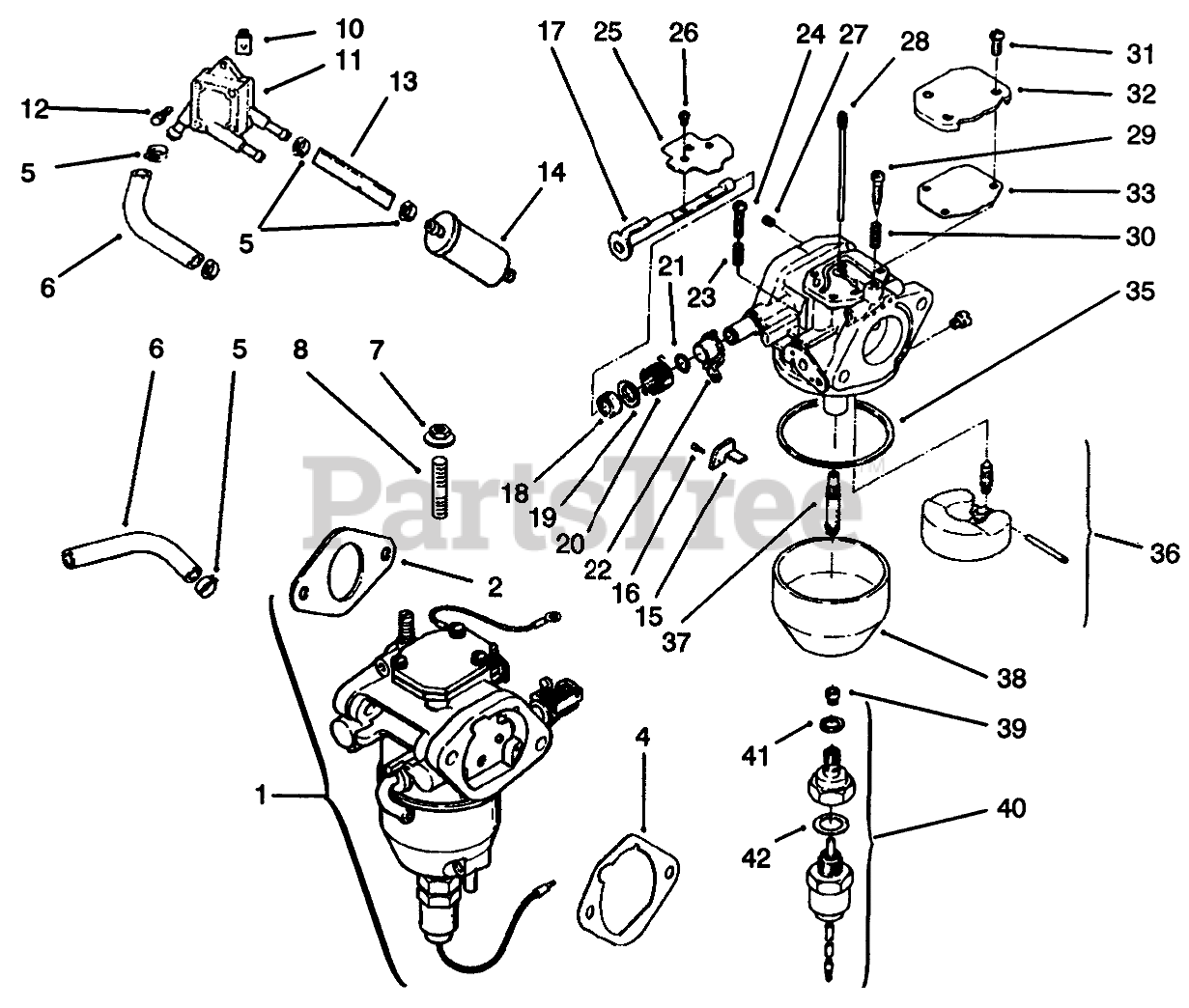

FUEL SYSTEM Parts Diagram

  • Title

2

Toro 24_041_15

Gasket-Carburetor

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

4

24_041_14

Gasket-A/C Base

Note: Included in a service kit or in an assembly

$

$

Not available

5

Toro X-426-9

Clamp

$

$

Currently unavailable

6

24_353_03

Line-Fuel 10 1/2"

$

$

Not available

7

Toro M-0641060

Nut

$

$

Currently unavailable

8

Toro M-0629095

Stud

$

$

Currently unavailable

10

Toro 24_100_01

Nut

$

$

Currently unavailable

11

Toro 24_393_04

Pump-Fuel

$

$

Currently unavailable

12

Toro 24_086_12

Screw

$

$

Currently unavailable

13

Toro 25_353_15

Line-Fuel 3 1/2"

$

$

Currently unavailable

14

Toro 25_050_02

Filter-Fuel

$

$

Currently unavailable

15

24_126_29

Bracket-Throttle Stop

Note: Included in a service kit or in an assembly

$

$

Not available

16

Toro M-0259006

Screw

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

17

24_144_15

Shaft-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

18

24_468_05

Washer

Note: Included in a service kit or in an assembly

$

$

Not available

19

24_241_01

Collar-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

20

24_089_22

Spring-Choke Return

Note: Included in a service kit or in an assembly

$

$

Not available

21

Toro 24_141_04

Ring-Choke Lever

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

22

Toro 24_090_10

Lever-Choke

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

23

24_089_24

Spring-Throttle Screw

Note: Included in a service kit or in an assembly

$

$

Not available

24

24_086_19

Screw-Throttle Adjust

Note: Included in a service kit or in an assembly

$

$

Not available

25

24_146_13

Valve-Choke

$

$

Not available

26

24_086_20

Screw-Throttle Shaft

Note: Included in a service kit or in an assembly

$

$

Not available

27

Toro 24_337_27

Jet-Air Bleed

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

28

Toro 24_337_11

Jet-Slow

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

29

24_086_22

Screw-Idle Adjust

Note: Included in a service kit or in an assembly

$

$

Not available

30

Toro 24_089_23

Spring-Idle Adjust Screw

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

31

Toro 24_086_21

Screw

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

32

24_096_13

Cover-Passage

Note: Included in a service kit or in an assembly

$

$

Not available

33

24_041_18

Gasket-Passage Cover

Note: Included in a service kit or in an assembly

$

$

Not available

35

Toro 24_041_19

Gasket-Float Chamber

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

36

Toro 24_757_05

Kit-Float Repair

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

37

24_369_01

Nozzle-Main

Note: Included in a service kit or in an assembly

$

$

Not available

38

Toro 24_234_01

Chamber-Float

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

39

Toro 24_337_20

Jet-Main

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

40

24_755_15

Kit-Solenoid INC 41-42

Note: Included in a service kit or in an assembly

$

$

Not available

41

Toro 24_041_21

Gasket-Chamber Screw

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

42

24_041_20

Gasket-Solenoid

Note: Included in a service kit or in an assembly

$

$

Not available

Toro 24_041_15

Gasket-Carburetor

Note: Not illustrated

$

$

Currently unavailable

Toro 24_063_22

Baffle-Carburetor

Note: Not illustrated

$

$

Currently unavailable

Toro 24_755_25

Kit-Hi Alt 1500-3000 M

Note: Not illustrated

$

$

Currently unavailable

24_755_26

Kit-Hi Alt Over 3000 M

Note: Not illustrated

$

$

Not available

24_757_06

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available
