72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) ENGINE CONTROLS Parts Diagram

Lawn & Garden Tractor

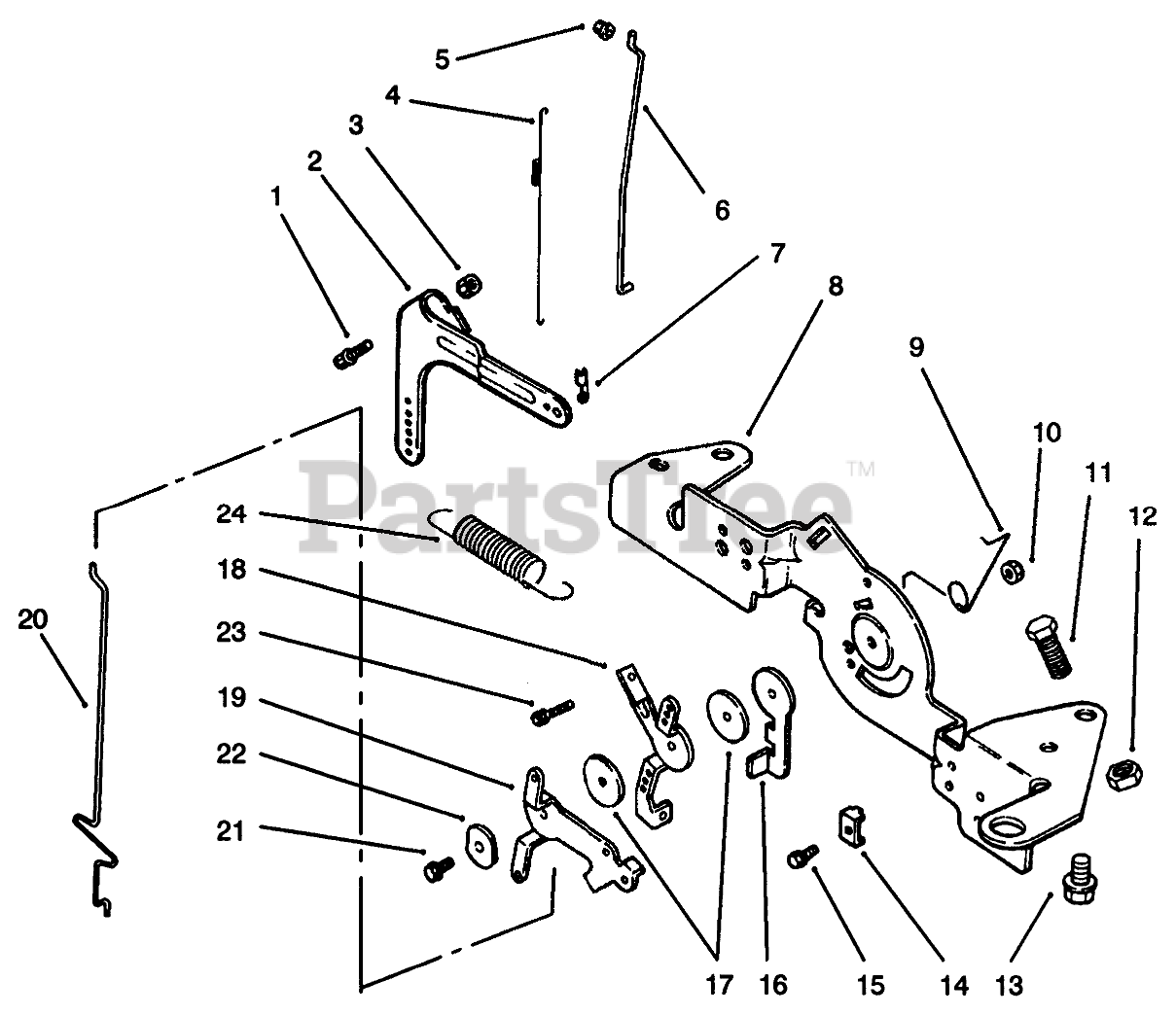

ENGINE CONTROLS Parts Diagram

  • Title

1

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

2

Toro 24_090_14

Lever-Governor

$

$

Currently unavailable

3

Kohler M-0641060

Nut
(Superseded to M-641060)

$4.49

$

In Stock, Qty 9

0

4

Toro 24_089_01

Spring-Linkage

$

$

Currently unavailable

5

Toro 25_158_08

Bushing

$

$

Currently unavailable

6

Toro 24_079_04

Linkage-Throttle

$

$

Currently unavailable

7

Toro 25_158_11

Bushing-Linkage

$

$

Currently unavailable

8

Toro 24_126_13

Bracket-Control

$

$

Currently unavailable

9

Toro 24_089_03

Spring-Choke Return

$

$

Currently unavailable

10

Kohler M-0547050

Nut
(Superseded to M-547050-S)

$2.49

$

In Stock, only 2 left!

0

11

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

12

Kohler M-0446030

Nut
(Superseded to M-446030-S)

$2.49

$

In Stock, only 4 left!

0

13

Kohler SM-0645016

Screw
(Superseded to SM-645016)

$3.99

$

In Stock, Qty 14

0

14

Toro 12_237_01

Clamp

$

$

Currently unavailable

15

Kohler SM-0545016

Screw
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

16

Toro 24_090_07

Lever-Throttle Actuator

$

$

Currently unavailable

17

Toro 24_468_01

Washer

$

$

Currently unavailable

18

Toro 24_090_03

Lever-Throttle Control

$

$

Currently unavailable

19

Toro 24_090_05

Lever-Choke

$

$

Currently unavailable

20

24_079_05

Linkage-Choke

$

$

Not available

21

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 5

0

22

Toro 41_468_03

Washer-Wave

$

$

Currently unavailable

23

Kohler M-0403025

Screw-Hex.
(Superseded to M-403025-S)

$4.99

$

In Stock, only 1 left!

0

24

24_089_15

Spring-Governor

$

$

Not available
