72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) CRANKCASE Parts Diagram

Lawn & Garden Tractor

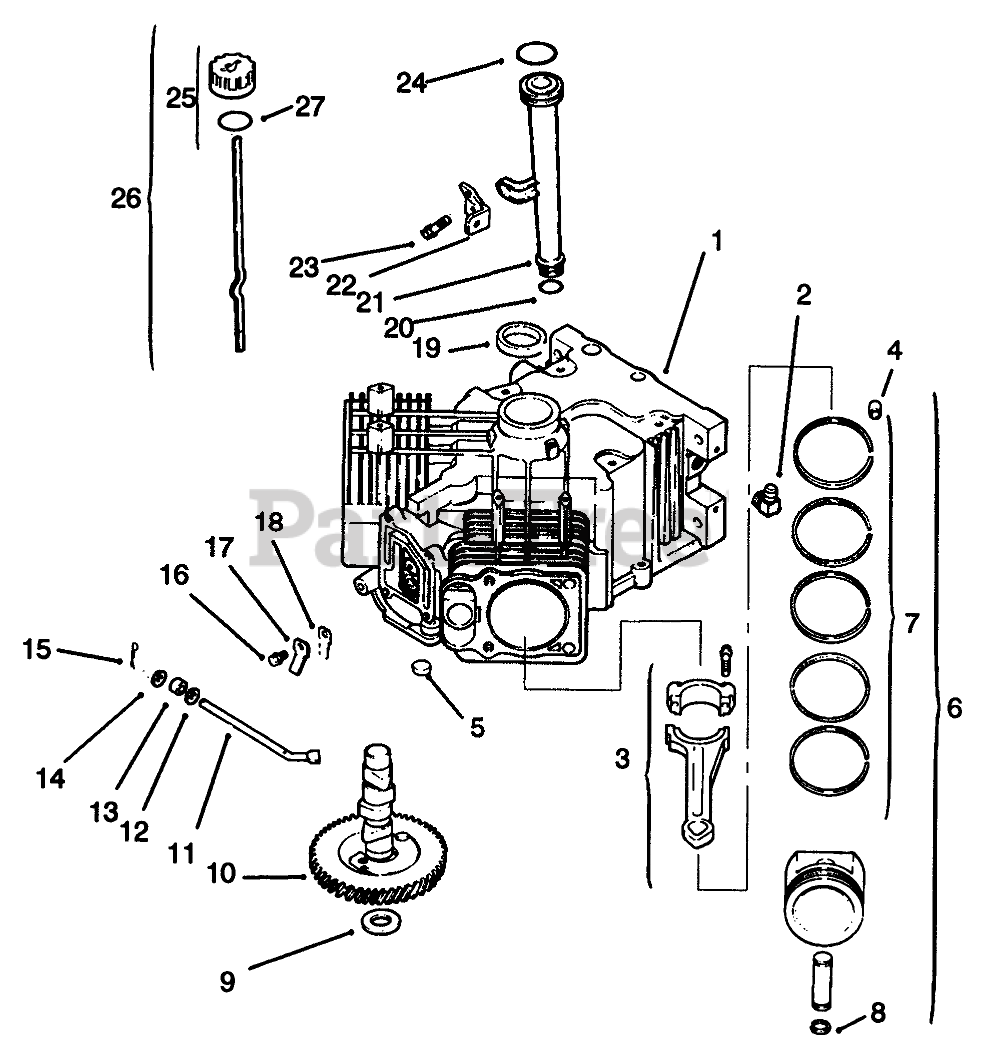

CRANKCASE Parts Diagram

  • Title

1

Toro 24_522_09

Short Block

$

$

Currently unavailable

2

25_155_02

Connector-90deg.

$

$

Not available

3

Toro 24_067_05

Connecting Rod STD

$

$

Currently unavailable

3

Toro 24_067_06

Connecting Rod .25

$

$

Currently unavailable

4

Toro 12_380_03

Pin-Dowel

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro 52_139_09

Cup

$

$

Currently unavailable

6

Toro 24_874_01

Piston ASM STD INC 4/7/8

$

$

Currently unavailable

6

Toro 24_874_02

Piston w/Ring Set (.25)

$

$

Currently unavailable

6

Toro 24_874_03

Piston w/Ring Set (.50)

$

$

Currently unavailable

7

Toro 24_108_01

Set-Ring (Std)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro 24_108_02

Ring Set (.25)

$

$

Currently unavailable

7

Toro 24_108_03

Ring Set (.50)

$

$

Currently unavailable

8

Toro 24_018_01

Retainer-Piston Pin

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

9

Toro 12_422_07

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_08

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_09

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_10

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_11

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_12

Shim-Camshaft

$

$

Currently unavailable

9

Toro 12_422_13

Shim-Camshaft

$

$

Currently unavailable

10

Toro 24_012_05

Camshaft

$

$

Currently unavailable

11

Toro 24_144_01

Shaft-Governor Cross

$

$

Currently unavailable

12

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

13

12_032_01

Seal

$

$

Not available

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 5

0

15

Toro 12_380_04

Pin-Hitch

$

$

Currently unavailable

16

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

17

24_018_04

Retainer-Reed

$

$

Not available

18

24_402_05

Beed-Breather

$

$

Not available

19

Toro 24_032_01

Seal-Oil

$

$

Currently unavailable

20

12_153_01

"O"Ring

$

$

Not available

21

12_123_04

Tube-Oil Fill

$

$

Not available

22

Toro 24_126_19

Bracket-Oil Fill Tube

$

$

Currently unavailable

23

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

24

12_153_02

"O"Ring-Upper Tube

$

$

Not available

25

24_038_04

Dipstick INC 26-27

$

$

Not available

26

Toro 25_755_13

Kit-Oil Cap INC 3

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

27

12_153_03

"O"Ring

Note: Included in a service kit or in an assembly

$

$

Not available

Toro 24_755_03

Gasket Set

Note: Not illustrated

$

$

Currently unavailable
