72102 (269-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) BLOWER HOUSING & BAFFLES Parts Diagram

Lawn & Garden Tractor

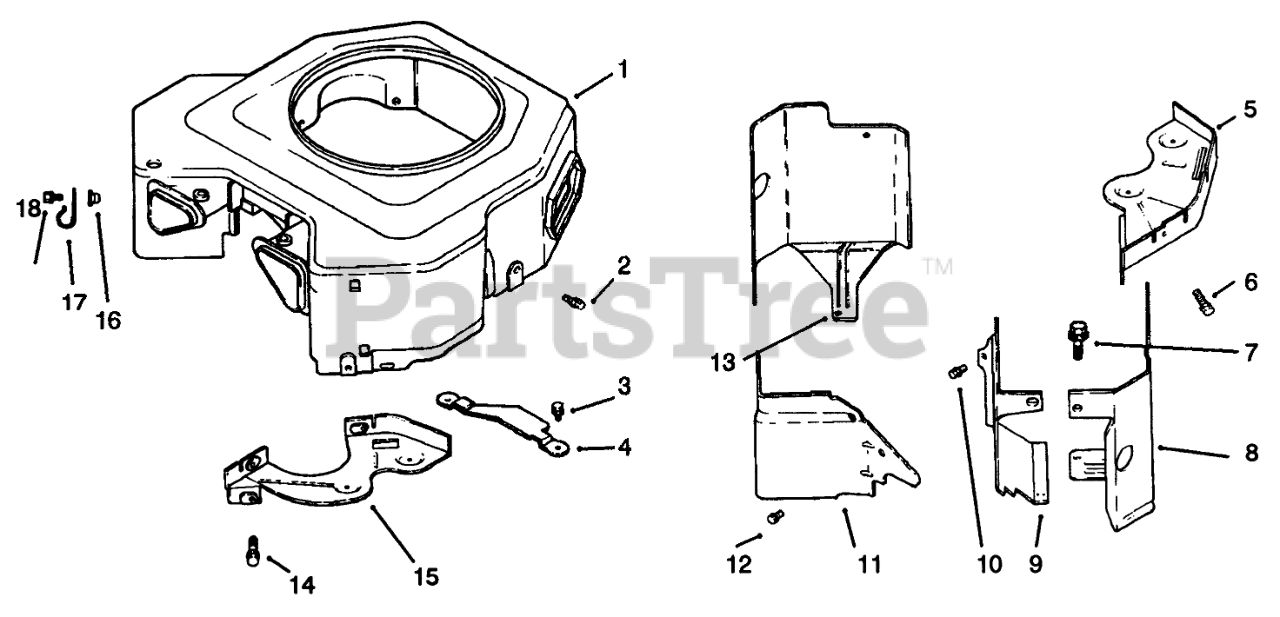

BLOWER HOUSING & BAFFLES Parts Diagram

  • Title

1

24_027_20

Housing-Blower ASM

$

$

Not available

2

Kohler M-0549016

Screw

$

$

Not available

3

Kohler M-0645016

Screw
(Superseded to M-645016)

$3.99

$

In Stock, Qty 13

0

4

24_314_05

Guard-Flywheel

$

$

Not available

5

Toro 24_146_02

Plate-Backing #2 side

$

$

Currently unavailable

6

Kohler M-0545020

Screw

$

$

Not available

7

Kohler M-0551016

Screw
(Superseded to M-551016-S)

$2.49

$

In Stock, only 2 left!

0

8

Toro 24_063_20

Baffle Cylinder #2 Side

$

$

Currently unavailable

9

24_063_23

Baffle-Valley #1 Side

$

$

Not available

10

Kohler M-0549010

Screw
(Superseded to M-545010-S)

$4.49

$

In Stock, only 3 left!

0

11

24_063_14

Baffle-Valley #2 Side

$

$

Not available

12

Kohler M-0549016

Screw

$

$

Not available

13

24_063_30

Baffle Cylinder #1 Side

$

$

Not available

14

Kohler M-0649016

Screw
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

15

Toro 24_146_08

Plate-Backing #1

$

$

Currently unavailable

16

Toro 24_100_01

Nut

$

$

Currently unavailable

17

47_154_01

Clamp

$

$

Not available

18

Toro 24_086_12

Screw

$

$

Currently unavailable

Toro 24_100_02

Nut INC W/Blower Housing

Note: Not illustrated

$

$

Currently unavailable

Toro 24_113_10

Decal-Horsepower

Note: Not illustrated

$

$

Currently unavailable

244_113_01

Decal-Horsepower

Note: Not illustrated

$

$

Not available

25_139_16

Plug INC W/Blower Housing

Note: Not illustrated

$

$

Not available
