72101 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) TRANSMISSION EATON MODEL 751-045 Parts Diagram

Yard Tractor

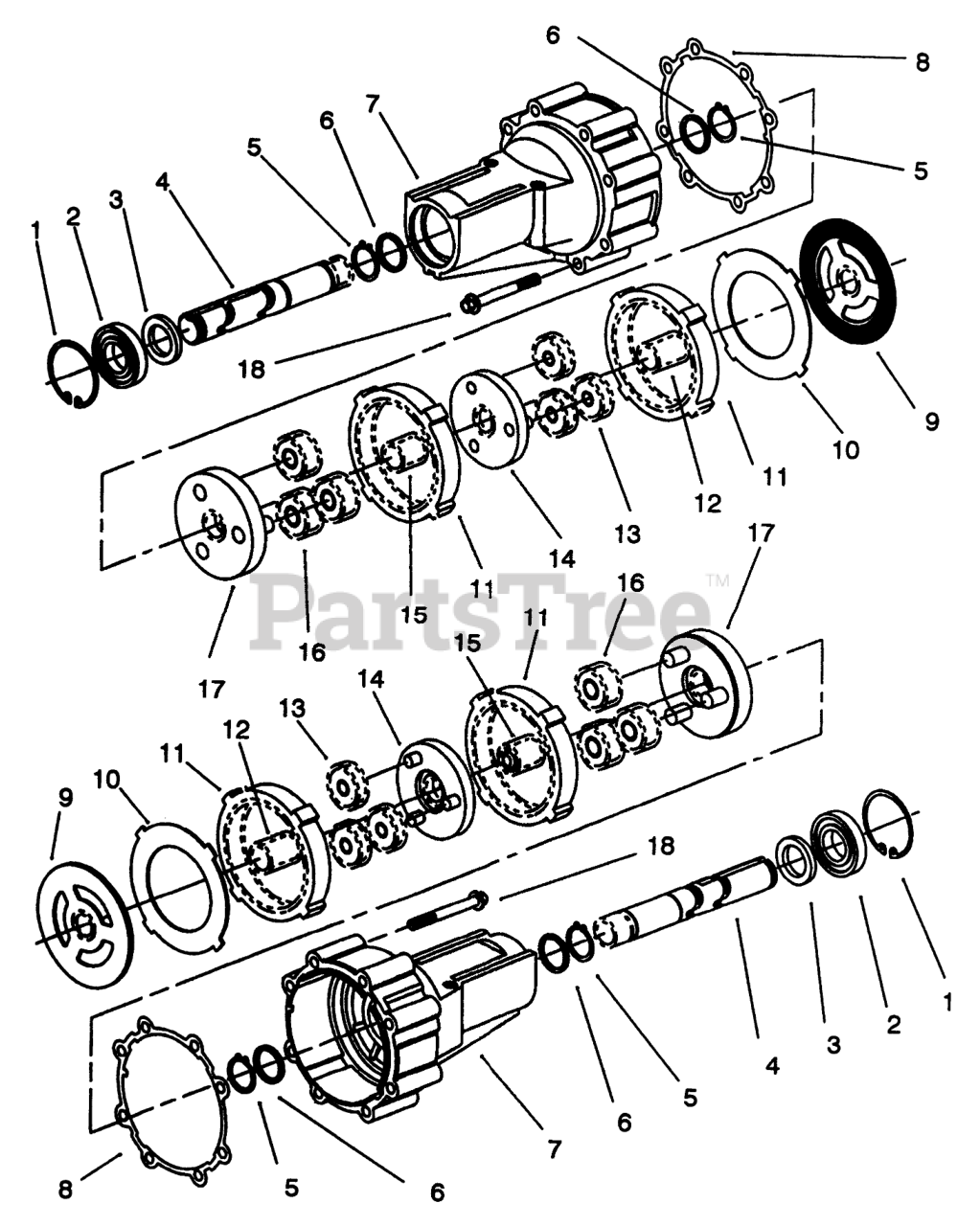

TRANSMISSION EATON MODEL 751-045 Parts Diagram

  • Title

1

Toro 88-2560

RETAINING RING

$

$

Not available

2

Toro 88-2570

BALL BEARING

$142.99

$

Usually ships in 3-6 days

0

3

Toro 88-2580

RADIAL LIP SEAL

$

$

Not available

4

Toro 88-2590

AXLE SHAFT

$

$

Not available

5

Toro 88-2600

RETAINING RING

$4.99

$

In Stock, only 2 left!

0

6

Toro 88-2610

THRUST WASHER

$

$

Not available

7

Toro 88-2620

AXLE HOUSING

$

$

Not available

Toro 88-2630

Housing Assembly-Axle (Incl. Ref. #1-7)

$

$

Not available

8

Toro 88-2640

AXLE HOUSING GASKET

$29.99

$

In Stock, only 1 left!

0

9

Toro 88-2650

REACTION PLATE

$

$

Not available

10

Toro 88-2660

BACKUP PLATE

$41.99

$

In Stock, only 1 left!

0

11

Toro 88-2670

57 TOOTH RING GEAR

$149.99

$

In Stock, only 2 left!

0

12

Toro 88-2680

15 TOOTH FIRST GEAR

$42.99

$

In Stock, only 1 left!

0

13

Toro 88-2690

21 TOOTH PLANET. GEAR

$74.99

$

In Stock, only 1 left!

0

14

Toro 88-2800

15 TOOTH PRIMARY CARR.

$337.99

$

In Stock, only 1 left!

0

15

Toro 88-2810

15 TOOTH SECOND GEAR

$47.99

$

In Stock, only 2 left!

0

16

Toro 88-2820

21 TOOTH SECOND GEAR

$

$

Not available

17

Toro 88-2830

SECONDARY CARRIER

$

$

Not available

18

Toro 88-2840

5/16 HEX HEAD SCREW

$

$

Not available
