72101 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) REAR WHEEL AND TRANSMISSION ASSEMBLY Parts Diagram

Yard Tractor

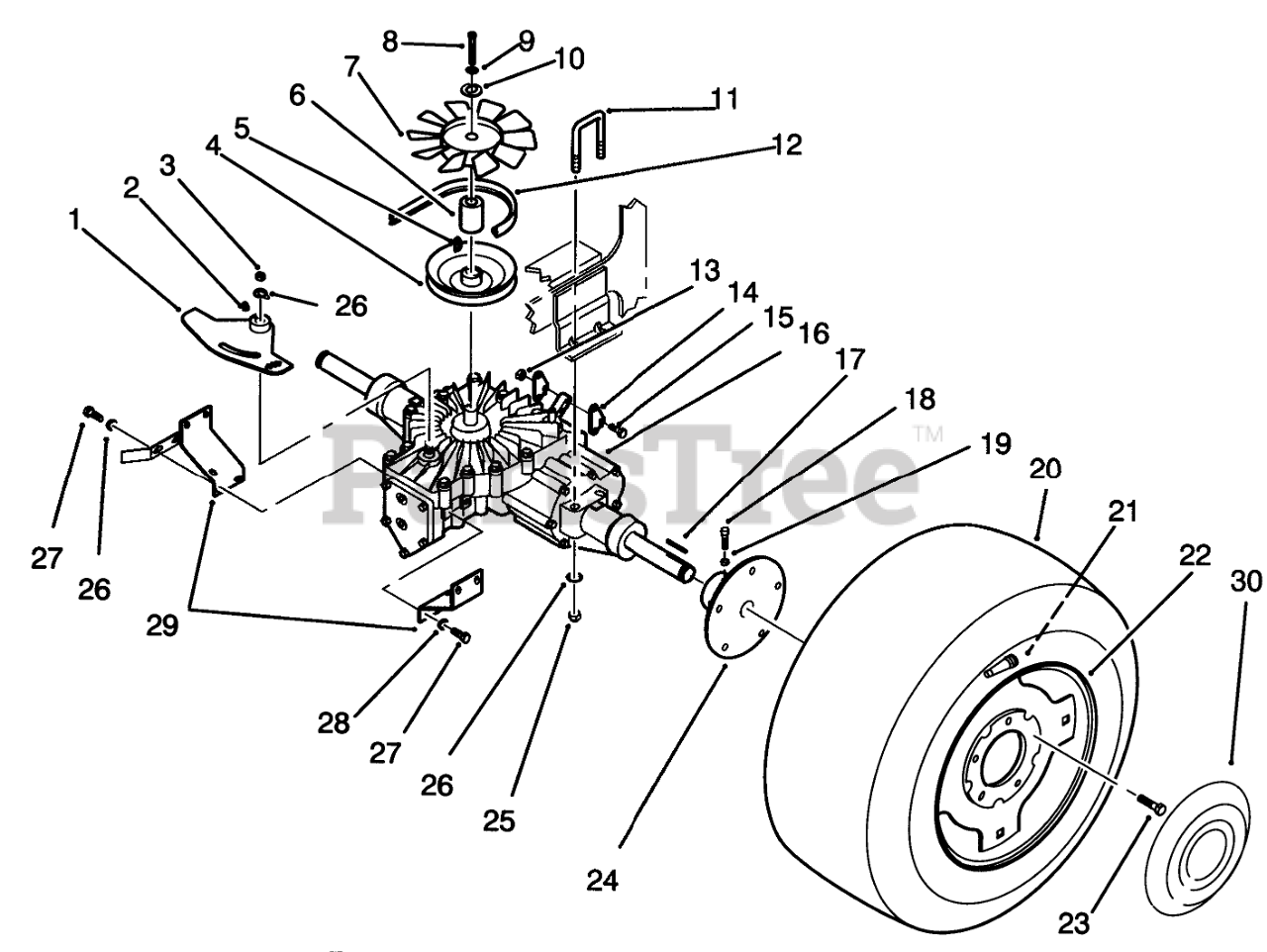

REAR WHEEL AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 115537

WLDMT-CONTROL ARM

$

$

Not available

2

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

3

Toro 103395

PINION SHAFT

$

$

Not available

4

Toro 78-6930

PULLEY-TRANS

$

$

Not available

5

Toro 937222

HARD HI PRO KEY

$3.99

$

In Stock, Qty 14

0

6

Toro 78-6870

SPACER

$

$

Not available

7

Toro 115271

FAN-7"

$38.99

$

In Stock, Qty 5

0

8

Toro 9080114

Screw
(Superseded to 3-2115)

$

$

Not available

9

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

11

Toro 79-2510

U-BOLT

$

$

Not available

12

Toro 114860

BELT-V

$44.99

$

In Stock, Qty 14

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 79-2970

BRACKET

$

$

Not available

15

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

0

16

Toro 79-2520

751-TRANSAXLE

$7497.99

$

Usually ships in 3-6 days

0

17

Toro 5-1336

KEY-SQUARE

$11.99

$

In Stock, Qty 5

0

18

Toro 3243-54

Screw-Set

$

$

Currently unavailable

19

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, only 3 left!

0

20

Toro 116744

TIRE
(Superseded to 116-5363)

$223.99

$

Usually ships in 3-6 days

0

Toro 7007

TUBE-INNER
(Superseded to 231-90)

Note: Not illustrated

$

$

Not available

21

Toro 5108

VALVE

$7.49

$

In Stock, Qty 9

0

22

Toro 78-1221

WHEEL

$

$

Not available

23

Toro 83-2720

BOLT-LUG

$4.49

$

In Stock, only 4 left!

0

24

Toro 105762

Hub-Rear
(Superseded to 93-3659-03)

$182.99

$

Usually ships in 3-6 days

0

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 78-1710

BRACKET R

$

$

Not available

30

Toro 114428

12"-HUB CAP LOGO

$

$

Not available

Toro 78-1271

Assembly-Tire and Rim (Incl. Ref. #20-22)

Note: Not illustrated

$

$

Not available
