72101 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) IDLER AND PEDAL SHAFT ASSEMBLY Parts Diagram

Yard Tractor

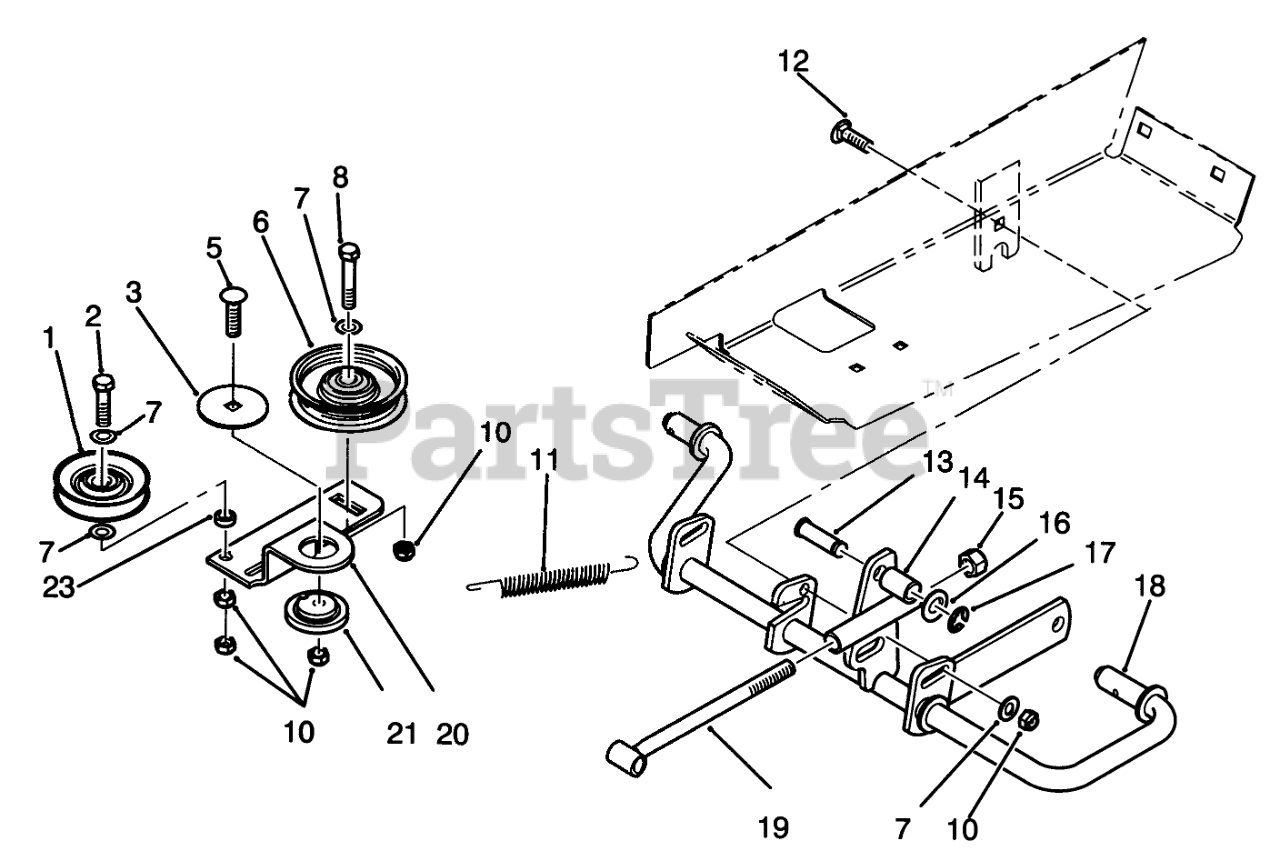

IDLER AND PEDAL SHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 1623

Pulley
(Superseded to 92-7102)

$62.99

$

In Stock, only 1 left!

0

2

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 111419

WASHER-BEARING

$44.99

$

Usually ships in 3-6 days

0

5

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

6

Toro 112425

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 1 left!

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 79-7530

SPRING - CLUTCH

$31.99

$

Usually ships in 3-6 days

0

12

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

13

Toro 79-1250

PIN

$17.99

$

Usually ships in 3-6 days

0

14

Toro 78-7390

TUBE

$

$

Not available

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

18

Toro 79-3401

Shaft
(Superseded to 79-3401-03)

$310.99

$

Usually ships in 3-6 days

0

19

Toro 78-7360

ROD

$

$

Not available

20

Toro 78-6771

ARM-IDLER

$

$

Not available

21

Toro 111418

BUSHING

$27.99

$

Usually ships in 3-6 days

0

23

Toro 104525

SPACER
(Superseded to 93-3658)

$6.49

$

Usually ships in 3-6 days

0
