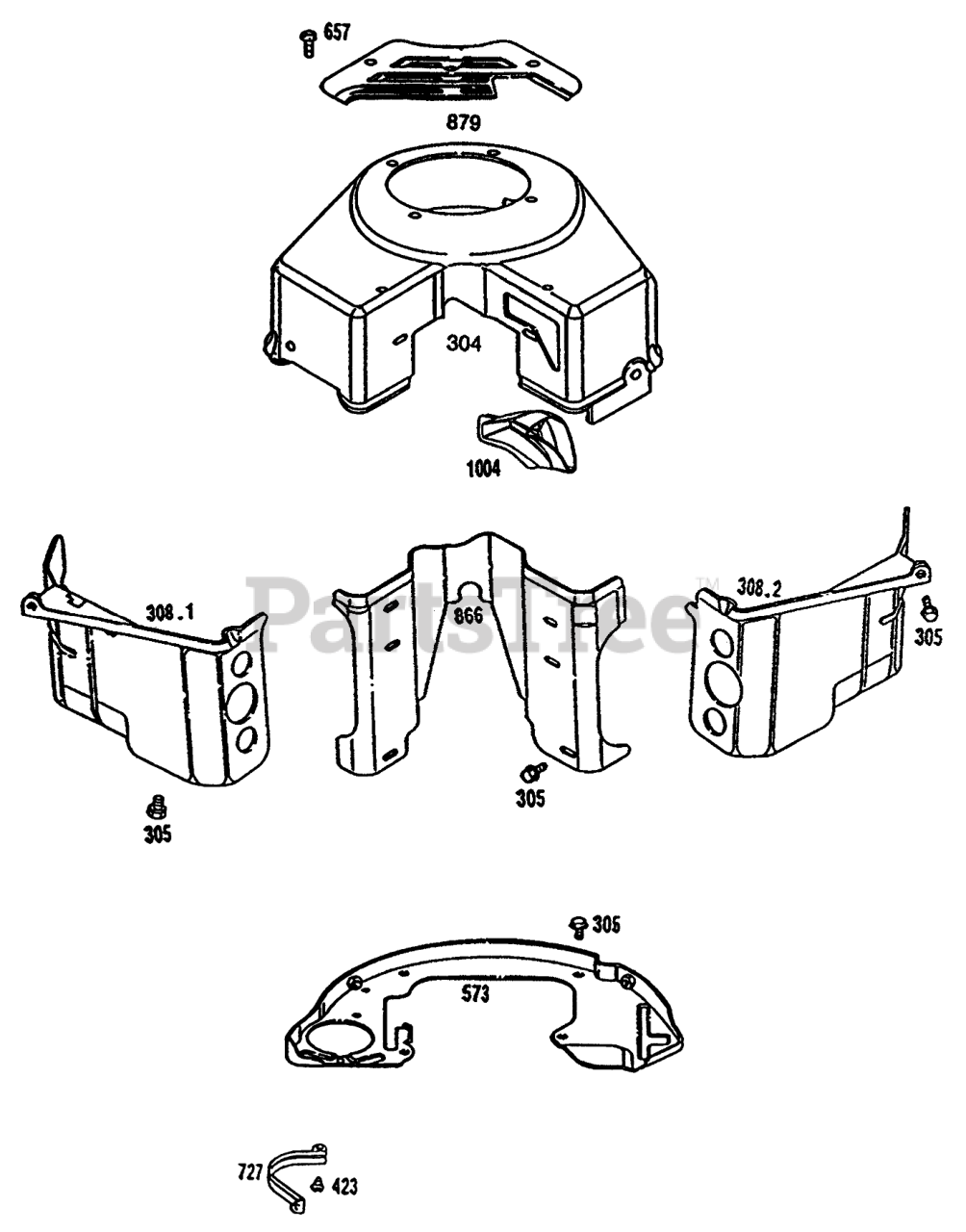

72101 (246-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) ENGINE TORO POWER PLUS Parts Diagram

Yard Tractor

ENGINE TORO POWER PLUS Parts Diagram

  • Title
265

Toro 77-8280

CLAMP - CASING
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

304

Toro 92-0553

HOUSING - BLOWER

$712.99

$

Usually ships in 3-6 days

0

305

Toro 78-4300

Screw

$

$

Not available

308.1

Toro 92-0554

Cover-Air Guide #1 Cylinder

$

$

Not available

308.2

Toro 92-0555

Cover-Air Guide #2 Cylinder

$

$

Not available

423

Toro 78-4500

Screw

$

$

Not available

573

Toro 78-4670

Seal-Filler Tube

$

$

Not available

657

Toro 78-4800

Screw

$

$

Not available

727

Toro 78-4850

Sheild

$

$

Not available

866

Toro 92-0556

Valley Cover-Air Guide

$

$

Currently unavailable

879

Toro 92-0557

COVER - CARBURETOR

$

$

Not available

1004

Toro 92-0558

TUBE - AIR INLET

$

$

Not available
