7210 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1959) MODELS 5210 AND 7210 MOWERS Parts Diagram

Walk-Behind Mower

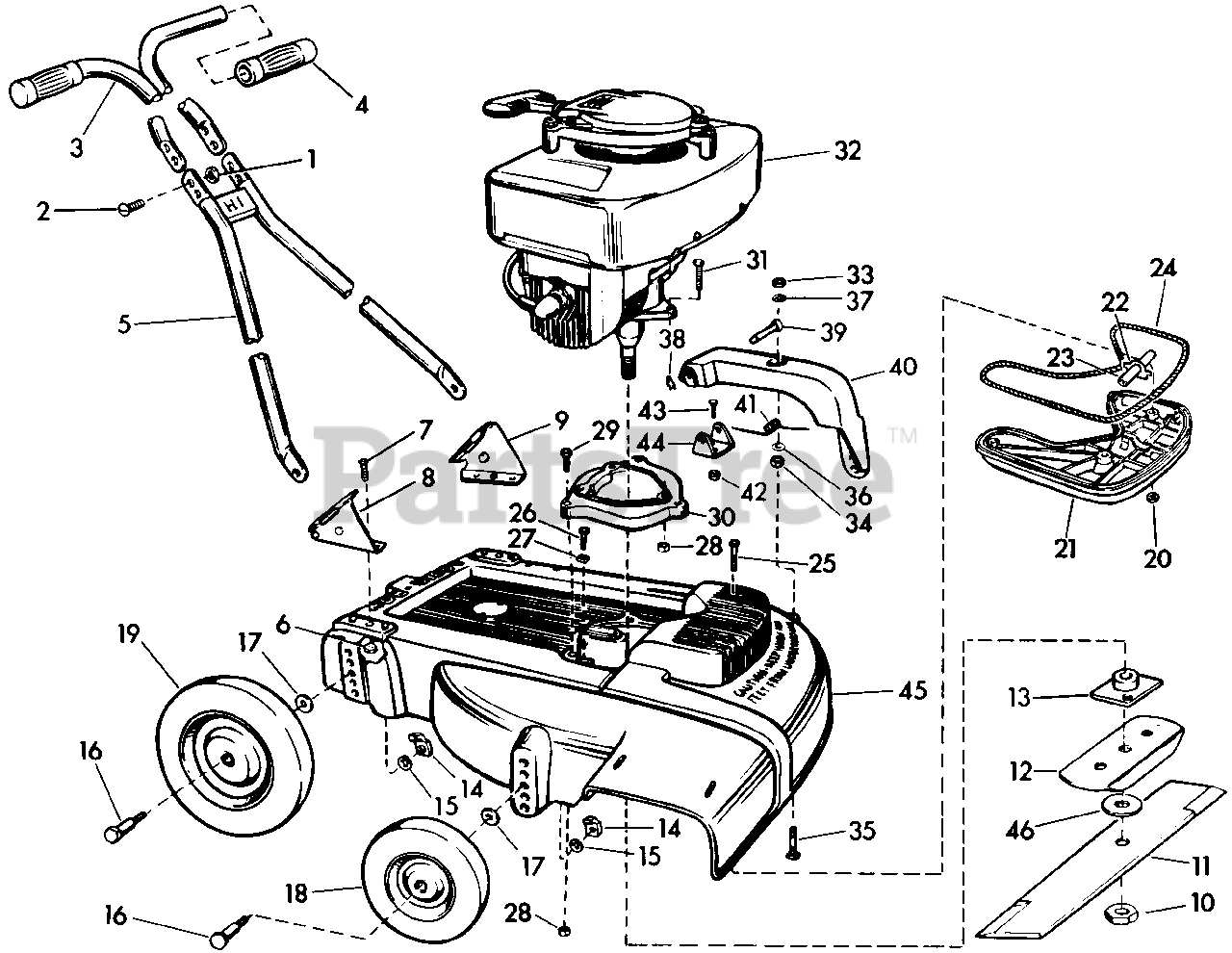

MODELS 5210 AND 7210 MOWERS Parts Diagram

  • Title

1

Lawn-Boy 602201

Nut-Handle

$

$

Not available

2

Lawn-Boy 602025

Screw-Handle

$

$

Not available

3

Lawn-Boy 677354

Handle Assembly-Top

$

$

Not available

4

Lawn-Boy 603025

Grip-Handle

$

$

Not available

5

Lawn-Boy 677355

Handle Assembly-Bottom

$

$

Not available

6

Lawn-Boy 602830

Nut-Handle Bracket

$

$

Not available

7

Lawn-Boy 602693

Screw-Handle Bracket

$

$

Not available

8

Lawn-Boy 677118

Bracket-Handle, Right

$

$

Not available

9

Lawn-Boy 677117

Bracket-Handle, Left

$

$

Not available

10

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

11

Lawn-Boy 602752

Blade-18"

$

$

Not available

11

Lawn-Boy 602754

Blade-21"

$

$

Currently unavailable

12

Lawn-Boy 603541

Stiffener-Blade

$

$

Not available

13

Lawn-Boy 677525

Collar and Plate Assembly

$51.99

$

In Stock, only 3 left!

0

14

Lawn-Boy 603110

Nut-Wheel

$

$

Not available

15

Lawn-Boy 120177

Washer-Lock, Wheel

$

$

Not available

16

Lawn-Boy 602680

Bolt-Shoulder, Wheel

$

$

Not available

17

Lawn-Boy 602627

Washer-Plain

$

$

Not available

18

Lawn-Boy 677533

Wheel Assembly, 6 x 1.50

$

$

Not available

19

Lawn-Boy 677534

Wheel Assembly, 8 x 1.75

$

$

Not available

20

Lawn-Boy 602315

Nut-Muffler

$4.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 603142

Muffler

$

$

Currently unavailable

22

Lawn-Boy 603149

Gasket-Internal, Tube

$

$

Currently unavailable

23

Lawn-Boy 603150

Tube-Internal, Muffler

$

$

Currently unavailable

24

Lawn-Boy 602645

Gasket-Muffler

$

$

Not available

25

Lawn-Boy 603151

Bolt-Muffler, Long

$

$

Not available

26

Lawn-Boy 602909

Bolt-Muffler, Short

$

$

Currently unavailable

27

Lawn-Boy 602910

Gasket-Muffler Bolt

$

$

Currently unavailable

28

Lawn-Boy 602830

Nut-Nylok, Sub Base and Engine Mounting

$

$

Not available

29

Lawn-Boy 602942

Screw-Sub Base Mounting

$

$

Currently unavailable

30

Lawn-Boy 602907

Sub Base

$

$

Currently unavailable

31

Lawn-Boy 603014

Bolt-Engine Mounting

$

$

Not available

32

Lawn-Boy 677656

Engine-Model C-14

$

$

Not available

33

Lawn-Boy 602201

Nut-Nylok, Level-Ride Shoulder Bolt

$

$

Not available

34

Lawn-Boy 306390

Nut-Level-Ride Bolt

$

$

Currently unavailable

35

Lawn-Boy 602902

Bolt-Level-Ride Arm

$

$

Currently unavailable

36

Lawn-Boy 602903

Washer-Level-Ride Arm

$

$

Currently unavailable

37

Lawn-Boy 603113

Washer-Level-Ride Arm, Fiber

$

$

Currently unavailable

38

Lawn-Boy 602901

Pin-Hair, Level-Ride Arm

$

$

Currently unavailable

39

Lawn-Boy 602900

Pin-Level-Ride Arm Brkt.

$

$

Currently unavailable

40

Lawn-Boy 602898

Arm-Level-Ride

$

$

Currently unavailable

41

Lawn-Boy 603015

Spring-Level-Ride Arm

$

$

Currently unavailable

42

Lawn-Boy 602201

Nut-Nylok, Level-Ride Bracket

$

$

Not available

43

Lawn-Boy 603011

Screw-Level-Ride Arm Bracket

$

$

Currently unavailable

44

Lawn-Boy 602890

Level-Ride Arm Bracket

$

$

Currently unavailable

45

Lawn-Boy 602891

Housing-18" Model 5210

$

$

Currently unavailable

45

Lawn-Boy 602892

Housing-21" Model 7210

$

$

Currently unavailable

46

Lawn-Boy 602178

Washer-Fiber (21" only)

$

$

Not available
