721 E (31AE295-100) - Cub Cadet 21" Snow Thrower Engine (2002) Starter Parts Diagram

21" Snow Thrower Engine

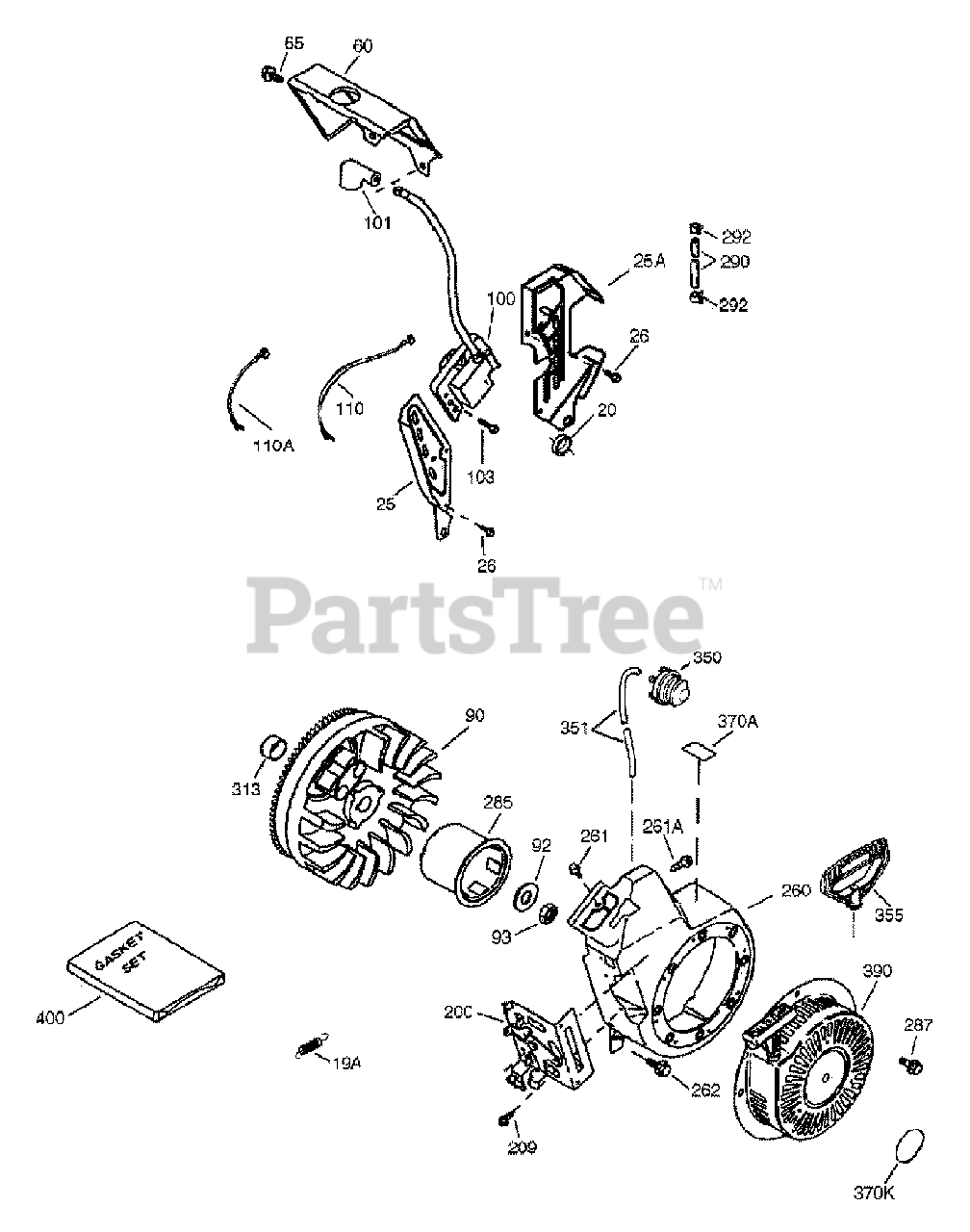

Starter Parts Diagram

  • Title
19A

Cub Cadet TC-36750

Governor Spring

$5.49

$

Usually ships in 3-12 days

0

20

$

$

Not available

25A

Cub Cadet TC-36869

Air Baffle (Right)

$

$

Not available

25

Cub Cadet TC-36621

Air Baffle (Left)

$

$

Not available

26

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

60

Cub Cadet TC-36623A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

65

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

90

$

$

Not available

92

Cub Cadet TC-650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Cub Cadet TC-650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Cub Cadet TC-34443C

Solid State Ignition
(Superseded to TC-34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 4 left!

0

103

Cub Cadet TC-651007

Screw, T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

110

Cub Cadet TC-37682

Ground Wire

$3.49

$

In Stock, only 2 left!

0

110A

Cub Cadet TC-37685

Ground Wire

$

$

Not available

200

Cub Cadet TC-37123

Control Bracket

Note: (Incl. 206)

$28.99

$

In Stock, only 3 left!

0

209

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

260

Cub Cadet TC-37705

Blower Housing
(Superseded to TC-37705A)

$

$

Not available

261A

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

261

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

262

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

285

Cub Cadet TC-35985B

Starter Cup
(Superseded to TC-35985C)

$13.99

$

In Stock, only 1 left!

0

287

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

290

Cub Cadet TC-30705

Fuel Line

$16.99

$

In Stock, only 4 left!

0

292

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 10

0

313

$1.99

$

In Stock, only 2 left!

0

350

Cub Cadet TC-570682A

Primer Assembly

$10.99

$

In Stock, Qty 7

0

351

Cub Cadet TC-32180C

Primer Line

$6.99

$

In Stock, Qty 9

0

355

Cub Cadet TC-590574

Starter Handle (Mitten Grip)

$5.49

$

In Stock, only 1 left!

0

370A

Cub Cadet TC-36261

Lubrication Decal

$

$

Not available

370K

Cub Cadet TC-36695

Starter Decal

$2.49

$

In Stock, only 2 left!

0

390

Cub Cadet TC-590765A

Rewind Starter

$54.99

$

Usually ships in 3-12 days

0

400

Cub Cadet TC-36720

Gasket Set

Note: (Incl. items marked PK in notes)

$10.99

$

Usually ships in 3-12 days

0
